2019 Yamaha MT-10 Steering OEM Parts Diagram

Submodel MT10 - MT10KCGY - 2019

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STEERING

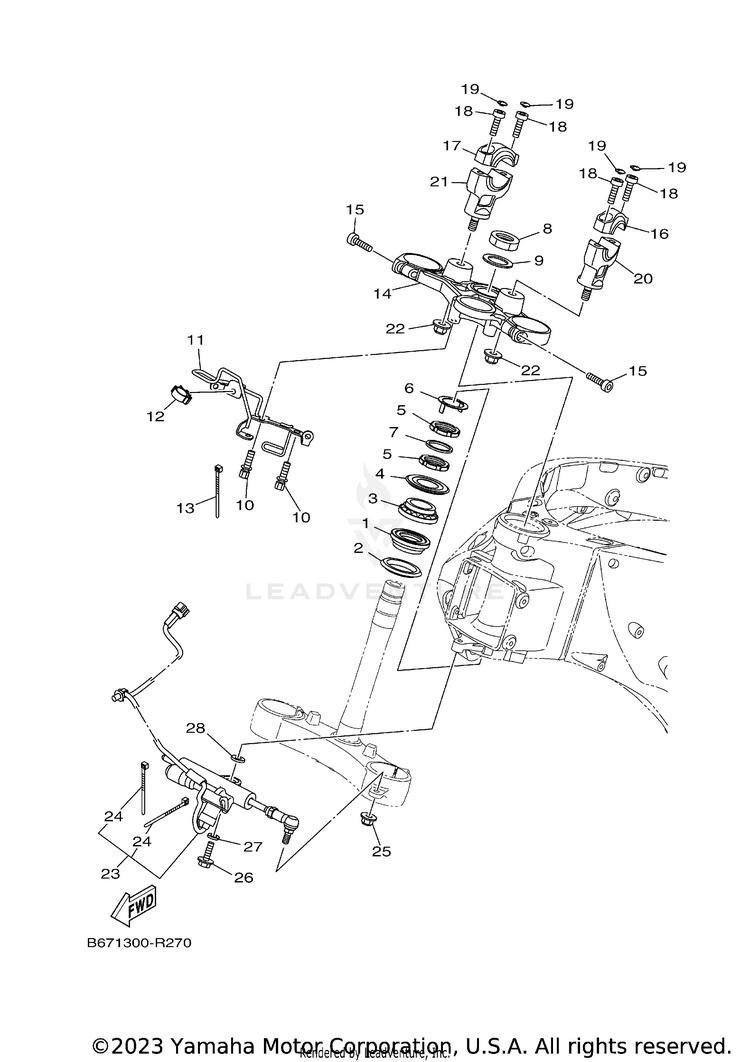

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
193399-99957-00BEARING$76.99$60.05Usually ships in 7-10 business days
23FV-23462-00-00SEAL, STEERING$26.99$22.13Usually ships in 7-10 business days
393399-99932-00BEARING$69.99$54.59Usually ships in 7-10 business days
44XV-23415-01-00COVER, BALL RACE 1$26.99$22.13Usually ships in 7-10 business days
590179-30691-00NUT$36.99$30.33Usually ships in 7-10 business days
64XV-23418-00-00WASHER, SPECIAL$18.99$15.57Usually ships in 7-10 business days
790202-30235-00WASHER, PLATE$9.49$8.541 In-Stock
890170-28419-00NUT$44.99$36.892 In-Stock
990201-281U8-00WASHER, PLATE$12.49$9.742 In-Stock
1090109-08196-00

(replaces part #
90109-08195-00)

BOLT$9.49$7.4010+ In-Stock
11B67-23389-00-00GUIDE, CABLE$88.99$69.41Usually ships in 7-10 business days
1290464-16006-00CLAMP$10.49$8.182 In-Stock
1390465-10098-00CLAMP$2.80$2.417 In-Stock
14B67-23435-00-00CROWN, HANDLE$208.99$163.01Usually ships in 7-10 business days
1591314-08030-00BOLT, HEXAGON SOCKET HEAD$2.55$2.199 In-Stock
162BS-23441-00-00HOLDER, HANDLE UPPER$41.99$34.43Usually ships in 7-10 business days
172BS-2344A-00-00HOLDER, HANDLE UPPER 1$41.99$34.43Usually ships in 7-10 business days
1891314-08030-00BOLT, HEXAGON SOCKET HEAD$2.55$2.199 In-Stock
1990338-08163-00PLUG (CROME)$3.75$3.2210+ In-Stock
20B67-24847-01-00HOLDER 1$102.99$80.33Usually ships in 7-10 business days
21B67-24848-01-00HOLDER 2$97.99$76.43Usually ships in 7-10 business days
2295602-10200-00NUT, S/L FLANGE$2.70$2.3210+ In-Stock
23B67-23490-00-00HANDLEBAR SHIMMY DAMPER ASSY$922.99$770.16Usually ships in 7-10 business days
241UA-82591-00-00BAND$5.49$4.2810+ In-Stock
2595602-08200-00NUT, SELF-LOCKING$3.20$2.7510+ In-Stock
2695812-08030-00

(replaces part #
90105-08153-00)

BOLT, FLANGE$3.81$3.285 In-Stock
2790201-08649-00

(replaces part #
90201-08676-00)

WASHER, PLATE$10.49$8.1810+ In-Stock
285VY-26398-00-00WASHER$15.49$12.70Usually ships in 7-10 business days
