2019 Yamaha WR250F Radiator Hose OEM Parts Diagram

Submodel WR250FK - 2019

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

RADIATOR HOSE

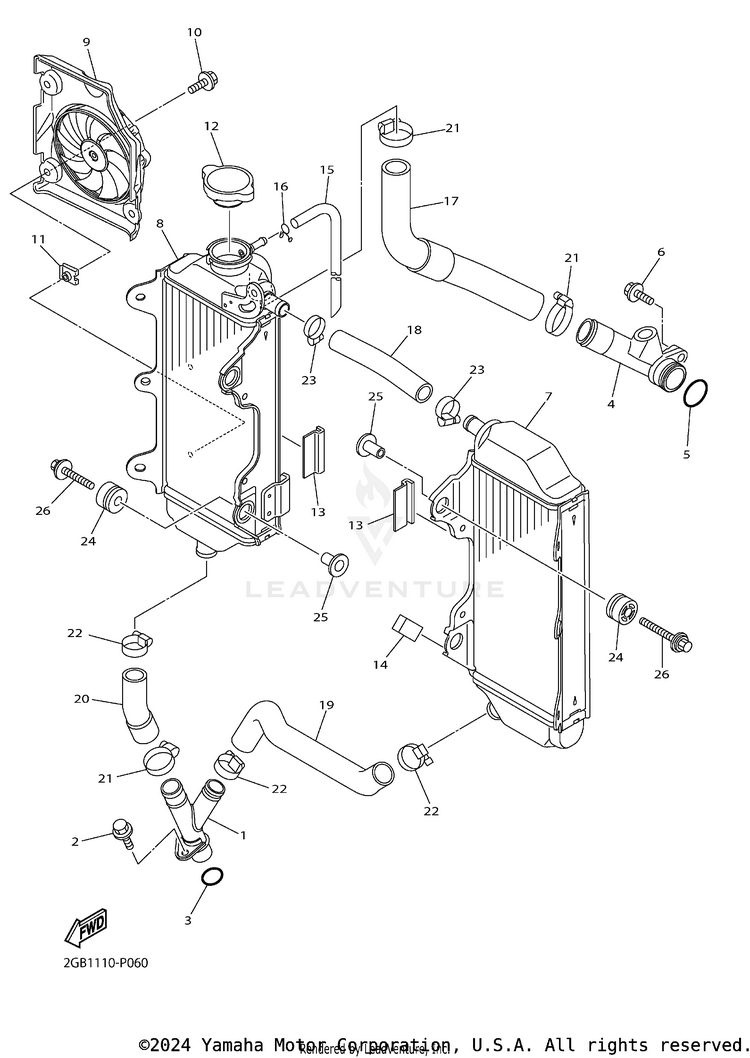

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11SL-12482-00-00PIPE 2$70.99$55.3710+ In-Stock
295022-06012-00BOLT, FLANGE$3.55$3.0510+ In-Stock
393210-16500-00O-RING$8.49$6.6210+ In-Stock
41SM-12446-00-00JOINT$43.99$34.316 In-Stock
593210-16275-00O-RING$3.55$3.0510+ In-Stock
695E32-06020-00BOLT, FLANGE DEEP RE$0.95$0.829 In-Stock
71SL-1240A-00-00RADIATOR ASSY$352.99$275.334 In-Stock
82GB-12461-00-00RADIATOR COMP$332.99$259.73
92GB-12405-00-00BLOWER ASSY$157.99$123.23Not Shipping
102GB-12615-00-00BOLT$3.60$3.10Not Shipping
115SL-12671-00-00NUT 1$7.49$5.8410+ In-Stock
125SL-12462-01-00

(replaces part #
5SL-12462-00-00)

CAP, RADIATOR$35.99$28.077 In-Stock
1333D-12465-00-00DAMPER, RADIATOR$15.49$12.0810+ In-Stock
145YT-24665-00-00DAMPER$8.49$6.623 In-Stock
1591A20-05080-00

(replaces part #
91A20-05065-00)

TUBE, FLEXIBLE VINYL$16.49$12.8610+ In-Stock
1690467-090A2-00CLIP$4.75$4.0810+ In-Stock
172GB-12576-00-00HOSE 1$16.49$12.865 In-Stock
181SL-12577-00-00HOSE 2$10.99$8.572 In-Stock
192GB-12578-01-00HOSE 3$15.49$12.084 In-Stock
202GB-12579-00-00HOSE 4$9.49$7.405 In-Stock
2190450-28001-00HOSE CLAMP ASSY$16.49$12.8610+ In-Stock
2290450-22M14-00

(replaces part #
90450-25001-00)

HOSE CLAMP ASSY$17.49$13.6410+ In-Stock
2390450-18M09-00

(replaces part #
90450-22001-00)

HOSE CLAMP ASSY$11.49$10.0710+ In-Stock
2490480-15012-00GROMMET$8.49$6.6210+ In-Stock
2590387-06065-00COLLAR$13.49$10.5210+ In-Stock
2690119-06262-00BOLT, WITH WASHER$9.49$7.4010+ In-Stock
