2019 Yamaha WR250F Stand Footrest OEM Parts Diagram

Submodel WR250FK - 2019

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STAND FOOTREST

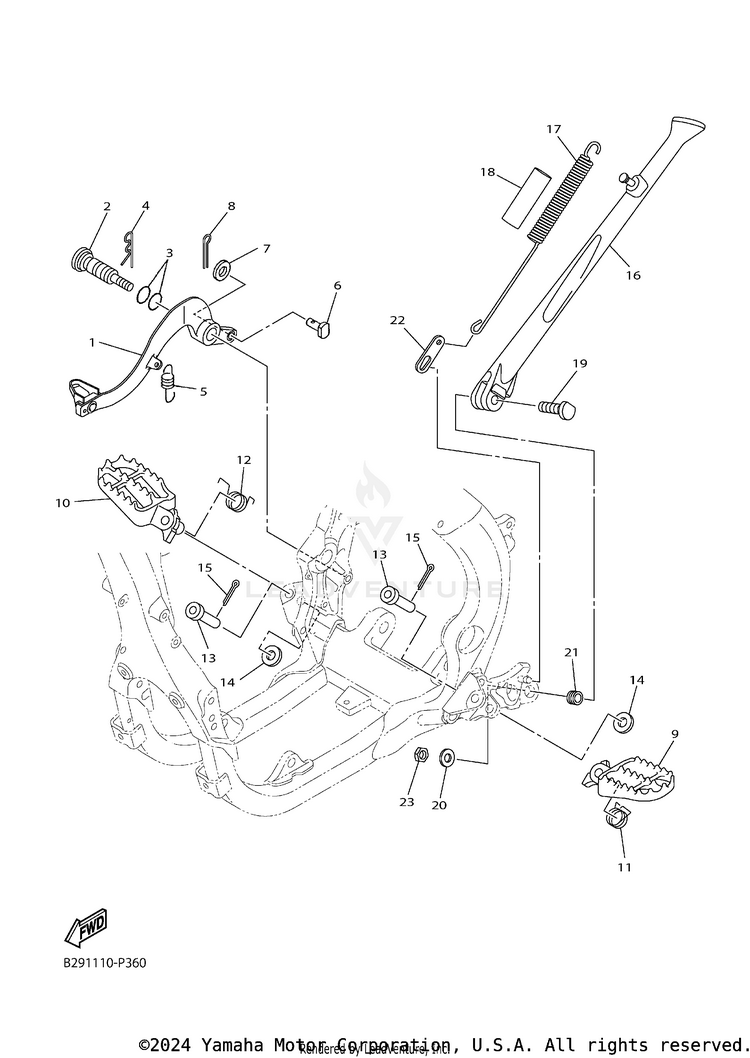

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
117D-27200-51-00PEDAL, BRAKE$100.99$78.77
217D-27217-00-00BOLT$32.99$25.7310+ In-Stock
393210-11073-00O-RING$8.49$6.6210+ In-Stock
490468-16001-00CLIP$6.49$5.0610+ In-Stock
590506-20031-00SPRING, TENSION$6.49$5.0610+ In-Stock
690240-08120-00PIN, CLEVIS$14.49$11.3010+ In-Stock
790201-08044-00WASHER, PLATE$9.49$7.4010+ In-Stock
891490-20015-00

(replaces part #
91402-20012-00)

PIN. COTTER$2.20$1.8910+ In-Stock
95XC-27411-M2-00FOOTREST 1$131.99$102.955 In-Stock
105XC-27421-M2-00FOOTREST 2$131.99$102.951 In-Stock
1190508-28015-00SPRING, TORSION$10.49$8.1810+ In-Stock
1290508-28018-00SPRING, TORSION$8.49$6.6210+ In-Stock
1390240-10004-00PIN, CLEVIS$15.49$12.0810+ In-Stock
1490201-10032-00WASHER, PLATE$1.25$1.0810+ In-Stock
1591490-25020-00

(replaces part #
91402-25015-00)

PIN. COTTER$3.45$2.9710+ In-Stock
165UM-27311-E1-00STAND, SIDE$151.99$118.552 In-Stock
1790506-30005-00SPRING, TENSION$23.99$18.7110+ In-Stock
1890445-212G3-00

(replaces part #
90445-217G3-00)

HOSE (L95)$9.49$7.4010+ In-Stock
1990109-10026-00BOLT$6.49$5.109 In-Stock
2090201-10045-00WASHER, PLATE$9.49$7.4010+ In-Stock
2190387-1003G-00COLLAR$23.99$18.7110+ In-Stock
225UM-27315-E0-00LINK, SIDE STAND$3.70$3.1810+ In-Stock
2390185-10018-00NUT, SELF-LOCKING$9.49$7.4010+ In-Stock
