2019 Yamaha YZ250X Electrical 1 OEM Parts Diagram

Submodel YZ250X - YZ250XK - 2019

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

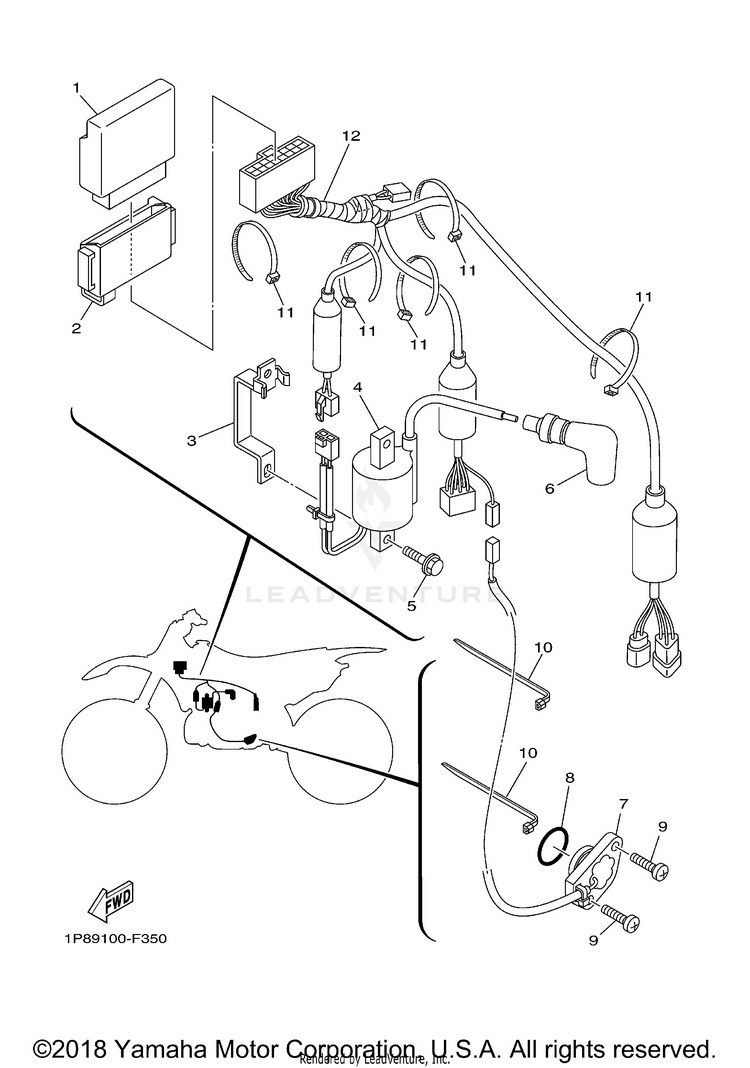

ELECTRICAL 1

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1BF1-85540-03-00

(replaces part #
BF1-85540-00-00)

C.D.I. UNIT ASSY$327.99$255.835 In-Stock
21P8-85546-00-00BAND$19.99$15.592 In-Stock
31P8-8231U-10-00CORE, SIDE$21.99$17.152 In-Stock
41P8-82310-03-00

(replaces part #
1P8-82310-00-00)

IGNITION COIL ASSY$123.99$96.717 In-Stock
590105-06060-00BOLT, FLANGE$4.20$3.616 In-Stock
68DG-82370-00-00PLUG CAP ASSY$53.99$42.1110+ In-Stock
71P8-82540-02-00

(replaces part #
1P8-82540-00-00)

NEUTRAL SWITCH ASSY$64.99$50.692 In-Stock
893210-21001-00O-RING$6.49$5.0610+ In-Stock
998902-05014-00

(replaces part #
90154-05022-00)

SCREW, BIND$1.85$1.5910+ In-Stock
1090464-15152-00

(replaces part #
90465-13275-00)

CLAMP$6.49$5.068 In-Stock
1190464-15195-00CLAMP$4.41$3.7910+ In-Stock
121P8-82509-23-00

(replaces part #
1P8-82509-21-00)

WIRE, SUB LEAD$140.99$109.972 In-Stock
