2020 Yamaha Star Venture Fender OEM Parts Diagram

Submodel STAR VENTURE - XV19FLL - 2020

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FENDER

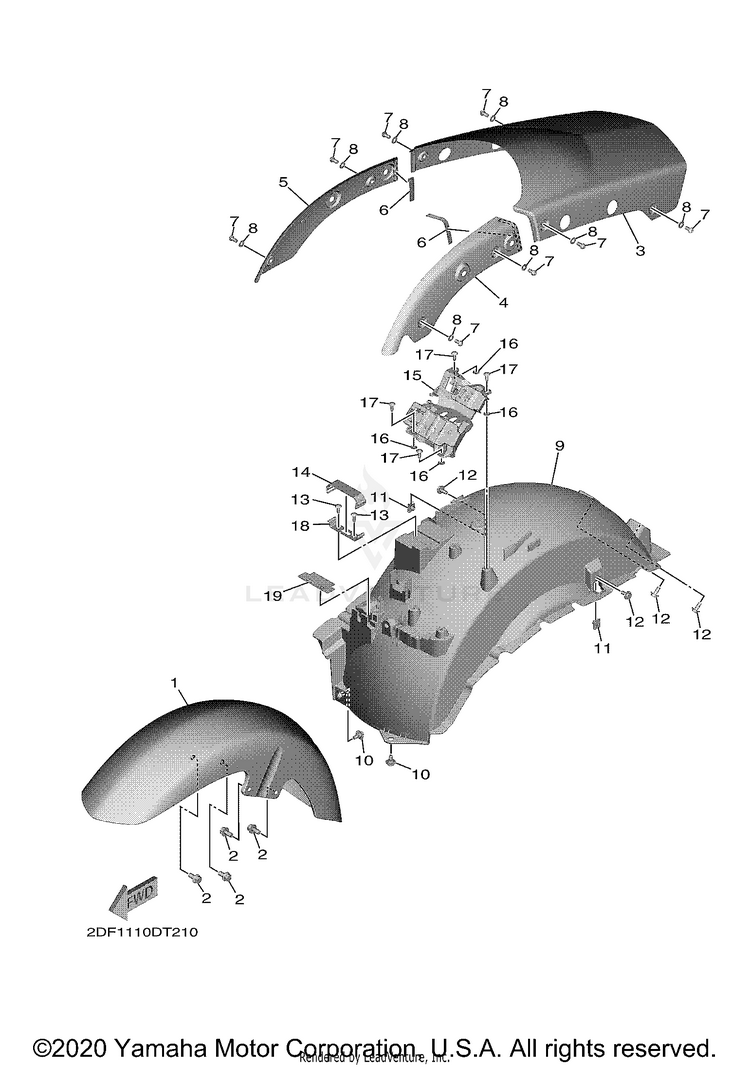

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12DF-YK215-00-P3FRONT FENDER COMP. | UR FOR VPBC5$491.99$408.68Usually ships in 7-10 business days
12DF-YK215-00-P0FRONT FENDER COMP. | UR FOR DNMG$581.99$469.54Usually ships in 7-10 business days
295D32-08016-00BOLT, FLANGE DEEP RECESS$1.60$1.44Usually ships in 7-10 business days
32DF-YK216-00-P3REAR FENDER COMP. | UR FOR VPBC5$601.99$504.11Usually ships in 7-10 business days
32DF-YK216-00-P0REAR FENDER COMP. | UR FOR DNMG$601.99$504.11Usually ships in 7-10 business days
42DF-YK263-00-P3CLEAR STAY, FENDER 1 | UR FOR VPBC5$302.99$251.81Usually ships in 7-10 business days
42DF-YK263-00-P0CLEAR STAY, FENDER 1 | UR FOR DNMG$280.99$222.78Usually ships in 7-10 business days
52DF-YK264-00-P3CLEAR STAY, FENDER 2 | UR FOR VPBC5$302.99$251.81Usually ships in 7-10 business days
52DF-YK264-00-P0CLEAR STAY, FENDER 2 | UR FOR DNMG$280.99$222.78Usually ships in 7-10 business days
613S-28237-00-00DAMPER 3$8.49$7.64Usually ships in 7-10 business days
792014-06012-00BOLT, BUTTON HEAD$3.55$3.055 In-Stock
892990-06200-00

(replaces part #
92902-06200-00)

WASHER, PLAIN-$1.2810+ In-Stock
92DF-21629-00-00GUARD, MUD$149.99$119.00Usually ships in 7-10 business days
1090109-06322-00BOLT$8.49$7.64Usually ships in 7-10 business days
1190183-06069-00

(replaces part #
90183-06053-00)

NUT, SPRING$7.49$5.8410+ In-Stock
1290119-06242-00BOLT, WITH WASHER$8.49$6.6210+ In-Stock
1397702-50016-00SCREW, TAPPING$2.60$2.249 In-Stock
1426L-82131-00-00

(replaces part #
122-82131-00-00)

BAND, BATTERY$8.49$6.627 In-Stock
152DF-21688-00-00BRACKET, REAR STAY$30.99$25.41Usually ships in 7-10 business days
162DF-21616-00-00WASHER, SPECIAL 2$1.15$1.04Usually ships in 7-10 business days
1790269-05055-00RIVET$9.49$7.4010+ In-Stock
182DF-2161A-00-00BRACKET 3$6.49$5.84Usually ships in 7-10 business days
192DF-21669-00-00SEAL$2.85$2.56Usually ships in 7-10 business days
