2020 Yamaha V-Max Camshaft & Chain OEM Parts Diagram

Submodel VMAX - VMX17LCGY - 2020

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

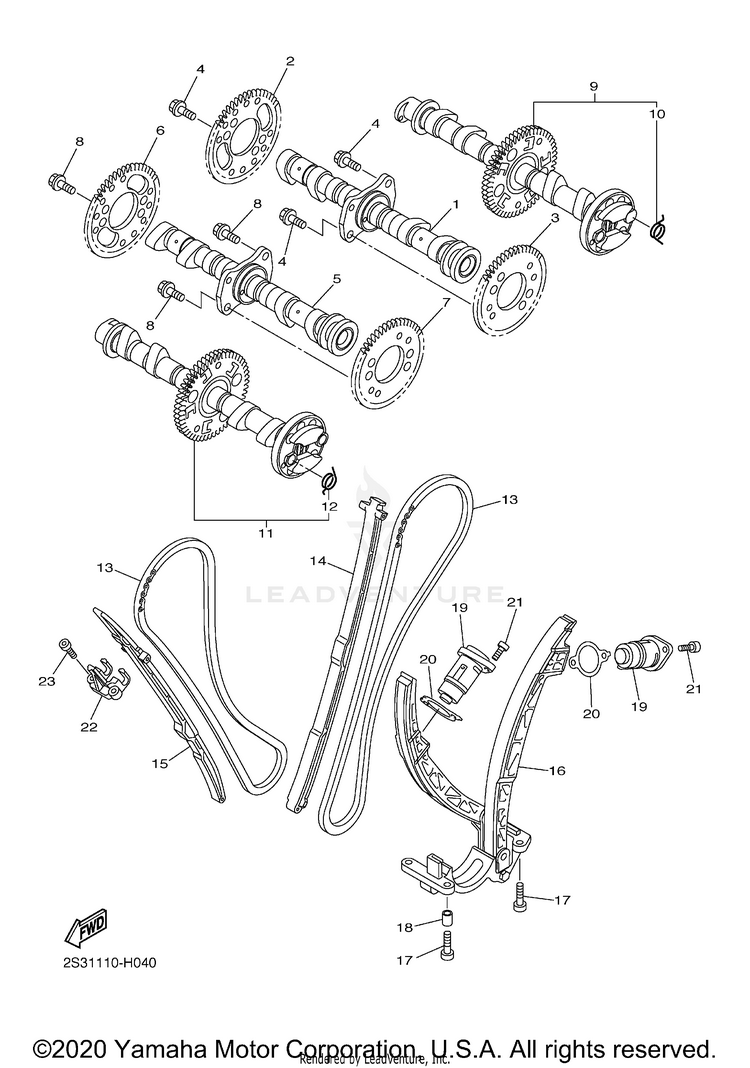

CAMSHAFT & CHAIN

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12S3-W1217-00-00CAMSHAFT SUB ASSY 1$274.99$228.48Usually ships in 7-10 business days
22S3-12176-00-00SPROCKET, CAM CHAIN$120.99$94.37Usually ships in 7-10 business days
32S3-11554-00-00GEAR 3$139.99$109.19Usually ships in 7-10 business days
490105-07006-00BOLT, FLANGE$9.49$7.4010+ In-Stock
52S3-W1217-00-00CAMSHAFT SUB ASSY 1$274.99$228.48Usually ships in 7-10 business days
62S3-12176-00-00SPROCKET, CAM CHAIN$120.99$94.37Usually ships in 7-10 business days
72S3-11554-00-00GEAR 3$139.99$109.19Usually ships in 7-10 business days
890105-07006-00BOLT, FLANGE$9.49$7.4010+ In-Stock
92S3-12180-01-00CAMSHAFT ASSY 2$914.99$766.00Usually ships in 7-10 business days
102S3-12287-00-00SPRING, DECOMPRESSION$2.65$2.38Usually ships in 7-10 business days
112S3-12180-11-00CAMSHAFT ASSY 2$914.99$766.00Usually ships in 7-10 business days
122S3-12287-00-00SPRING, DECOMPRESSION$2.65$2.38Usually ships in 7-10 business days
1394591-49134-00CHAIN$43.99$36.07Usually ships in 7-10 business days
142S3-12251-00-00DAMPER, CHAIN 1$31.99$26.23Usually ships in 7-10 business days
152S3-12253-00-00DAMPER, CHAIN 3$30.99$25.41Usually ships in 7-10 business days
162S3-12250-00-00CHAIN DAMPER ASSY$580.99$486.12Usually ships in 7-10 business days
1791317-06025-00

(replaces part #
91312-06025-00)

BOLT, HEXAGON SOCKET HEAD$2.65$2.2810+ In-Stock
1899530-08012-00PIN, DOWEL$6.99$5.4510+ In-Stock
192S3-12210-01-00TENSIONER ASSY, CAM CHAIN$169.99$134.49Usually ships in 7-10 business days
202S3-12213-00-00GASKET, TENSIONER CASE$7.49$6.74Usually ships in 7-10 business days
2191317-06016-00

(replaces part #
90110-06193-00)

BOLT (4MY)-$1.4210+ In-Stock
222S3-12231-00-00GUIDE, STOPPER 1$36.99$30.33Usually ships in 7-10 business days
2391314-06020-00

(replaces part #
90110-06174-00)

BOLT, HEXAGON SOCKET HEAD$2.65$2.5710+ In-Stock
