2020 Yamaha V-Max Fuel Tank OEM Parts Diagram

Submodel VMAX - VMX17LCGY - 2020

Shop Aftermarket Parts

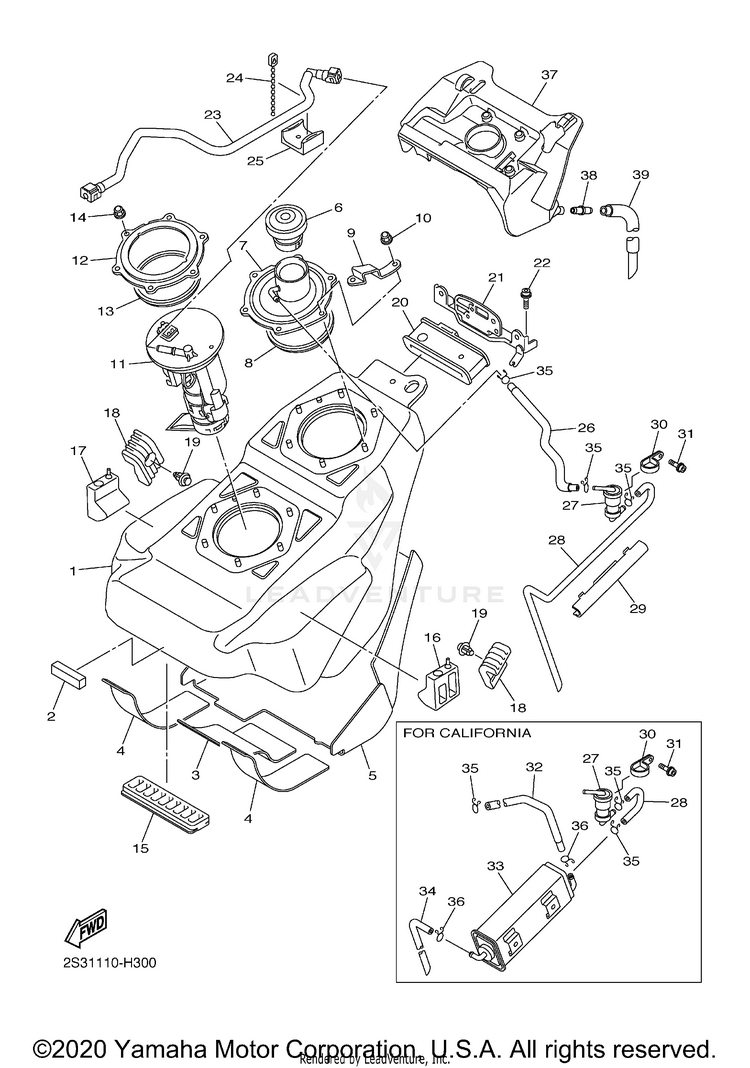

FUEL TANK

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12S3-24110-00-00FUEL TANK COMP.$409.99$340.77Usually ships in 7-10 business days
22C0-2139U-00-00DAMPER 2$3.65$3.28Usually ships in 7-10 business days
32S3-2414J-00-00DAMPER, PLATE 2$11.49$9.42Usually ships in 7-10 business days
42S3-2414K-00-00DAMPER, PLATE 3$11.49$9.42Usually ships in 7-10 business days
52S3-24145-00-00DAMPER, SIDE COVER$90.99$70.97Usually ships in 7-10 business days
654K-24602-10-00CAP ASSY$233.99$182.51Usually ships in 7-10 business days
72S3-21350-01-00FILLER TUBE COMP.$137.99$107.63Usually ships in 7-10 business days
82S3-24486-00-00O-RING$28.99$23.77Usually ships in 7-10 business days
92S3-2411F-00-00PLATE, FITTING$13.49$11.06Usually ships in 7-10 business days
1095307-06800-00NUT$4.15$3.574 In-Stock
112S3-13907-03-00

(replaces part #
2S3-13907-01-00)

FUEL PUMP COMP.$552.99$481.65Usually ships in 7-10 business days
121S3-24491-10-00BRACKET, FUEL PUMP$25.99$21.31Usually ships in 7-10 business days
132S3-24486-00-00O-RING$28.99$23.77Usually ships in 7-10 business days
1495307-06800-00NUT$4.15$3.574 In-Stock
152S3-24181-00-00DAMPER, LOCATING 1$8.49$7.64Usually ships in 7-10 business days
162S3-24182-00-00DAMPER, LOCATING 2$8.49$7.64Usually ships in 7-10 business days
172S3-24182-10-00DAMPER, LOCATING 2$7.49$6.74Usually ships in 7-10 business days
182S3-24183-00-00DAMPER, LOCATING 3$6.99$6.29Usually ships in 7-10 business days
1990269-06081-00RIVET$8.49$6.6210+ In-Stock
202S3-24184-00-00DAMPER, LOCATING 4$18.49$15.16Usually ships in 7-10 business days
212S3-2413Y-00-00BRACKET, TANK FITTING$65.99$51.47Usually ships in 7-10 business days
2290110-06219-00BOLT, HEXAGON SOCKET HEAD$8.49$7.64Usually ships in 7-10 business days
232S3-13971-00-00PIPE, FUEL 1$91.99$71.75Usually ships in 7-10 business days
2480L-26397-00-00BAND$8.49$7.64Usually ships in 7-10 business days
252S3-24144-00-00HOLDER, DAMPER$7.99$7.19Usually ships in 7-10 business days
262S3-24311-00-00PIPE, FUEL 1$38.99$31.97Usually ships in 7-10 business days
272C0-24180-00-00ROLL OVER VALVE ASSY$56.99$44.45Usually ships in 7-10 business days
282S3-24312-00-00PIPE 2 | FOR CALIFORNIA$23.99$19.67Usually ships in 7-10 business days
282S3-24312-10-00PIPE 2$59.99$46.79Usually ships in 7-10 business days
292S3-24327-00-00PROTECTOR, PIPE$15.49$12.70Usually ships in 7-10 business days
3090464-15014-00CLAMP$3.65$3.28Usually ships in 7-10 business days
3190110-05028-00

(replaces part #
90110-05062-00)

BOLT, HEXAGON SOCKET HEAD$9.49$7.4010+ In-Stock
322S3-24313-00-00PIPE 3 | FOR CALIFORNIA$90.99$70.97Usually ships in 7-10 business days
332S3-24170-00-00CANISTER ASSY | FOR CALIFORNIA$760.99$665.61Usually ships in 7-10 business days
342S3-24314-00-00PIPE 4 | FOR CALIFORNIA$10.49$8.60Usually ships in 7-10 business days
3590467-09002-00CLIP$2.70$2.3210+ In-Stock
3690467-100A1-00CLIP | FOR CALIFORNIA$8.49$6.6210+ In-Stock
372S3-2414A-00-00COVER, FILLER$66.99$52.25Usually ships in 7-10 business days
384JP-21753-00-00BOSS, CONNECTOR$4.35$3.92Usually ships in 7-10 business days
392S3-24318-00-00PIPE, OVERFLOW$26.99$22.13Usually ships in 7-10 business days
