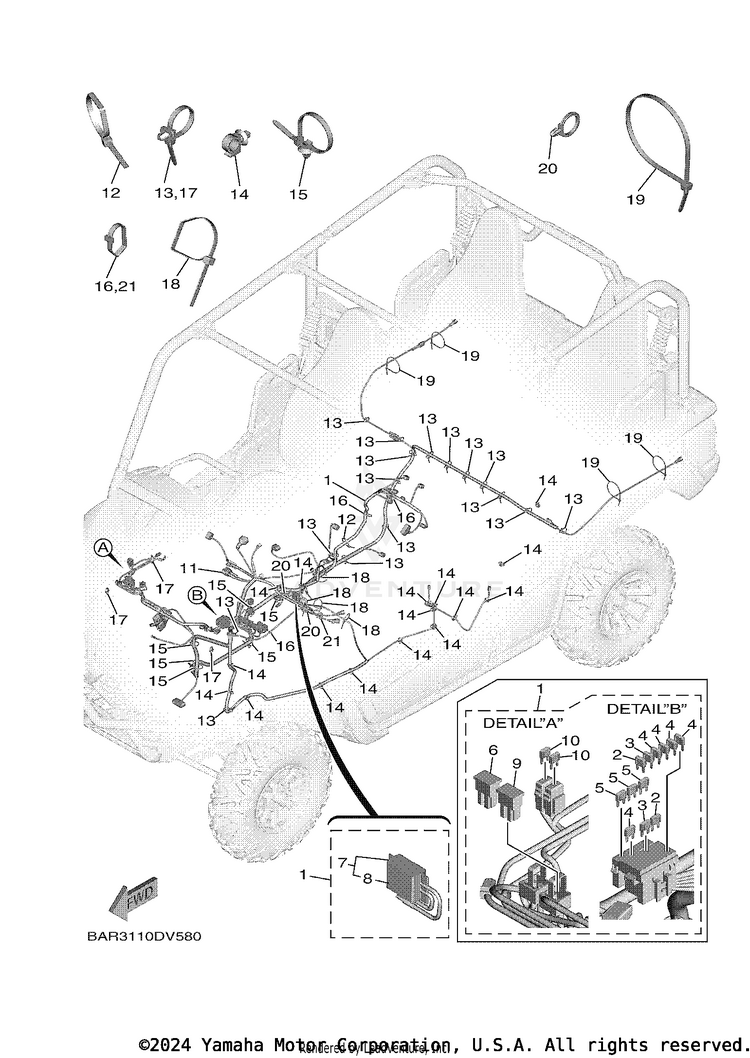

2020 Yamaha Wolverine X4 Electrical 3 OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	BAR-82590-00-00	WIRE HARNESS ASSY	$1,090.99	$953.06	Usually ships in 7-10 business days
2	5JJ-82151-60-00	FUSE (30A-BL)	$8.49	$7.64	Usually ships in 7-10 business days
3	67F-82151-50-00 (replaces part # 5JJ-82151-10-00)	FUSE (15A)	$4.15	$3.74	Usually ships in 7-10 business days
4	5JJ-82151-00-00	FUSE (7.5A-BL)	$7.49	$5.84	9 In-Stock
5	67F-82151-40-00 (replaces part # 5JJ-82151-30-00)	FUSE (10A)	$7.49	$6.74	3 In-Stock
6	JR9-82151-00-00 (replaces part # 5PS-82151-00-00)	SLOW BLOW FUSE	$13.49	$10.52	5 In-Stock
7	5B4-82180-00-00	CIRCUIT BREAKER ASSY	$47.99	$39.35	Usually ships in 7-10 business days
8	5B4-82560-00-00	THERMO SWITCH ASSY	$61.99	$48.35	Usually ships in 7-10 business days
9	5JW-82151-10-00	FUSE (50A)	$17.99	$14.03
10	5JJ-82151-20-00	FUSE (20A-BL)	$8.49	$7.64	Usually ships in 7-10 business days
11	B5H-82378-00-00	CONNECTOR	$8.49	$7.64	Usually ships in 7-10 business days
12	90464-48800-00	CLAMP	$4.90	$4.41	Not Shipping
13	5B4-F1338-00-00	CLAMP	$3.60	$3.10	10+ In-Stock
14	90464-12830-00	CLAMP \| d: 12mm	$1.60	$1.38	10+ In-Stock
15	1NS-F1338-00-00	CLAMP	$3.60	$3.10	4 In-Stock
16	90464-31827-00	CLAMP \| 122X4.80	$3.70	$3.33	Usually ships in 7-10 business days
17	5B4-F1338-00-00	CLAMP	$3.60	$3.10	10+ In-Stock
18	90464-40825-00	CLAMP	$3.05	$2.74	Usually ships in 7-10 business days
19	90464-76800-00	CLAMP	$6.49	$5.84	Usually ships in 7-10 business days
20	90464-19815-00	CLAMP	$1.80	$1.62	Usually ships in 7-10 business days
21	90464-31827-00	CLAMP \| 122X4.80	$3.70	$3.33	Usually ships in 7-10 business days

1

WIRE HARNESS ASSY

$1,090.99

$953.06

Usually ships in 7-10 business days
