2020 Yamaha Wolverine X4 Side Cover 2 OEM Parts Diagram

Submodel WOLVERINE X4 - YXF85WPBLL - 2020

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SIDE COVER 2

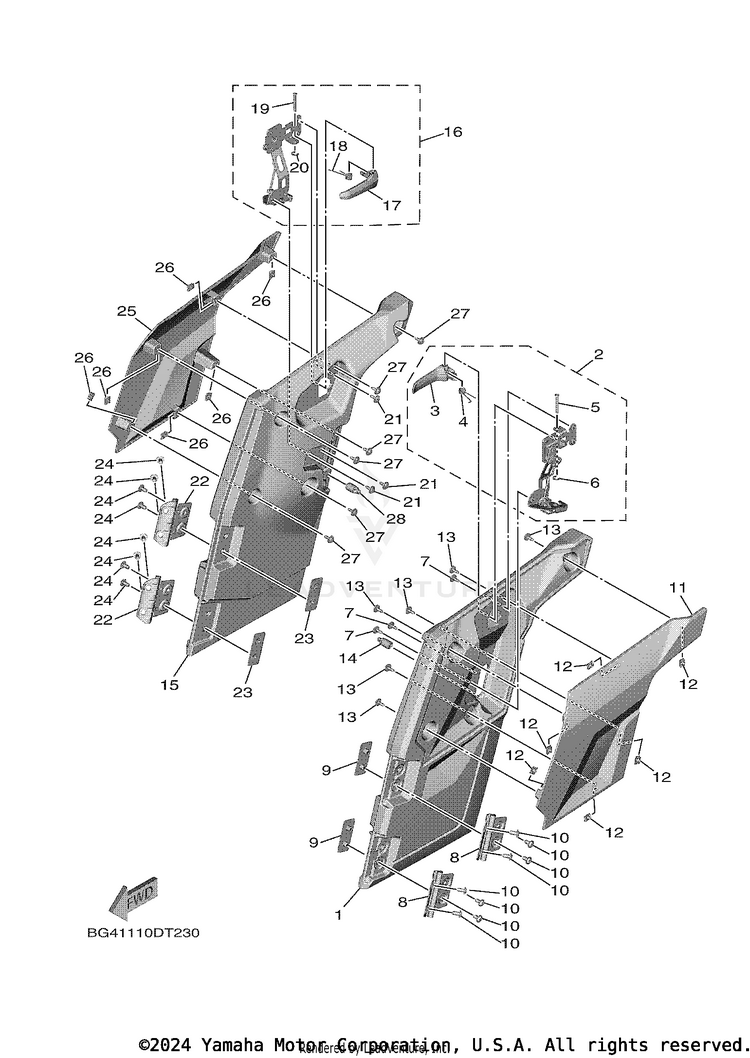

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1BG4-K8571-00-00PNL, DOOR RR, LH$48.99$40.64Usually ships in 7-10 business days
2BG4-K7171-00-00BODY, LATCH 1$252.99$197.33Usually ships in 7-10 business days
32HC-F17N1-00-00LEVER, LATCH 1$8.49$7.64Usually ships in 7-10 business days
42HC-F1742-00-00SPRING$3.20$2.88Usually ships in 7-10 business days
590249-05801-00PIN$2.55$2.30Usually ships in 7-10 business days
699080-04600-00

(replaces part #
99002-04600-00)

CLIP$1.99$1.716 In-Stock
790119-06226-00BOLT, WITH WASHER$2.80$2.4110+ In-Stock
8BG4-F4779-00-00HINGE, SEAT 2$28.99$23.77Usually ships in 7-10 business days
9BG4-F1736-00-00NUT,PLATE$8.49$7.644 In-Stock
1090149-08805-00SCREW$1.20$1.039 In-Stock
11BG4-K817K-10-00TRIM, SIDE PANEL 3$24.99$20.49Usually ships in 7-10 business days
1290183-060A6-00NUT, SPRING$5.99$4.6710+ In-Stock
1390119-06226-00BOLT, WITH WASHER$2.80$2.4110+ In-Stock
142MB-F8378-00-00PAD$2.70$2.322 In-Stock
15BG4-K8572-00-00PNL. , DOOR RR. RH.$79.99$62.39Usually ships in 7-10 business days
16BG4-K7172-00-00BODY, LATCH 2$249.99$194.99Usually ships in 7-10 business days
172HC-F17N1-00-00LEVER, LATCH 1$8.49$7.64Usually ships in 7-10 business days
182HC-F1742-00-00SPRING$3.20$2.88Usually ships in 7-10 business days
1990249-05801-00PIN$2.55$2.30Usually ships in 7-10 business days
2099080-04600-00

(replaces part #
99002-04600-00)

CLIP$1.99$1.716 In-Stock
2190119-06226-00BOLT, WITH WASHER$2.80$2.4110+ In-Stock
22BG4-F4779-00-00HINGE, SEAT 2$28.99$23.77Usually ships in 7-10 business days
23BG4-F1736-00-00NUT,PLATE$8.49$7.644 In-Stock
2490149-08805-00SCREW$1.20$1.039 In-Stock
25BG4-K817L-10-00TRIM, SIDE PANEL 4$20.99$17.21Usually ships in 7-10 business days
2690183-060A6-00NUT, SPRING$5.99$4.6710+ In-Stock
2790119-06226-00BOLT, WITH WASHER$2.80$2.4110+ In-Stock
282MB-F8378-00-00PAD$2.70$2.322 In-Stock
