2020 Yamaha XSR700 Electrical 1 OEM Parts Diagram

Submodel XSR700 - XSR700LCW - 2020

Shop Aftermarket Parts

ELECTRICAL 1

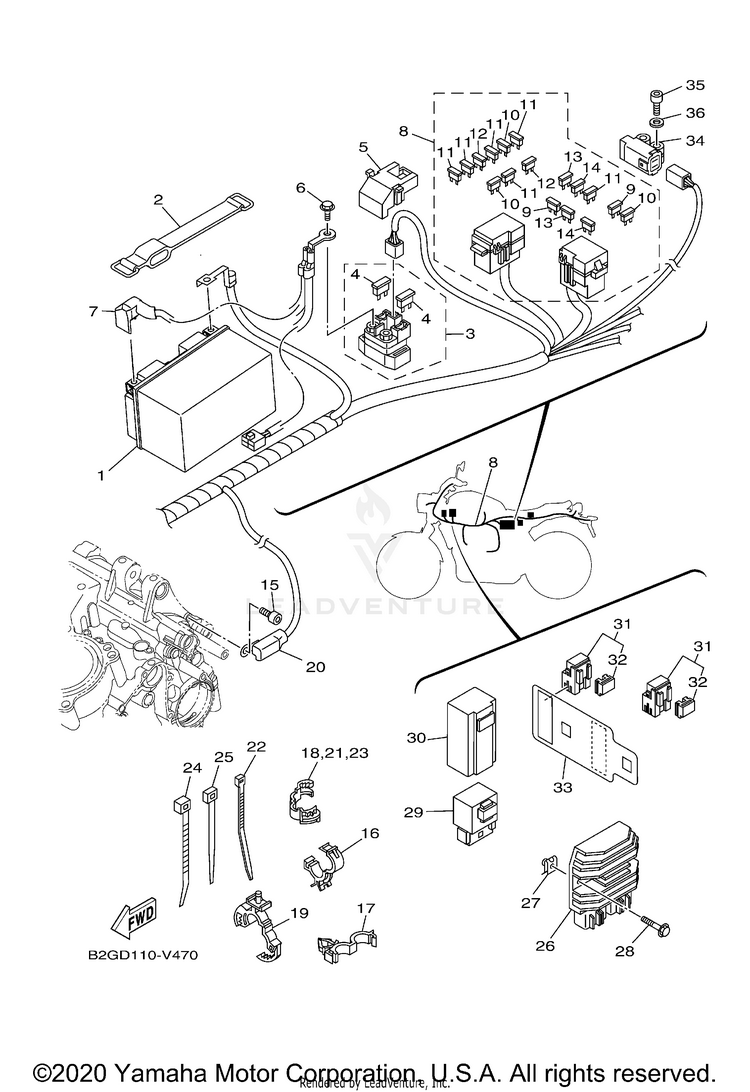

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1YTZ-10S00-00-00YTZ10S YUASA BATTER$239.99$224.72Usually ships in 7-10 business days
21WS-82131-00-00BAND, BATTERY$8.49$7.64Usually ships in 7-10 business days
31XC-81940-00-00STARTER RELAY ASSY (RC19-089B)$71.99$56.152 In-Stock
41AE-82151-00-00FUSE (30A-BL)$8.49$6.628 In-Stock
55SL-82119-10-00COVER, LEAD WIRE$5.49$4.2810+ In-Stock
695022-06008-00BOLT, FLANGE$9.49$7.4010+ In-Stock
71XB-82115-01-00WIRE, PLUS LEAD$25.99$21.31Usually ships in 7-10 business days
8B2G-82590-11-00

(replaces part #
B2G-82590-10-00)

WIRE HARNESS ASSY$886.99$738.84Usually ships in 7-10 business days
95JJ-82151-80-00FUSE (2A-BL)$8.49$7.642 In-Stock
105JJ-82151-00-00FUSE (7.5A-BL)$7.49$5.849 In-Stock
1167F-82151-40-00

(replaces part #
5JJ-82151-30-00)

FUSE (10A)$7.49$6.743 In-Stock
1267F-82151-50-00

(replaces part #
5JJ-82151-10-00)

FUSE (15A)$4.15$3.74Usually ships in 7-10 business days
135JJ-82151-20-00FUSE (20A-BL)$8.49$7.64Usually ships in 7-10 business days
145JJ-82151-60-00FUSE (30A-BL)$8.49$7.64Usually ships in 7-10 business days
1591380-06012-00BOLT$1.99$1.713 In-Stock
1690464-20191-00CLAMP$11.49$9.42Usually ships in 7-10 business days
1790464-18007-00CLAMP$3.55$3.20Usually ships in 7-10 business days
1890464-14010-00CLAMP$3.65$3.28Usually ships in 7-10 business days
1990464-18011-00CLAMP$3.75$3.38Usually ships in 7-10 business days
201WS-81916-00-00COVER, TERMINAL$5.49$4.94Usually ships in 7-10 business days
2190464-14010-00CLAMP$3.65$3.28Usually ships in 7-10 business days
2290464-36005-00CLAMP$0.99$0.89Usually ships in 7-10 business days
2390464-14010-00CLAMP$3.65$3.28Usually ships in 7-10 business days
2490464-35132-00CLAMP$10.49$8.60Usually ships in 7-10 business days
2590464-16061-00CLAMP$6.99$4.29Not Shipping
2627D-81960-00-00RECTIFIER & REGULATOR ASSY$342.99$267.53Usually ships in 7-10 business days
2790183-06069-00NUT, SPRING$7.49$5.8410+ In-Stock
2895027-06020-00BOLT, FLANGE-$2.8110+ In-Stock
295VK-81950-53-00

(replaces part #
5VK-81950-51-00)

RELAY ASSY (G8R-30Y-W5)$61.99$48.35Usually ships in 7-10 business days
301WS-8246B-00-00COVER 1$10.49$8.60Usually ships in 7-10 business days
311TP-81950-00-00RELAY ASSY (1TP-00)$16.49$12.8610+ In-Stock
325EA-81952-00-00HOLDER, RELAY$8.49$6.625 In-Stock
332D1-82589-02-00

(replaces part #
2D1-82589-00-00)

PROTECTER, WIRE HARNESS$11.99$9.83Usually ships in 7-10 business days
345PS-82576-02-00

(replaces part #
5PS-82576-01-00)

SENSOR, LEAN ANGLE$96.99$75.658 In-Stock
3591312-04025-00BOLT, HEXAGON SOCKET HEAD$1.95$1.682 In-Stock
3690201-04030-00WASHER, PLATE$2.40$2.0610+ In-Stock
