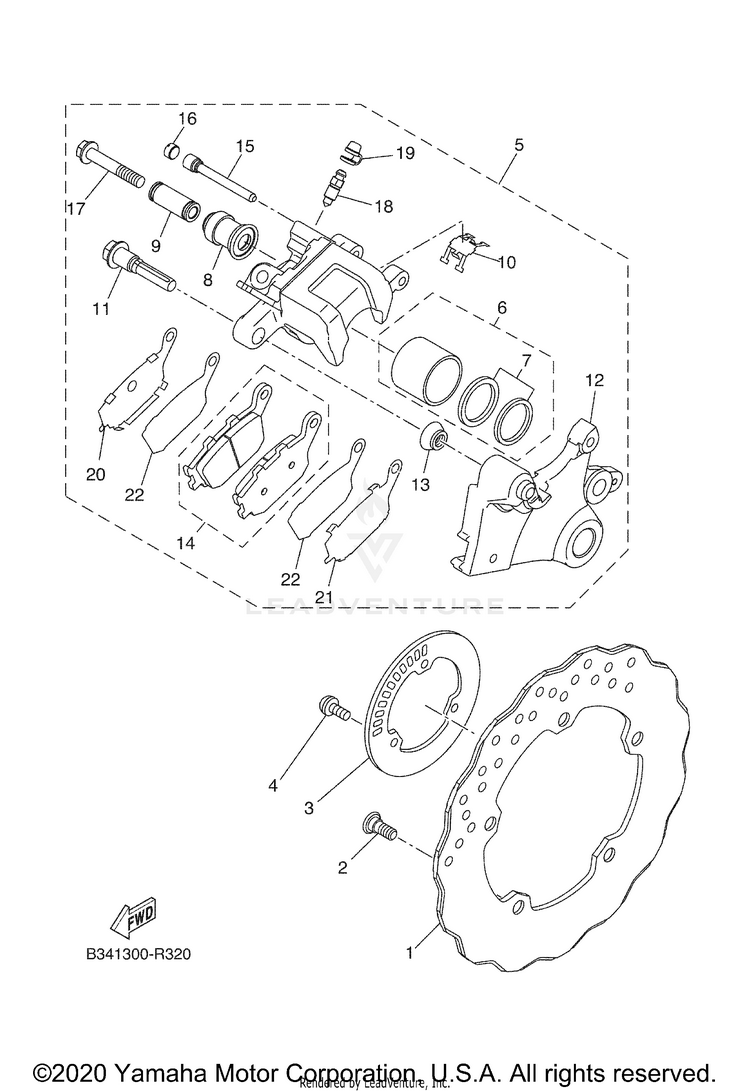

2020 Yamaha XSR700 Rear Brake Caliper OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	1WS-2582W-01-00 (replaces part # 1WS-2582W-00-00)	DISK, REAR BRAKE 2	$95.99	$74.87	Usually ships in 7-10 business days
2	90109-08046-00 (replaces part # 90109-08045-00)	BOLT	$3.75	$3.22	10+ In-Stock
3	2DR-2517G-00-00	ROTOR, SENSOR	$109.99	$85.79	Usually ships in 7-10 business days
4	90149-05030-00 (replaces part # 90149-05029-00)	SCREW	$2.80	$2.41	10+ In-Stock
5	2DR-2580W-00-00	CALIPER ASSY, REAR 2	$346.99	$286.39	Usually ships in 7-10 business days
6	5SL-25802-00-00	PISTON ASSY, CALIPER	$78.99	$61.61	Usually ships in 7-10 business days
7	5SL-25803-00-00	CALIPER SEAL KIT	$21.99	$17.15	3 In-Stock
8	5SL-25917-00-00	BOOT, CALIPER	$16.49	$13.52	Usually ships in 7-10 business days
9	5SL-25838-00-00	SLEEVE, CALIPER	$14.49	$11.88	Usually ships in 7-10 business days
10	5SL-25919-00-00	SUPPORT, PAD	$7.49	$5.84	3 In-Stock
11	5SL-25914-00-00	PIN, SLIDE	$19.99	$16.39	Usually ships in 7-10 business days
12	2DR-25921-50-00	BRACKET, SUPPORT	$83.99	$65.51	Usually ships in 7-10 business days
13	3JD-25917-00-00	BOOT, CALIPER	$9.49	$7.40	10+ In-Stock
14	5VX-25806-00-00	BRAKE PAD KIT 2	$58.99	$46.01	3 In-Stock
15	8CR-25924-00-00	PIN, PAD	$15.49	$12.08	10+ In-Stock
16	5DH-25916-00-00	PLUG	$10.99	$8.57	10+ In-Stock
17	1RC-25926-00-00	BOLT	$21.99	$18.03	Usually ships in 7-10 business days
18	8CR-25824-00-00	SCREW, BLEED	$12.99	$10.65	Usually ships in 7-10 business days
19	36Y-W0048-00-00 (replaces part # 1UY-25825-51-00)	BLEED SCREW KIT	$10.99	$8.57	10+ In-Stock
20	5SL-25827-00-00	SHIM, CALIPER	$7.49	$6.74	Usually ships in 7-10 business days
21	5SL-25827-10-00	SHIM, CALIPER	$9.49	$8.54	Usually ships in 7-10 business days
22	5SL-25828-01-00	SHIM, CALIPER	$8.49	$7.64	Usually ships in 7-10 business days
