2020 Yamaha XT250 Rear Brake Caliper OEM Parts Diagram

Submodel XT250 - XT250L1C - 2020

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

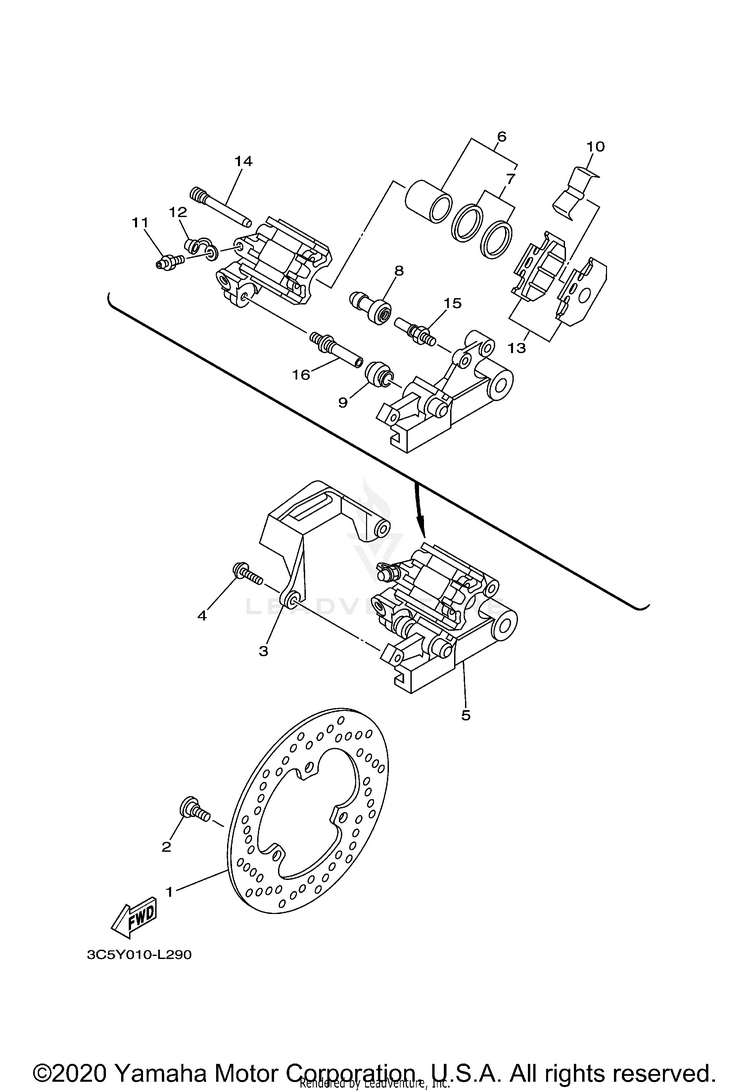

REAR BRAKE CALIPER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15XT-2582W-00-00DISC, REAR BRAKE 2$114.99$89.69Usually ships in 7-10 business days
290109-08087-00

(replaces part #
90109-08082-00)

BOLT$3.15$2.7110+ In-Stock
34GY-27491-00-00PROTECTOR$69.99$54.592 In-Stock
492014-06016-00BOLT, BUTTON HEAD$9.49$7.4010+ In-Stock
53C5-2580W-10-00CALIPER ASSY, REAR 2$356.99$294.95Usually ships in 7-10 business days
65XT-25802-50-00PISTON ASSY, CALIPER$44.99$36.89Usually ships in 7-10 business days
73JD-25803-50-00CALIPER SEAL KIT$17.99$14.034 In-Stock
81UY-25937-51-00BOOT 2$15.49$12.0810+ In-Stock
93JD-25917-00-00BOOT, CALIPER$9.49$7.4010+ In-Stock
103SP-25919-51-00SUPPORT, PAD$24.99$20.49Usually ships in 7-10 business days
1136Y-W0048-00-00

(replaces part #
1UY-25824-51-00)

BLEED SCREW KIT$10.99$8.5710+ In-Stock
1236Y-W0048-00-00

(replaces part #
1UY-25825-51-00)

BLEED SCREW KIT$10.99$8.5710+ In-Stock
133C5-25806-00-00BRAKE PAD KIT 2$50.99$39.771 In-Stock
143FV-25924-00-00

(replaces part #
3SP-25924-51-00)

PIN, PAD$25.99$20.276 In-Stock
153SP-25914-51-00PIN, SLIDE$4.95$4.2610+ In-Stock
163SP-25926-51-00BOLT$14.49$11.3010+ In-Stock
