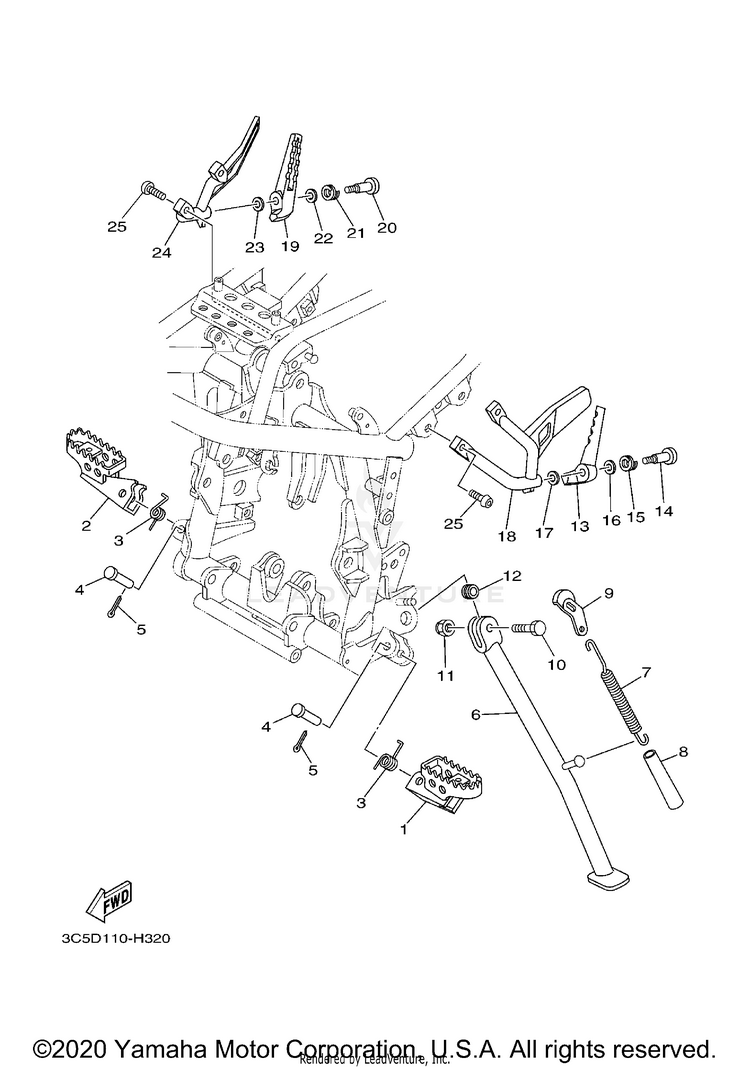

2020 Yamaha XT250 Stand Footrest OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	3LD-27411-10-00	FOOTREST 1	$53.99	$42.11	1 In-Stock
2	3LD-27421-10-00	FOOTREST 2	$52.99	$41.33	2 In-Stock
3	90508-20583-00	SPRING, TORSION	$9.49	$7.40	8 In-Stock
4	90240-10101-00	PIN, CLEVIS	$13.49	$10.52	7 In-Stock
5	91490-25020-00 (replaces part # 91401-25015-00)	PIN. COTTER	$3.45	$2.97	10+ In-Stock
6	3C5-27311-11-00 (replaces part # 3C5-27311-10-00)	STAND, SIDE	$66.99	$52.25	Usually ships in 7-10 business days
7	90506-35473-00	SPRING, TENSION	$18.49	$14.42	2 In-Stock
8	90445-22327-00	HOSE (L70)	$8.49	$7.64	Usually ships in 7-10 business days
9	5XT-27315-01-00	LINK, SIDE STAND	$7.49	$6.74	Usually ships in 7-10 business days
10	90101-10013-00	BOLT	$4.00	$3.60	Usually ships in 7-10 business days
11	90185-10012-00	NUT, SELF-LOCKING	$3.60	$3.10	10+ In-Stock
12	90387-10003-00	COLLAR	$28.99	$22.61	9 In-Stock
13	3XP-27431-02-00	FOOTREST, REAR 1	$39.99	$32.79	Usually ships in 7-10 business days
14	90109-085F5-00	BOLT	$5.99	$5.39	4 In-Stock
15	90504-18031-00 (replaces part # 90504-18005-00)	SPRING, COMPRESSION	$10.49	$8.18	8 In-Stock
16	92907-10600-00	WASHER, PLATE	$9.49	$7.40	8 In-Stock
17	90201-083P5-00	WASHER, PLATE	$6.49	$5.06	3 In-Stock
18	3C5-27432-00-00	BRACKET 1	$76.99	$60.05	Usually ships in 7-10 business days
19	3XP-27441-02-00	FOOTREST, REAR 2	$37.99	$29.63	1 In-Stock
20	90109-085F5-00	BOLT	$5.99	$5.39	4 In-Stock
21	90504-18031-00 (replaces part # 90504-18005-00)	SPRING, COMPRESSION	$10.49	$8.18	8 In-Stock
22	92907-10600-00	WASHER, PLATE	$9.49	$7.40	8 In-Stock
23	90201-083P5-00	WASHER, PLATE	$6.49	$5.06	3 In-Stock
24	3C5-27442-00-00	BRACKET 2	$76.99	$60.05	Usually ships in 7-10 business days
25	92012-08020-00	BOLT, BUTTON HEAD	$2.80	$2.41	5 In-Stock
