2020 Yamaha YZF-R1 Taillight OEM Parts Diagram

Submodel YZFR1 - YZFR1MLC - 2020

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

TAILLIGHT

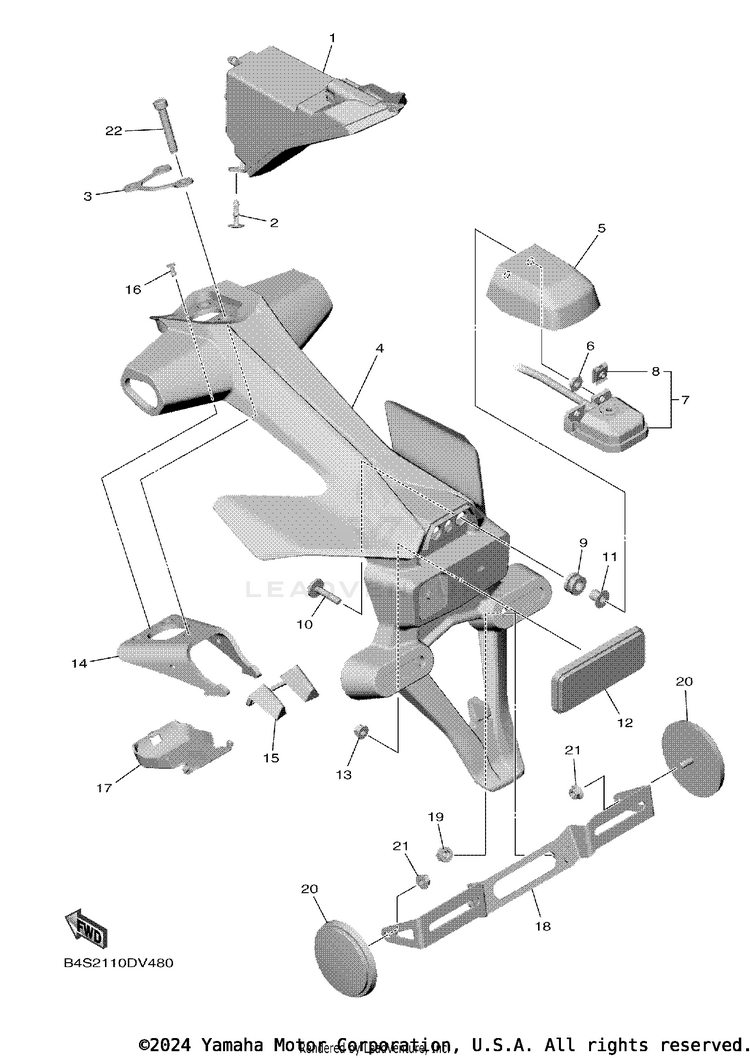

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
12CR-84710-01-00

(replaces part #
2CR-84710-00-00)

TAILLIGHT UNIT ASSY$212.99$166.13Usually ships in 7-10 business days
290269-06008-00RIVET$9.49$7.4010+ In-Stock
AFTERMARKET ALTERNATIVE
$6.99$4.9910+ In-Stock
32CR-21615-00-00WASHER, SPECIAL 1$9.49$8.54Usually ships in 7-10 business days
42CR-21629-00-00GUARD, MUD$265.99$207.47Usually ships in 7-10 business days
52CR-2163F-00-00COVER, REAR FENDER 3$163.99$127.91Usually ships in 7-10 business days
690387-05035-00COLLAR$8.49$6.62
72CR-84745-00-00LICENCE LIGHT UNIT ASSY$177.99$138.83Usually ships in 7-10 business days
890183-05061-00NUT, SPRING$6.49$5.0610+ In-Stock
990480-11009-00GROMMET$1.20$1.08Usually ships in 7-10 business days
1090159-05035-00SCREW, WITH WASHER$9.49$8.548 In-Stock
1190387-05003-00COLLAR$6.49$5.84Usually ships in 7-10 business days
123Y6-85130-02-00REAR REFLECTOR ASSY$30.99$24.173 In-Stock
1395607-05200-00NUT, U FLANGE$10.49$8.183 In-Stock
142CR-2161G-00-00BRACKET 6$34.99$28.69Usually ships in 7-10 business days
152CR-21639-00-00DAMPER 2$9.49$8.54Usually ships in 7-10 business days
1690267-32146-00RIVET, BLIND$8.49$7.64Usually ships in 7-10 business days
172CR-2163A-01-00

(replaces part #
2CR-2163A-00-00)

COVER, REAR FENDER$6.49$5.84Usually ships in 7-10 business days
181RC-84751-00-00BRACKET, LICENSE$36.99$30.33Usually ships in 7-10 business days
1995604-06200-00

(replaces part #
95607-06200-00)

NUT, U FLANGE$2.95$2.5410+ In-Stock
20449-85131-02-00REFLECTOR, REAR 1$33.99$26.514 In-Stock
2195707-05500-00NUT, FLANGE$9.49$7.4010+ In-Stock
2291314-06035-00

(replaces part #
90110-06140-00)

BOLT, HEXAGON SOCKET HEAD$9.49$7.4010+ In-Stock
