2021 Yamaha KODIAK 450 4x4 Auto Front Master Cylinder OEM Parts Diagram

Submodel KODIAK 450 EPS SE - YFM45KPSMS - 2021

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT MASTER CYLINDER

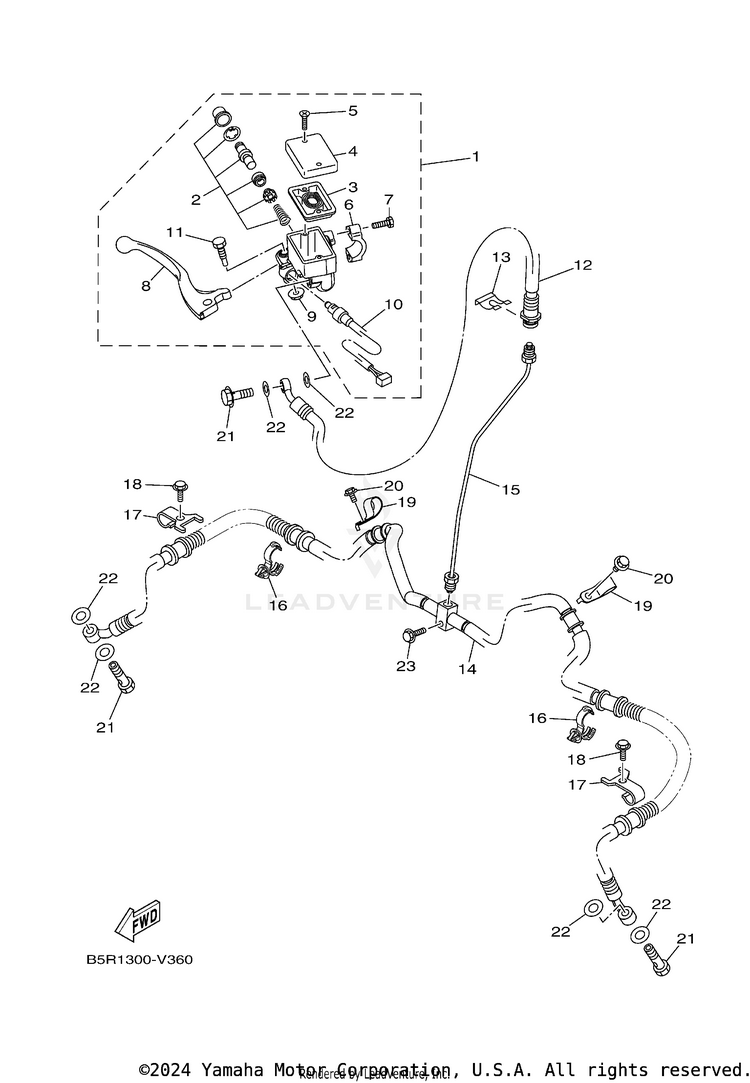

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15KM-2583T-10-00MASTER CYLINDER ASSY$261.99$204.35Usually ships in 7-10 business days
28CR-W0041-00-00CYLINDER KIT, MASTER$62.99$49.133 In-Stock
AFTERMARKET ALTERNATIVE
$29.80$28.314 In-Stock
34L0-25854-00-00DIAPHRAGM, RESERVOIR$30.99$24.1710+ In-Stock
45LP-25852-02-00CAP, RESERVOIR$24.99$19.496 In-Stock
598707-04012-00

(replaces part #
98702-04012-00)

SCREW, FLAT HEAD-$1.9410+ In-Stock
65GM-25867-10-00BRACKET, MASTER CYLINDER$25.99$21.31Usually ships in 7-10 business days
75MV-25833-00-00BOLT, FITTING$7.49$5.846 In-Stock
85KM-83922-00-00LEVER 2$41.99$32.752 In-Stock
995780-06500-00

(replaces part #
95701-06500-00)

NUT, FLANGE$2.95$2.5410+ In-Stock
105LP-83980-00-00FRONT STOP SWITCH ASSY$70.99$55.372 In-Stock
111FK-2589F-10-00BOLT, LEVER$9.49$8.54Usually ships in 7-10 business days
12BB5-F5872-01-00

(replaces part #
BB5-F5872-00-00)

HOSE, BRAKE 1$23.99$19.67Usually ships in 7-10 business days
132GU-25866-00-00CIRCLIP$10.99$8.573 In-Stock
14B5R-F5873-01-00

(replaces part #
B5R-F5873-00-00)

HOSE, BRAKE 2$63.99$49.91Usually ships in 7-10 business days
151CT-F5871-00-00PIPE, BRAKE$8.49$7.64Usually ships in 7-10 business days
1690464-18002-00CLAMP$9.49$7.409 In-Stock
175ND-F5875-01-00HOLDER, BRAKE HOSE 1$4.40$3.96Usually ships in 7-10 business days
1895D32-06012-00BOLT, FLANGE DEEP RECESS$9.49$8.54Usually ships in 7-10 business days
193B4-25886-00-00HOLDER, BRAKE HOSE$7.49$6.746 In-Stock
2095D32-06012-00BOLT, FLANGE DEEP RECESS$9.49$8.54Usually ships in 7-10 business days
2190401-10015-00BOLT, UNION$12.49$9.7410+ In-Stock
2290201-10118-00WASHER, PLATE$3.80$3.2710+ In-Stock
2395D32-06025-00BOLT, FLANGE DEEP RECESS$1.15$0.992 In-Stock
