2021 Yamaha KODIAK 450 4x4 Auto Winch OEM Parts Diagram

Submodel KODIAK 450 EPS SE - YFM45KPSMS - 2021

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

WINCH

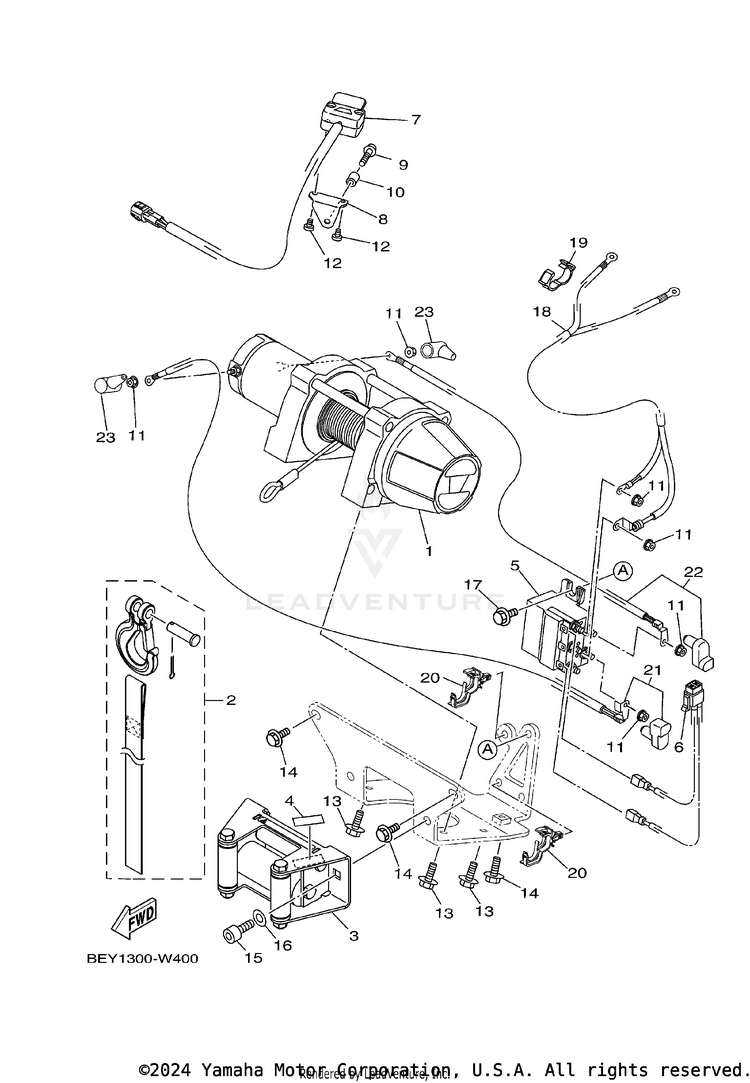

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1BFE-F845V-00-00WINCH$589.99$460.19Usually ships in 7-10 business days
2BFE-F8488-00-00HOOK$57.99$45.23Usually ships in 7-10 business days
3BFE-F178G-00-00ROLLER$79.99$62.39Usually ships in 7-10 business days
4BAS-F8459-00-00LABEL 2$5.49$4.94Usually ships in 7-10 business days
5BAS-H232W-00-00CONTACTOR$186.99$145.85Usually ships in 7-10 business days
6BFE-82105-00-00WIRE HARNESS$14.49$11.88Usually ships in 7-10 business days
7BEY-H259E-00-00SWITCH ASSY$82.99$64.73Usually ships in 7-10 business days
8BFE-F1453-00-00BRACKET, SWITCH$9.49$8.54Usually ships in 7-10 business days
995022-06040-00BOLT, FLANGE$3.70$3.1810+ In-Stock
1090387-07598-00

(replaces part #
90387-06299-00)

COLLAR$6.49$5.0610+ In-Stock
1195702-06500-00NUT, WITH WASHER$2.60$2.2410+ In-Stock
12BFE-F8382-00-00SCREW, SPECIAL$0.85$0.76Usually ships in 7-10 business days
1395D32-08020-00BOLT, FLANGE DEEP RE-$1.02Usually ships in 7-10 business days
1495D32-08020-00BOLT, FLANGE DEEP RE-$1.02Usually ships in 7-10 business days
1591312-10020-00BOLT, HEXAGON SOCKET HEAD$8.49$7.64Usually ships in 7-10 business days
1690201-10033-00

(replaces part #
90201-10013-00)

WASHER, PLATE$9.49$7.4010+ In-Stock
1790119-06240-00BOLT, WITH WASHER$3.85$3.319 In-Stock
18BEY-H2309-01-00WIRE, SUB LEAD$66.99$52.25Usually ships in 7-10 business days
1990464-16003-00CLAMP$7.99$7.19Usually ships in 7-10 business days
2090464-20237-00CLAMP$2.60$2.34Usually ships in 7-10 business days
21BEY-H2149-00-00WIRE, LEAD 3$22.99$18.85Usually ships in 7-10 business days
22BEY-H2148-00-00WIRE, LEAD 4$22.99$18.85Usually ships in 7-10 business days
23BAS-F3472-00-00PROTECTOR$5.99$5.39Usually ships in 7-10 business days
