2021 Yamaha MT-07 Exhaust OEM Parts Diagram

Submodel MT07 - MT07MCL - 2021

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

EXHAUST

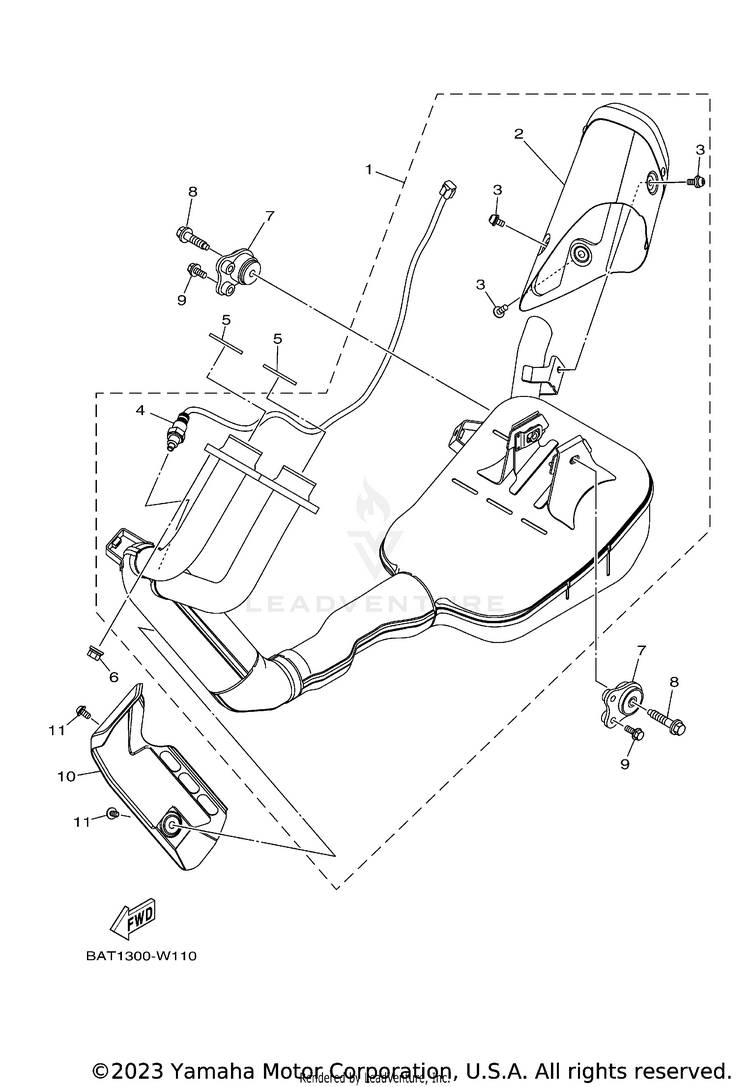

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1BAT-14710-10-00MUFFLER ASSY 1$1,186.99$993.60Usually ships in 7-10 business days
2B4T-14708-00-00PROTECTOR ASSY$255.99$199.67Usually ships in 7-10 business days
390111-06060-00

(replaces part #
90111-06194-00)

BOLT HEX. SOCKET BUTTON$5.49$4.288 In-Stock
4B4T-8592A-00-00SENSOR, OXYGEN$187.99$146.63Usually ships in 7-10 business days
53YF-14613-01-00GASKET, EXHAUST PIPE$14.49$11.3010+ In-Stock
690179-08410-00NUT$6.49$5.0610+ In-Stock
720S-21445-01-00STAY, MUFFLER 1$105.99$82.67Usually ships in 7-10 business days
890105-08164-00BOLT, FLANGE$9.49$8.542 In-Stock
995D34-06016-00BOLT, FLANGE DEEP RECESS$1.50$1.35Usually ships in 7-10 business days
10B4T-1460B-20-00PROTECTOR, MUFFLER$75.99$59.27Usually ships in 7-10 business days
1190111-06060-00

(replaces part #
90111-06194-00)

BOLT HEX. SOCKET BUTTON$5.49$4.288 In-Stock
