2021 Yamaha MT-07 Seat OEM Parts Diagram

Submodel MT07 - MT07MCL - 2021

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SEAT

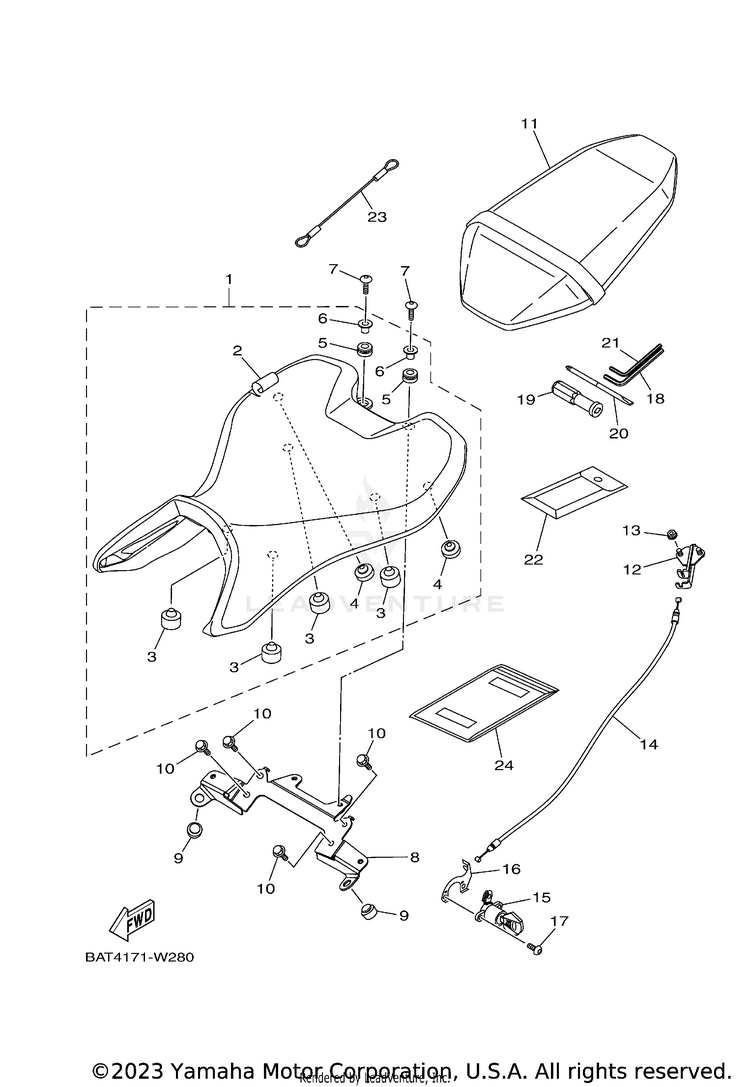

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1B4C-24710-01-00SINGLE SEAT ASSY$158.99$124.01Usually ships in 7-10 business days
2B4C-2470F-01-00. .SEAT COVER COMP.$78.99$61.61Usually ships in 7-10 business days
3371-27114-00-00STOPPER, MAIN STAND$8.49$6.6210+ In-Stock
422W-24741-00-00PAD, SEAT$9.49$7.4010+ In-Stock
590480-14604-00GROMMET$9.49$7.401 In-Stock
690387-07391-00COLLAR$10.49$8.1810+ In-Stock
790111-06139-00BOLT, HEX. SOCKET BUTTON$4.00$3.60Usually ships in 7-10 business days
8BAT-21131-00-00BRACKET$48.99$40.17Usually ships in 7-10 business days
9157-27114-00-00STOPPER, MAIN STAND$10.99$8.571 In-Stock
1095D32-06010-00BOLT, FLANGE DEEP RECESS$0.80$0.72Usually ships in 7-10 business days
11BAT-24750-01-00TANDEM SEAT ASSY$150.99$117.77Usually ships in 7-10 business days
121WS-24780-00-00SEAT LOCK ASSY$15.49$12.70Usually ships in 7-10 business days
1395702-06500-00NUT, WITH WASHER$2.60$2.2410+ In-Stock
14BAT-2478E-00-00CABLE, SEAT LOCK$9.49$8.54Usually ships in 7-10 business days
153CK-W2470-00-00

(replaces part #
2TV-W2470-00-00)

SEAT LOCK ASSY$91.99$71.75Usually ships in 7-10 business days
1623P-2117K-01-00STAY, LOCK$7.49$6.74Usually ships in 7-10 business days
1790149-06030-00SCREW$6.49$5.84Usually ships in 7-10 business days
1814B-28164-00-00WRENCH, HEXAGON 8$4.75$4.28Usually ships in 7-10 business days
192H7-28151-00-00GRIP, DRIVER$7.49$6.74Usually ships in 7-10 business days
20137-28152-00-00DRIVER$4.35$3.92Usually ships in 7-10 business days
2123P-28164-00-00WRENCH, HEXAGON 8$3.65$3.28Usually ships in 7-10 business days
22BAT-28100-00-00TOOL KIT$26.99$22.13Usually ships in 7-10 business days
232S3-21398-00-00HANGER, HELMET$25.99$21.31Usually ships in 7-10 business days
244KG-28186-11-00POUCH$8.49$7.64Usually ships in 7-10 business days
