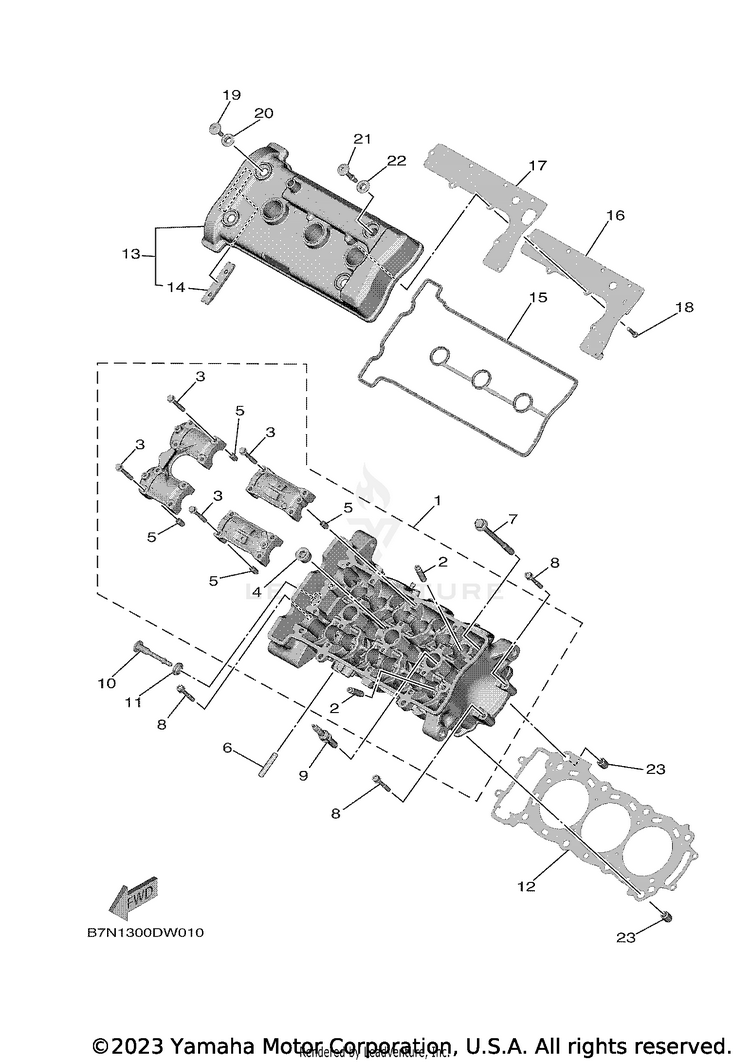

2021 Yamaha MT-09 Cylinder Head OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	B7N-11101-09-00	CYLINDER HEAD ASSY	$1,432.99	$1,197.78	Usually ships in 7-10 business days
2	2C0-11133-11-00	GUIDE, VALVE 1	$69.99	$54.59	Usually ships in 7-10 business days
3	90105-06027-00	BOLT, FLANGE	$8.49	$6.62	10+ In-Stock
4	90340-18002-00	PLUG, STRAIGHT SCREW	$11.49	$9.42	Usually ships in 7-10 business days
5	91808-16023-00	PIN, DOWEL	$7.99	$6.23	10+ In-Stock
6	95612-08625-00	BOLT, STUD	$6.49	$5.06	10+ In-Stock
7	90119-09019-00	BOLT WITH WASHER	$13.49	$11.06	Usually ships in 7-10 business days
8	90109-061F7-00	BOLT	$5.49	$4.94	Usually ships in 7-10 business days
9	94701-00446-00	PLUG, SPARK	$20.99	$17.21	Usually ships in 7-10 business days
10	90109-06293-00	BOLT	$15.49	$12.70	Usually ships in 7-10 business days
11	5VY-1111G-00-00	RUBBER, MOUNT 1	$13.49	$10.52	10+ In-Stock
12	B7N-11181-00-00	GASKET CYLINDER HEAD 1	$50.99	$39.77	1 In-Stock
13	B7N-11191-00-00	COVER CYLINDER HEAD 1 \| MDNM9	$144.99	$114.92	Usually ships in 7-10 business days
14	5BE-12241-01-00	GUIDE, STOPPER 2	$32.99	$25.73	10+ In-Stock
15	B7N-11193-00-00	GASKET, HEAD COVER	$20.99	$17.21	1 In-Stock
16	B7N-11165-00-00	PLATE, BREATHER	$26.99	$22.13	Usually ships in 7-10 business days
17	B7N-11169-00-00	GASKET, BREATHER C	$12.49	$10.24	Usually ships in 7-10 business days
18	90149-05038-00 (replaces part # 90149-05037-00)	SCREW	$2.65	$2.38	Usually ships in 7-10 business days
19	90109-066F0-00	BOLT	$9.49	$7.40	10+ In-Stock
20	5VY-1111G-00-00	RUBBER, MOUNT 1	$13.49	$10.52	10+ In-Stock
21	90109-06271-00	BOLT	$16.49	$13.52	Usually ships in 7-10 business days
22	5VY-1111G-00-00	RUBBER, MOUNT 1	$13.49	$10.52	10+ In-Stock
23	99530-12016-00	PIN, DOWEL	$4.89	$4.21	10+ In-Stock
