2021 Yamaha MT-09 Seat OEM Parts Diagram

Submodel MT09 - MT09MCB - 2021

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SEAT

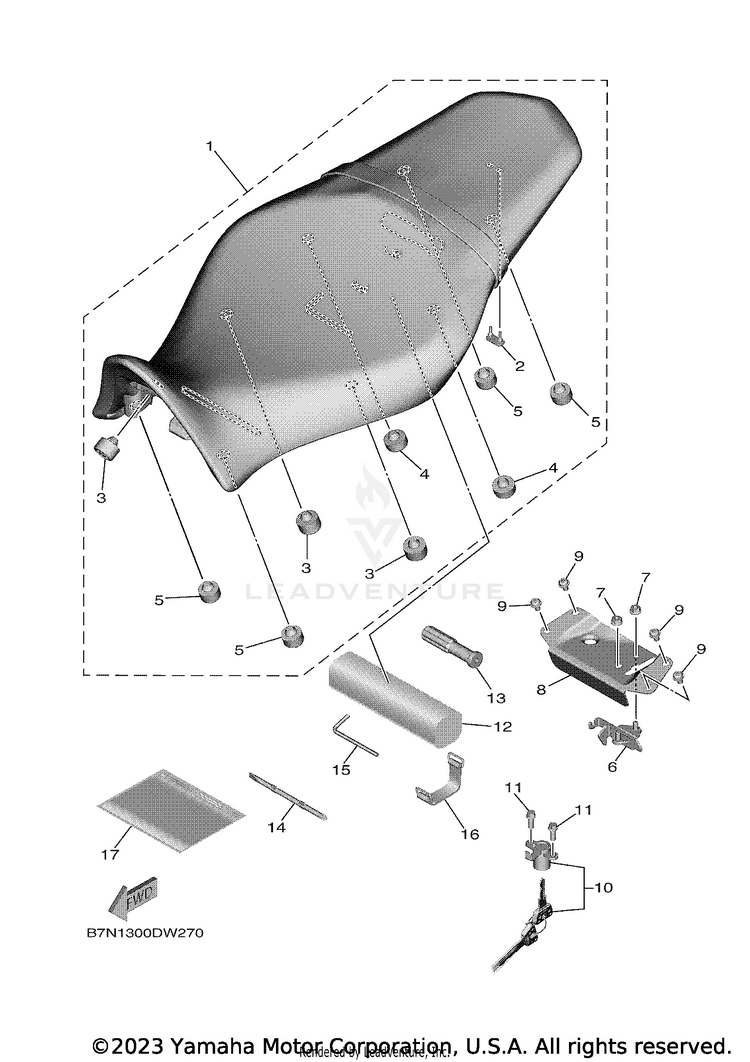

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1B7N-24730-01-00DOUBLE SEAT ASSY$215.99$168.47Usually ships in 7-10 business days
2682-44532-01-00STOPPER, UPPER MOU$2.95$2.66Usually ships in 7-10 business days
3371-27114-00-00STOPPER, MAIN STAND$8.49$6.6210+ In-Stock
4B7N-27114-00-00STOPPER, MAIN STAN$4.20$3.78Usually ships in 7-10 business days
5278-27114-00-00STOPPER, MAIN STAND$9.49$8.54Usually ships in 7-10 business days
6B90-24780-00-00SEAT LOCK ASSY$33.99$27.87Usually ships in 7-10 business days
795702-06500-00NUT, WITH WASHER$2.60$2.2410+ In-Stock
8B7N-2478X-00-00BRACKET, SEAT LOCK$52.99$41.33Usually ships in 7-10 business days
990111-06160-00BOLT,HEX. SOCKET BUT$5.49$4.94Usually ships in 7-10 business days
101RC-W2470-00-00ROTOR SET$79.99$62.39Usually ships in 7-10 business days
1195E32-06016-00BOLT, FLANGE DEEP RECESS-$0.8510+ In-Stock
12B7N-28100-00-00TOOL KIT$42.99$35.25Usually ships in 7-10 business days
132H7-28151-00-00GRIP, DRIVER$7.49$6.74Usually ships in 7-10 business days
142GV-28152-00-00DRIVER$5.99$5.39Usually ships in 7-10 business days
1523P-28164-00-00WRENCH, HEXAGON 8$3.65$3.28Usually ships in 7-10 business days
162T4-82131-00-00BAND, BATTERY$9.99$7.793 In-Stock
17B7N-28186-00-00POUCH$19.49$15.98Usually ships in 7-10 business days
