2023 Yamaha KODIAK 450 4X4 EPS Handle Switch & Lever OEM Parts Diagram

Submodel KODIAK 450 EPS HUNTI - YFM45KPHPF - 2023

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

HANDLE SWITCH & LEVER

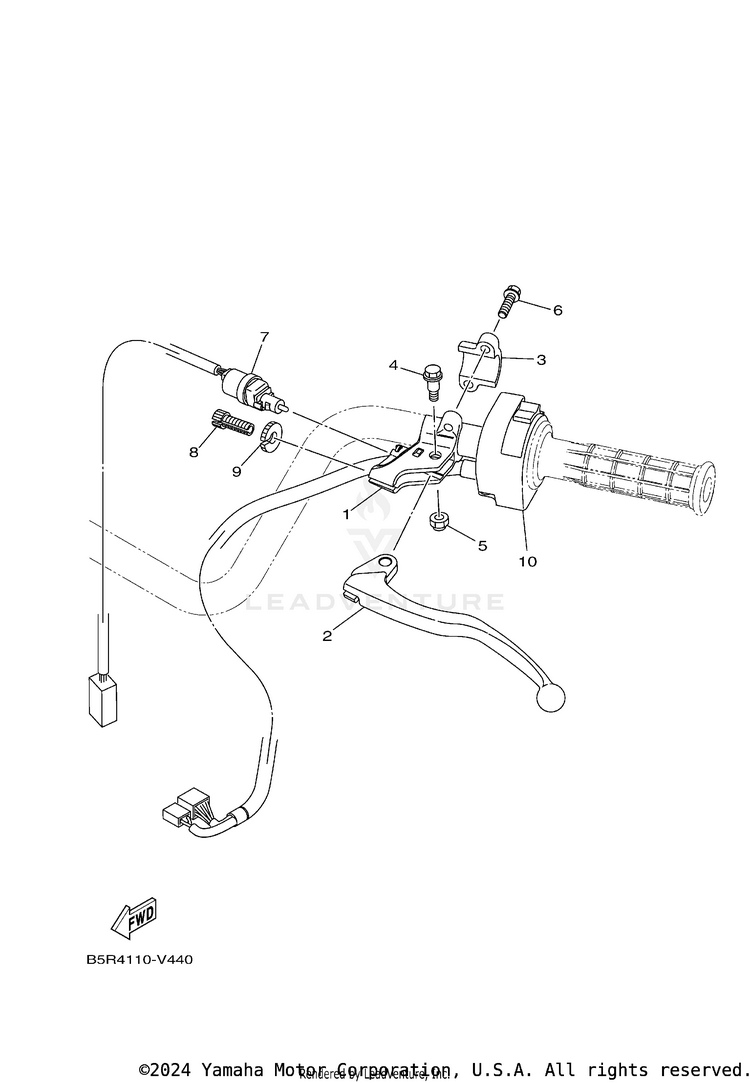

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11YW-82911-10-00HOLDER, LEVER 1$50.99$39.77Usually ships in 7-10 business days
22HT-83912-01-00LEVER 1$43.99$34.313 In-Stock
35LP-82913-11-00HOLDER, LEVER LOWER 1$15.49$12.70Usually ships in 7-10 business days
490109-06799-00BOLT$5.49$4.288 In-Stock
595617-06100-00

(replaces part #
95607-06100-00)

NUT, U$2.90$2.4910+ In-Stock
695027-06020-00BOLT, FLANGE-$2.8110+ In-Stock
73FA-83980-03-00FRONT STOP SWITCH ASSY$77.99$60.835 In-Stock
890123-08002-00BOLT$10.49$8.1810+ In-Stock
990179-08030-00NUT$10.49$8.1810+ In-Stock
1028P-83972-01-00

(replaces part #
28P-83972-00-00)

SWITCH, HANDLE 4$134.99$110.66Usually ships in 7-10 business days
