CRANKCASE

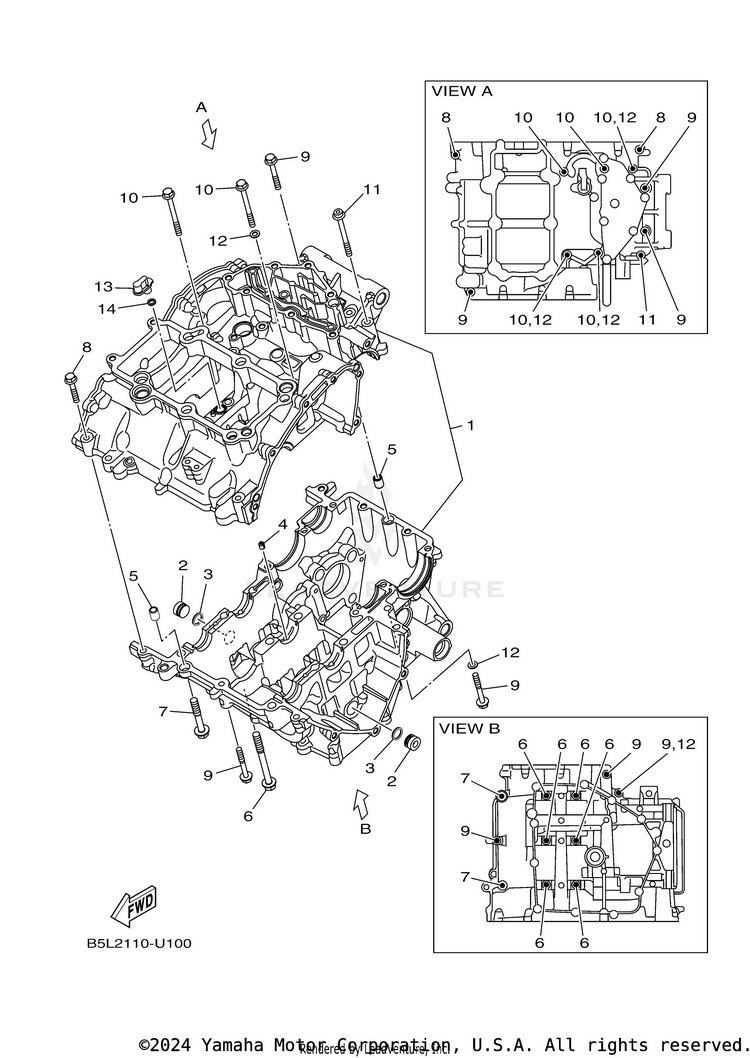

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11WD-E5150-20-00CRANKCASE ASSY | MBL2$366.99$302.94Usually ships in 7-10 business days
290338-16262-00PLUG$16.49$13.52Usually ships in 7-10 business days
393210-12803-00O-RING$2.35$2.12Usually ships in 7-10 business days
41WD-E5148-00-00NOZZLE 2$2.70$2.43Usually ships in 7-10 business days
599530-10114-00

(replaces part #
99530-10014-00)

PIN, DOWEL$2.65$2.4810+ In-Stock
690105-088F7-00BOLT, FLANGE$33.99$27.87Usually ships in 7-10 business days
790105-088G0-00BOLT, FLANGE$3.00$2.70Usually ships in 7-10 business days
895812-06035-00BOLT, FLANGE$5.49$4.941 In-Stock
995817-06045-00

(replaces part #
95812-06045-00)

BOLT, FLANGE$9.49$7.4010+ In-Stock
1095812-06065-00BOLT, FLANGE$6.49$5.84Usually ships in 7-10 business days
1190110-06882-00BOLT, HEXAGON SOCKET$32.99$27.05Usually ships in 7-10 business days
1290430-06014-00GASKET$8.99$7.0110+ In-Stock
131WD-E5155-00-00NOZZLE 3$8.99$8.09Usually ships in 7-10 business days
1493210-06632-00

(replaces part #
93210-068F7-00)

O-RING$9.49$7.4010+ In-Stock
