2023 Yamaha MT-03 Generator OEM Parts Diagram

Submodel MT-03 - MT03PL - 2023

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

GENERATOR

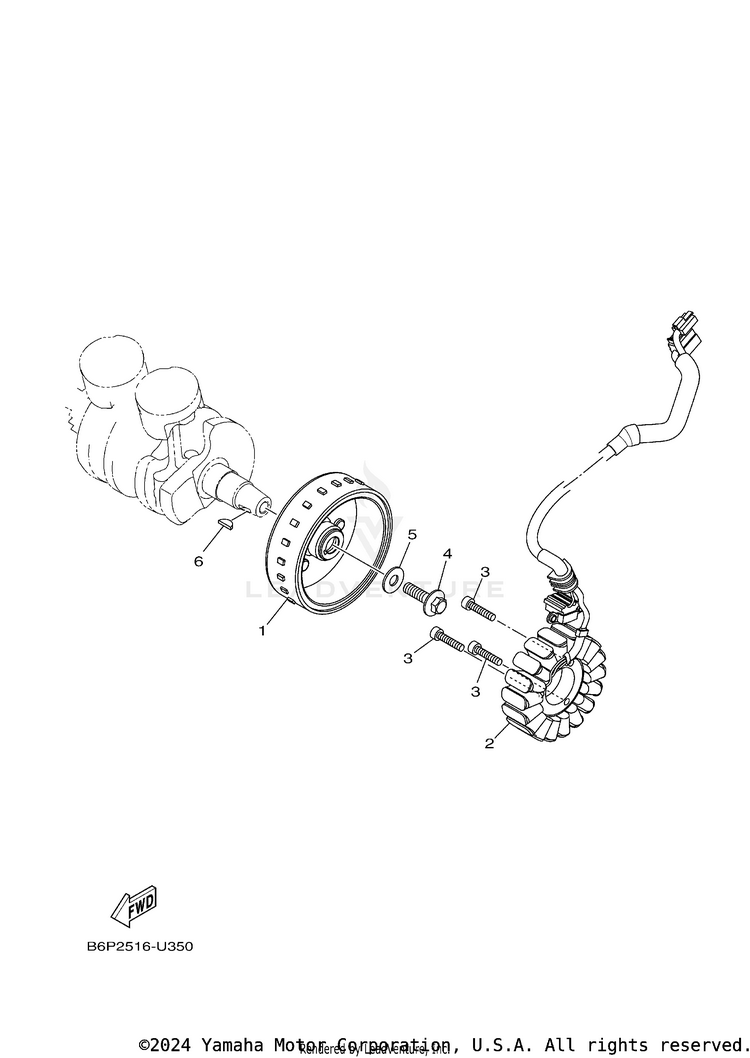

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11WD-H1450-00-00ROTOR ASSY$162.99$131.88Usually ships in 7-10 business days
2BS7-H1410-10-00

(replaces part #
BS7-H1410-00-00)

STATOR ASSY.$173.99$135.71Usually ships in 7-10 business days
390110-06138-00

(replaces part #
90110-06177-00)

BOLT$6.49$5.0610+ In-Stock
490105-10883-00BOLT, FLANGE$46.99$38.53Usually ships in 7-10 business days
590201-10848-00WASHER, PLATE$4.65$4.18Usually ships in 7-10 business days
690280-05001-00

(replaces part #
90280-05013-00)

KEY, WOODRUFF$13.49$10.5210+ In-Stock
