2023 Yamaha TTR 110E Crankcase OEM Parts Diagram

Submodel TTR110E - TTR110EPC - 2023

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

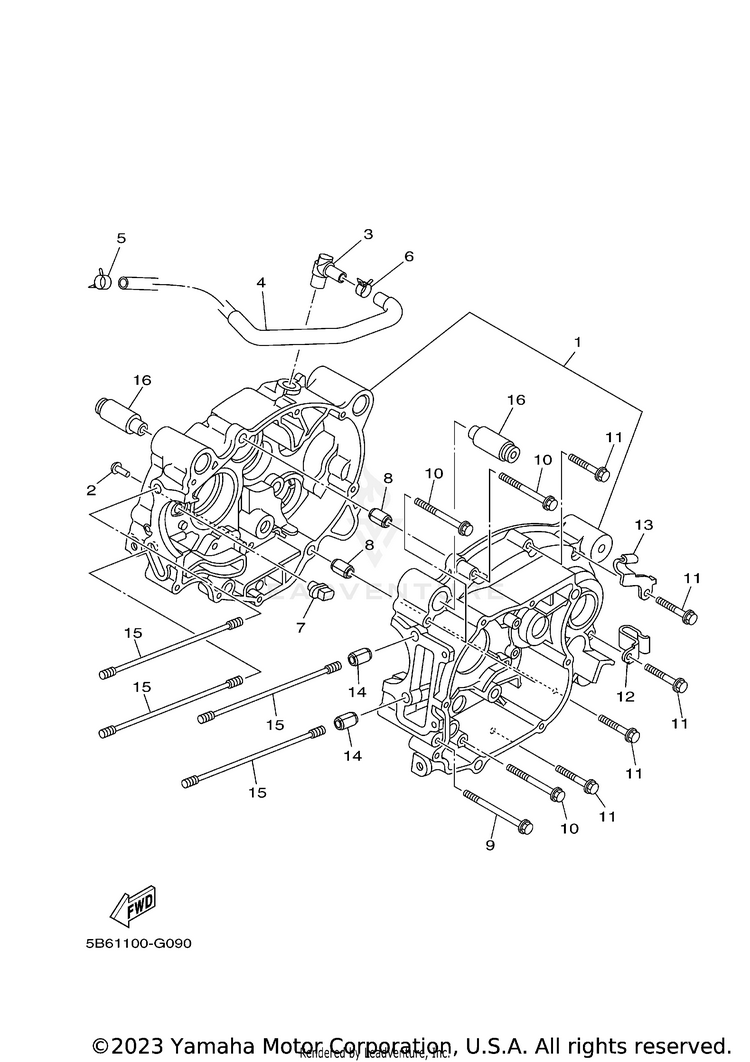

CRANKCASE

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
13S0-E5150-01-00CRANKCASE ASSY$246.99$202.33Usually ships in 7-10 business days
2132-16346-00-00

(replaces part #
5HV-E6346-00-00)

HOOK, SPRING$10.99$8.578 In-Stock
35B6-E5371-00-00BREATHER$9.49$8.541 In-Stock
45B6-E1166-00-00PIPE, BREATHER 1$14.49$12.31Usually ships in 7-10 business days
590467-13133-00

(replaces part #
90467-13064-00)

CLIP$9.49$7.4010+ In-Stock
690467-13808-00CLIP$0.55$0.50Usually ships in 7-10 business days
75TP-E5155-00-00NOZZLE 3$3.00$2.70Not Shipping
891810-14809-00PIN, DOWEL$2.95$2.5410+ In-Stock
995022-06080-00

(replaces part #
9502L-06080-00)

BOLT, FLANGE$4.60$3.964 In-Stock
1095022-06060-00BOLT, FLANGE$9.49$7.403 In-Stock
1195022-06040-00BOLT, FLANGE$3.70$3.1810+ In-Stock
1290465-10833-00CLAMP$0.70$0.63Usually ships in 7-10 business days
1390462-10801-00CLAMP$3.10$2.79Usually ships in 7-10 business days
1491810-14809-00PIN, DOWEL$2.95$2.5410+ In-Stock
1590116-08807-00BOLT, STUD$12.99$10.65Usually ships in 7-10 business days
165VT-E5316-10-00

(replaces part #
5TP-E5316-00-00)

DAMPER, ENGINE MOUNT$8.49$6.628 In-Stock
