2023 Yamaha TTR 110E Starter OEM Parts Diagram

Submodel TTR110E - TTR110EPC - 2023

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

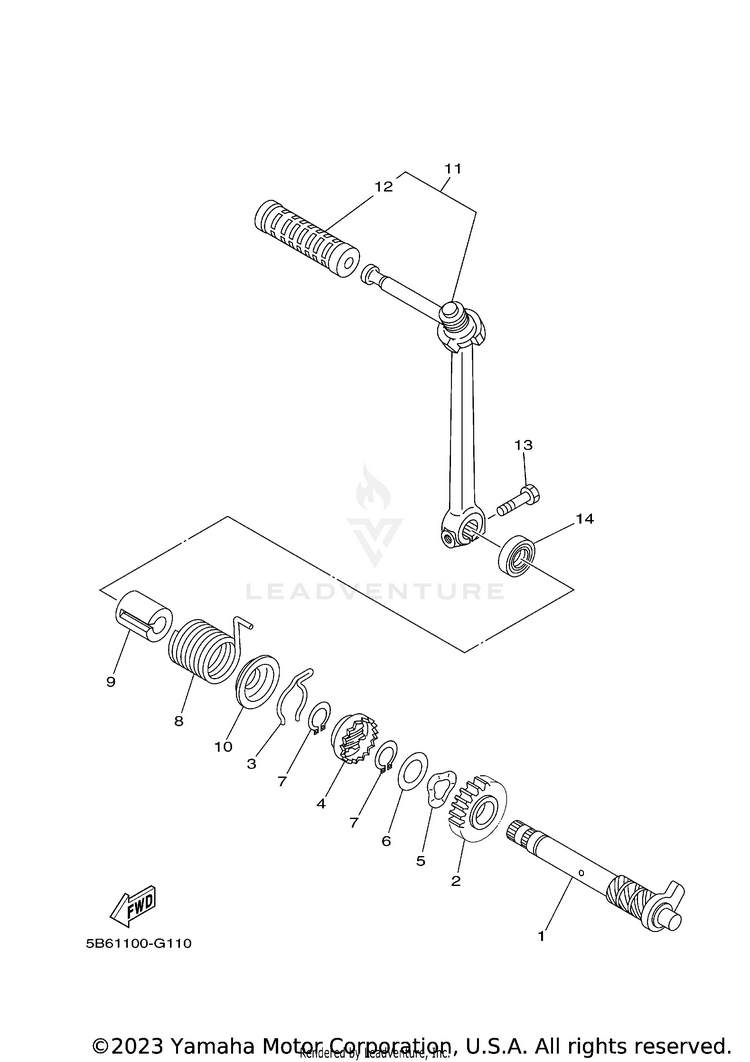

STARTER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15TP-E5660-00-00KICK AXLE ASSY$46.99$38.53Usually ships in 7-10 business days
25LM-E5641-00-00GEAR, KICK$15.49$12.70Usually ships in 7-10 business days
390468-23194-00CLIP$10.49$8.186 In-Stock
4296-15671-00-00

(replaces part #
4WH-E5671-00-00)

WHEEL, RATCHET$53.99$42.11Usually ships in 7-10 business days
590206-19027-00WASHER, WAVE$8.49$7.64Usually ships in 7-10 business days
6296-15644-00-00

(replaces part #
4WH-E5644-00-00)

SHIM$5.99$5.39Usually ships in 7-10 business days
799009-19400-00CIRCLIP$9.49$7.407 In-Stock
890508-26016-00SPRING, TORSION$5.49$4.94Usually ships in 7-10 business days
93S0-E5664-00-00GUIDE, SPRING$1.45$1.30Usually ships in 7-10 business days
105LM-E5664-00-00GUIDE, SPRING-$1.76Usually ships in 7-10 business days
115B6-15620-00-00KICK CRANK ASSY$137.99$107.632 In-Stock
12156-15618-01-00COVER, KICK LEVER$8.49$6.6210+ In-Stock
1397017-06025-00BOLT$4.55$3.9110+ In-Stock
1493102-15890-00OIL SEAL$5.49$4.285 In-Stock
