2023 Yamaha WR250F Steering OEM Parts Diagram

Submodel WR250F - WR250FP2 - 2023

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STEERING

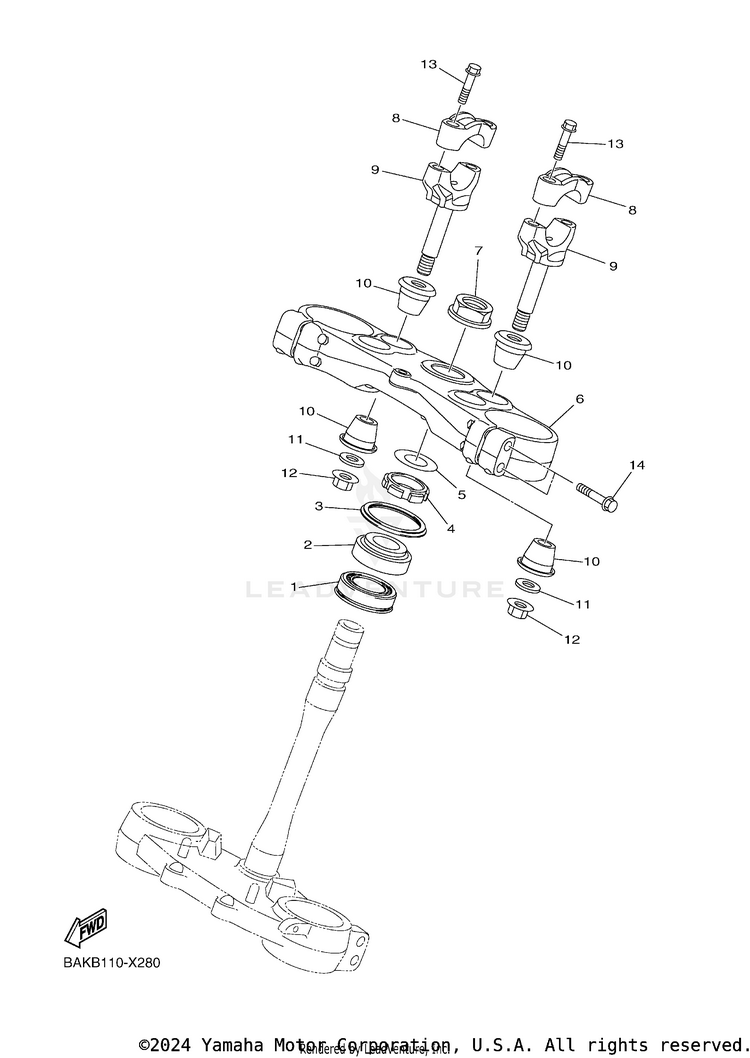

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
193332-00081-00BEARING$63.99$52.9410+ In-Stock
AFTERMARKET ALTERNATIVE
$47.99$43.9910+ In-Stock
293332-00078-00

(replaces part #
93332-00068-00)

BEARING$70.99$55.9410+ In-Stock
AFTERMARKET ALTERNATIVE
$48.00$38.9910+ In-Stock
317D-23416-50-00COVER, BALL RACE 2$36.99$28.8510+ In-Stock
490179-28015-00NUT$41.99$32.755 In-Stock
590201-28020-00WASHER, PLATE$4.75$4.08Not Shipping
6B2W-23435-00-00CROWN, HANDLE$143.99$112.313 In-Stock
790179-24004-00NUT$29.99$23.394 In-Stock
8B2W-23441-00-00HOLDER, HANDLE UPP$34.99$27.2910+ In-Stock
9B2W-23442-10-00HOLDER, HANDLE LOWER$43.99$34.3110+ In-Stock
101SL-23434-00-00HOLDER, DAMPER$10.99$8.5710+ In-Stock
1190201-10035-00WASHER, PLATE$4.50$3.8710+ In-Stock
1295602-10200-00NUT, S/L FLANGE$2.70$2.3210+ In-Stock
1395E34-08030-00BOLT, FLANGE DEEP$2.25$1.9410+ In-Stock
1495E34-08035-00BOLT, FLANGE DEEP$2.85$2.4510+ In-Stock
