SEAT

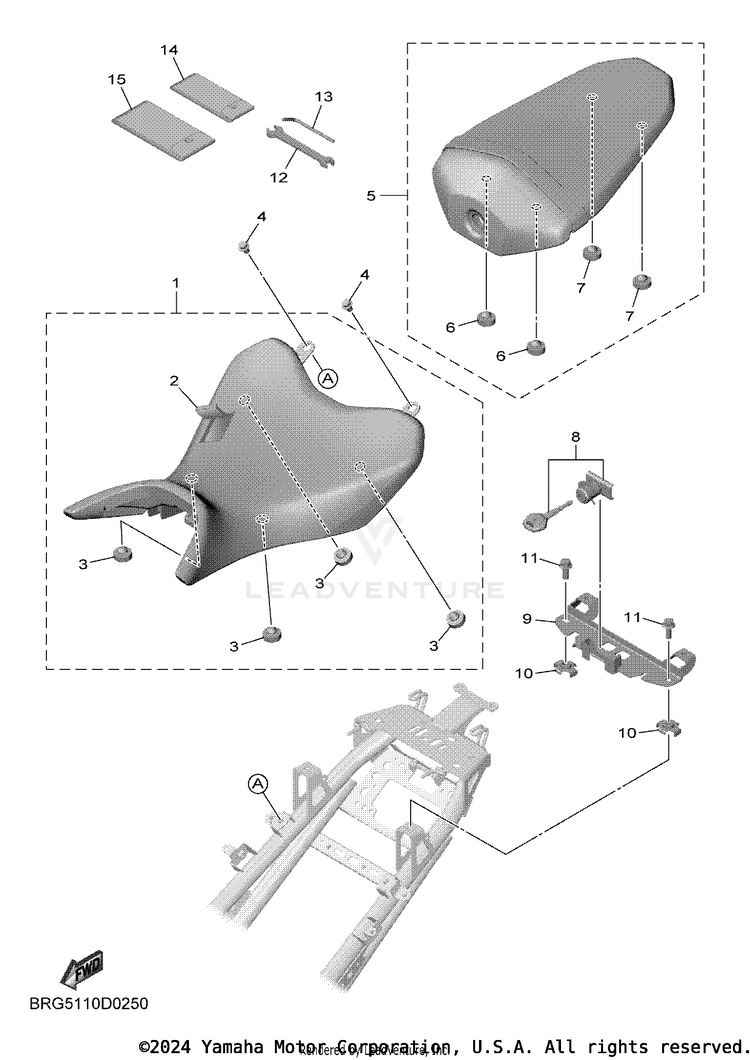

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1BRA-F4710-00-00SINGLE SEAT ASSY$83.99$65.51Usually ships in 7-10 business days
2BRA-F4711-00-00. .COVER, SINGLE SEAT$16.99$13.93Usually ships in 7-10 business days
35BP-F4741-00-00PAD, SEAT$3.50$3.15Usually ships in 7-10 business days
495E37-08012-00BOLT, FLANGE DEEP RECESS$0.50$0.45Usually ships in 7-10 business days
5BRG-F4750-00-00TANDEM SEAT ASSY$71.99$56.15Usually ships in 7-10 business days
65BP-F4741-00-00PAD, SEAT$3.50$3.15Usually ships in 7-10 business days
73C1-F4741-00-00PAD, SEAT$2.35$2.12Usually ships in 7-10 business days
8BRA-WF470-00-00ROTOR SET$56.99$45.13Usually ships in 7-10 business days
9BRA-F475J-00-00BRACKET, SEAT LEVER 2$21.99$18.03Usually ships in 7-10 business days
10BRA-F4725-00-00SPACER 1$4.45$4.00Usually ships in 7-10 business days
1195D32-08020-00BOLT, FLANGE DEEP RE-$1.02Usually ships in 7-10 business days
12BRA-F8122-00-00SPANNER 8-10$3.70$3.33Usually ships in 7-10 business days
131S7-F816B-00-00WRENCH, HEXAGON$2.20$1.98Usually ships in 7-10 business days
14BRA-F8100-00-00TOOL KIT$12.49$10.24Usually ships in 7-10 business days
15B3M-F8186-00-00POUCH$1.75$1.58Usually ships in 7-10 business days
