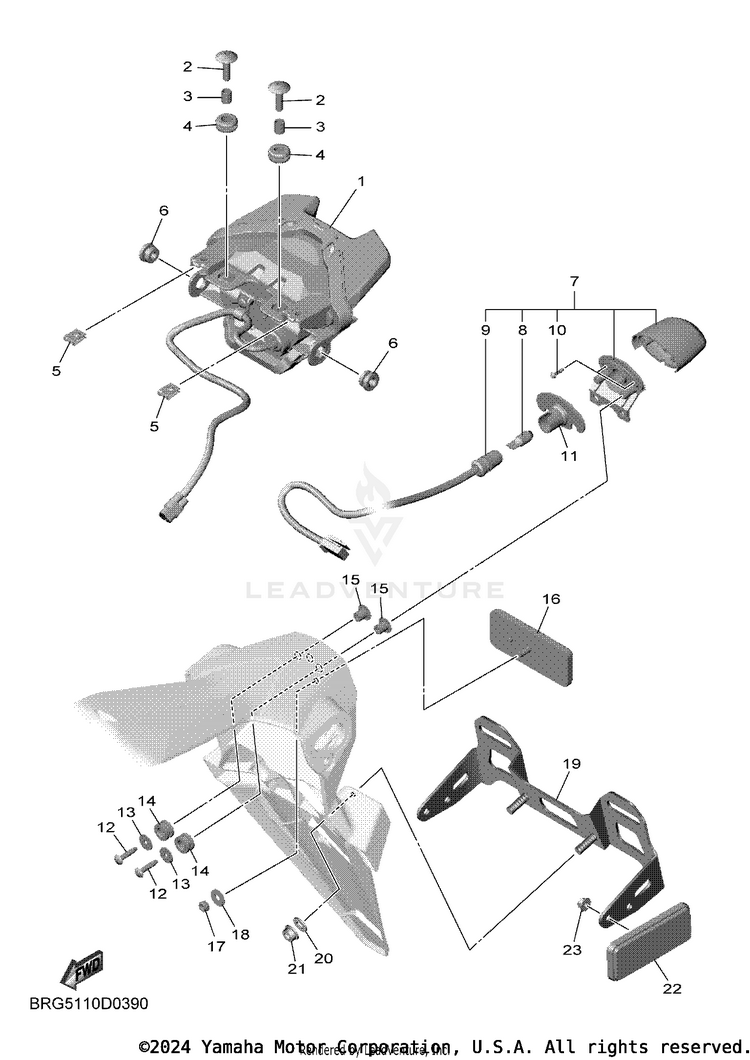

2025 Yamaha MT-03 Taillight OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	B4C-84710-02-00 (replaces part # B6S-H4710-02-00)	TAILLIGHT UNIT ASSY	$138.99	$108.41	Usually ships in 7-10 business days
2	90111-06117-00	BOLT, HEX. SOCKET BUTTON	$2.80	$2.52	Usually ships in 7-10 business days
3	90387-067V1-00	COLLAR	$3.30	$2.84	7 In-Stock
4	90480-13001-00	GROMMET	$1.30	$1.17	Usually ships in 7-10 business days
5	90183-05042-00 (replaces part # 90183-05807-00)	NUT, SPRING	-	$3.20	10+ In-Stock
6	90480-10003-00	GROMMET	$9.49	$8.54	Usually ships in 7-10 business days
7	BS7-H4740-10-00	LICENSE LIGHT ASSY	$25.99	$21.31	Usually ships in 7-10 business days
8	1WD-H4744-00-00	BULB (12V-5W)	$13.49	$11.06	Usually ships in 7-10 business days
9	BS7-H4547-00-00	CORD, LICENSE LIGH	$5.99	$5.39	Usually ships in 7-10 business days
10	1WD-H4726-00-00	SCREW	$0.50	$0.45	Usually ships in 7-10 business days
11	1WD-H4753-00-00	DAMPER	$1.30	$1.17	Usually ships in 7-10 business days
12	97707-40020-00	SCREW, TAPPING	$0.75	$0.68	Usually ships in 7-10 business days
13	90201-047A2-00 (replaces part # 90201-04804-00)	WASHER, PLATE	$4.00	$3.44	5 In-Stock
14	90480-11009-00	GROMMET	$1.20	$1.08	Usually ships in 7-10 business days
15	90387-05042-00	COLLAR	$6.49	$5.84	4 In-Stock
16	3C1-H5130-00-00	REAR REFLECTOR ASSY	$4.20	$3.78	Usually ships in 7-10 business days
17	95617-05100-00 (replaces part # 95602-05100-00)	NUT, U	$10.49	$8.18	10+ In-Stock
18	90201-05043-00	WASHER, PLATE	$8.49	$7.64	Usually ships in 7-10 business days
19	2MS-H4751-00-00	BRACKET, LICENSE	$14.49	$11.88	Usually ships in 7-10 business days
20	90201-06055-00	WASHER, PLATE	-	$3.46	4 In-Stock
21	95604-06200-00 (replaces part # 95607-06200-00)	NUT, U FLANGE	$2.95	$2.54	10+ In-Stock
22	3C1-H5130-00-00	REAR REFLECTOR ASSY	$4.20	$3.78	Usually ships in 7-10 business days
23	95707-05500-00	NUT, FLANGE	$9.49	$7.40	10+ In-Stock

1

B4C-84710-02-00

(replaces part #
B6S-H4710-02-00)

TAILLIGHT UNIT ASSY

$138.99

$108.41

Usually ships in 7-10 business days
