2025 Yamaha MT-07 Seat OEM Parts Diagram

Submodel MT07 - MT07SCL - 2025

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

SEAT

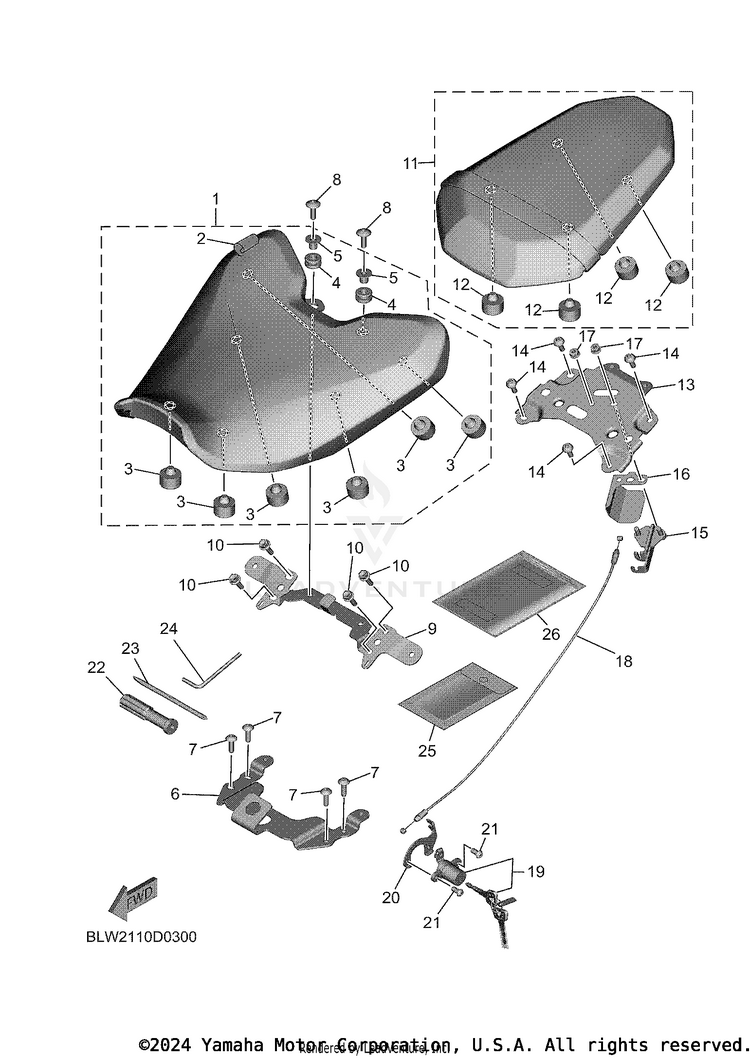

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1BLW-24710-00-00SINGLE SEAT ASSY$179.99$140.39Usually ships in 7-10 business days
2BLW-2470F-00-00. .SEAT COVER COMP.$66.99$52.25Usually ships in 7-10 business days
34GL-27114-00-00STOPPER, MAIN STAND$17.99$14.751 In-Stock
490480-14604-00GROMMET$9.49$7.401 In-Stock
590387-07391-00COLLAR$10.49$8.1810+ In-Stock
6BLW-21341-00-00BRACKET, SEAT 1$50.99$39.77Usually ships in 7-10 business days
790111-06155-00BOLT, HEX. SOCKET BUTTON$2.30$1.9810+ In-Stock
890111-06117-00BOLT, HEX. SOCKET BUTTON$2.80$2.52Usually ships in 7-10 business days
9BLW-21131-00-00BRACKET$51.99$40.55Usually ships in 7-10 business days
1095D32-06020-00BOLT, FLANGE DEEP RECESS$1.35$1.22Usually ships in 7-10 business days
11BLW-24750-00-00TANDEM SEAT ASSY$151.99$118.55Usually ships in 7-10 business days
12371-27114-00-00STOPPER, MAIN STAND$8.49$6.6210+ In-Stock
13BLW-2471A-00-00STAY, SEAT$35.99$29.51Usually ships in 7-10 business days
1490111-06029-00BOLT, HEX. SOCKET BUTTON$6.49$5.0610+ In-Stock
151WD-F4780-00-00SEAT LOCK ASSY$20.99$17.42Usually ships in 7-10 business days
16BLW-2472T-00-00COVER, SEAT LOCK$8.49$7.64Usually ships in 7-10 business days
1795702-06500-00NUT, WITH WASHER$2.60$2.2410+ In-Stock
18BLW-2478E-00-00CABLE, SEAT LOCK$8.99$8.09Usually ships in 7-10 business days
193CK-W2470-00-00

(replaces part #
2TV-W2470-00-00)

SEAT LOCK ASSY$91.99$71.75Usually ships in 7-10 business days
2023P-2117K-01-00STAY, LOCK$7.49$6.74Usually ships in 7-10 business days
2190149-06030-00SCREW$6.49$5.84Usually ships in 7-10 business days
222H7-28151-00-00GRIP, DRIVER$7.49$6.74Usually ships in 7-10 business days
23137-28152-00-00DRIVER$4.35$3.92Usually ships in 7-10 business days
2423P-28164-00-00WRENCH, HEXAGON 8$3.65$3.28Usually ships in 7-10 business days
25BAT-28100-00-00TOOL KIT$26.99$22.13Usually ships in 7-10 business days
264KG-28186-11-00POUCH$8.49$7.64Usually ships in 7-10 business days
