2025 Yamaha MT-07 Taillight OEM Parts Diagram

Submodel MT07 - MT07SCL - 2025

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

TAILLIGHT

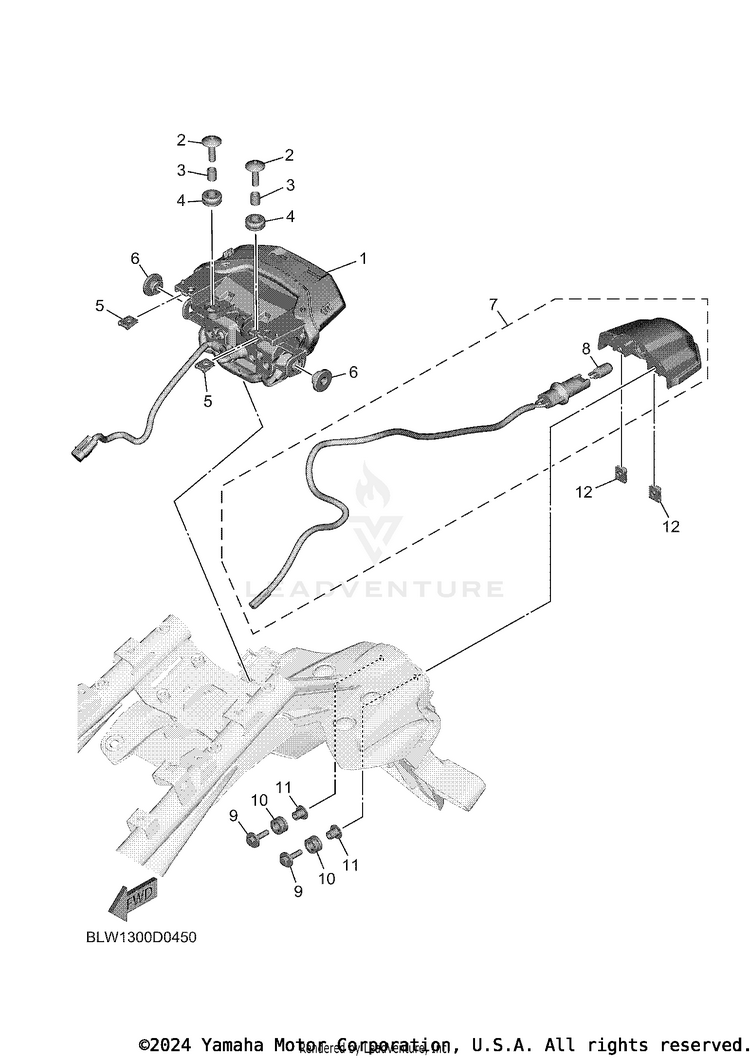

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1BLW-84700-00-00TAILLIGHT ASSY$69.99$54.59Usually ships in 7-10 business days
290111-06137-00BOLT, HEX. SOCKET BUTTON$6.49$5.0610+ In-Stock
390387-067V1-00COLLAR$3.30$2.847 In-Stock
490480-13001-00GROMMET$1.30$1.17Usually ships in 7-10 business days
590183-05042-00NUT, SPRING-$3.2010+ In-Stock
690480-10016-00GROMMET$3.95$3.56Usually ships in 7-10 business days
72PN-84745-02-00LICENCE LIGHT UNIT ASSY$45.99$37.71Usually ships in 7-10 business days
82DP-H4347-00-00BULB (12V-5W)$8.49$7.64Usually ships in 7-10 business days
990119-05020-00BOLT, WITH WASHER$10.49$8.1810+ In-Stock
1090387-05042-00COLLAR$6.49$5.844 In-Stock
1190480-11009-00GROMMET$1.20$1.08Usually ships in 7-10 business days
1290183-050A6-00

(replaces part #
90183-05076-00)

NUT, SPRING$2.95$2.547 In-Stock
