2026 Yamaha MT-07 Intake 2 OEM Parts Diagram

Submodel MT07 - MT07TCB - 2026

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

INTAKE 2

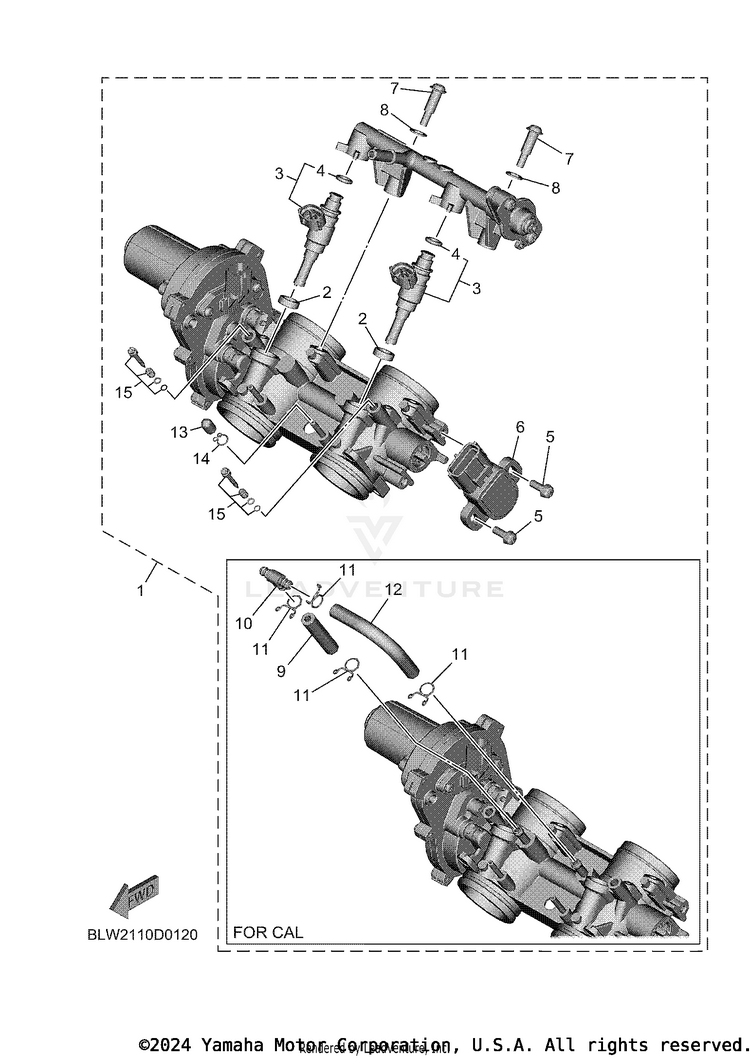

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1BLW-13750-10-00THROTTLE BODY ASSY | FOR U49$889.99$744.96Usually ships in 7-10 business days
1BLW-13750-00-00THROTTLE BODY ASSY | FOR CAL$889.99$744.96Usually ships in 7-10 business days
28FP-13556-00-00RUBBER, INJECTOR$15.49$12.0810+ In-Stock
31WS-13761-10-00

(replaces part #
1WS-13761-00-00)

INJECTOR-$127.53Usually ships in 7-10 business days
45PS-14147-00-00O-RING$14.49$11.3010+ In-Stock
58CC-14216-10-00SCREW$8.99$7.019 In-Stock
6B7M-85885-01-00THROTTLE SENSOR ASSY$120.99$94.37Usually ships in 7-10 business days
714B-13573-00-00BOLT 1$7.49$6.74Usually ships in 7-10 business days
8363-14198-00-00GASKET$12.49$9.7410+ In-Stock
914B-14466-00-00PIPE | FOR CAL$27.99$22.95Usually ships in 7-10 business days
1090413-06031-00WAY 3 | FOR CAL$9.49$8.54Usually ships in 7-10 business days
1190467-090A2-00CLIP | FOR CAL$4.75$4.0810+ In-Stock
121WS-14465-00-00PIPE | FOR CAL$37.99$31.15Usually ships in 7-10 business days
13895-14169-00-00CAP$5.99$4.676 In-Stock
148A7-14139-00-00CLIP, PIPE$9.49$7.403 In-Stock
152C0-14105-00-00PILOT SCREW SET$37.99$31.15Usually ships in 7-10 business days
