2026 Yamaha MT-07 Intake OEM Parts Diagram

Submodel MT07 - MT07TCB - 2026

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

INTAKE

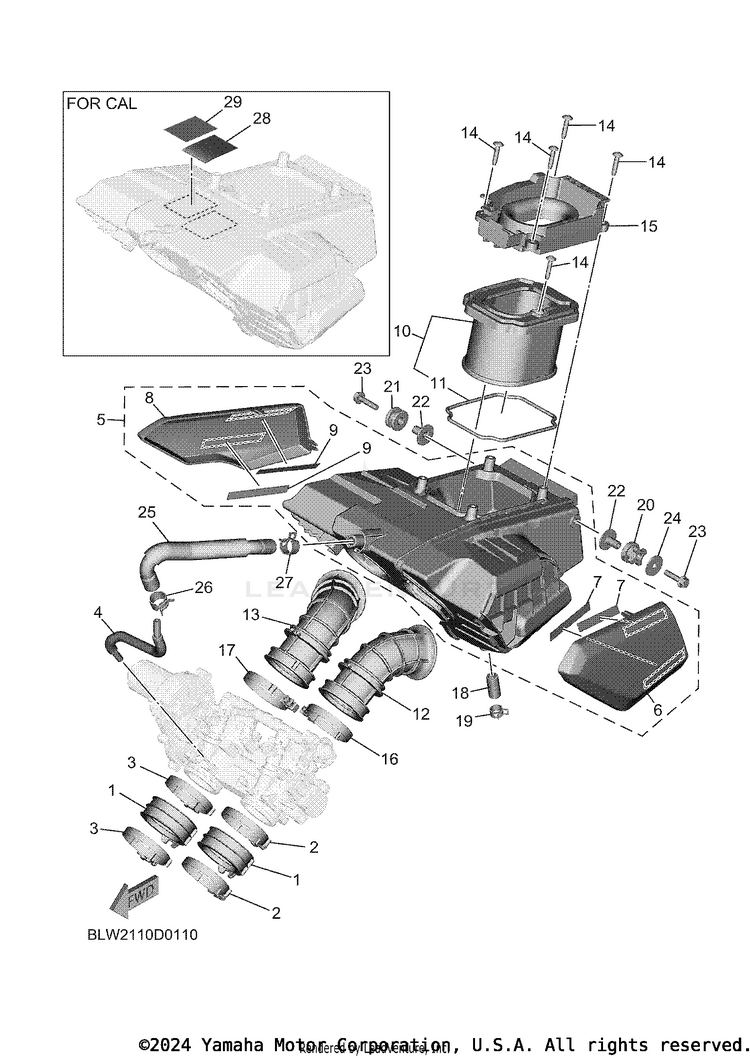

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
11WS-13635-00-00JOINT, INTAKE 1$30.99$25.41Usually ships in 7-10 business days
290450-56011-00HOSE CLAMP ASSY$15.49$12.082 In-Stock
390450-56012-00HOSE CLAMP ASSY$36.99$30.33Usually ships in 7-10 business days
4BLW-13542-00-00HOSE, VACUUM SENSI$11.49$9.42Usually ships in 7-10 business days
5BLW-14401-00-00AIR CLEANER CASE ASSY$88.99$69.41Usually ships in 7-10 business days
6BLW-14417-00-00COVER 1$16.49$13.52Usually ships in 7-10 business days
71RC-2111D-01-00

(replaces part #
1RC-2111D-00-00)

. .SEAL 1$5.49$4.94Usually ships in 7-10 business days
8BLW-14418-00-00COVER 2$15.49$12.70Usually ships in 7-10 business days
91RC-2111D-01-00

(replaces part #
1RC-2111D-00-00)

. .SEAL 1$5.49$4.94Usually ships in 7-10 business days
101WS-14450-00-00ELEMENT ASSY, AIR CLEANER$43.99$34.3110+ In-Stock
111WS-14452-00-00SEAL$8.49$6.623 In-Stock
12BLW-14469-00-00FUNNEL, AIR$26.99$22.13Usually ships in 7-10 business days
13BLW-1446C-00-00FUNNEL 2$25.99$21.31Usually ships in 7-10 business days
1490160-05013-00SCREW, ROUND TAPPING$9.49$7.408 In-Stock
15BLW-14437-00-00DUCT$41.99$34.43Usually ships in 7-10 business days
1690450-56012-00HOSE CLAMP ASSY$36.99$30.33Usually ships in 7-10 business days
1790450-56011-00HOSE CLAMP ASSY$15.49$12.082 In-Stock
181WS-1443E-00-00PIPE, DRAIN$4.65$4.18Usually ships in 7-10 business days
1990467-13133-00

(replaces part #
90467-13083-00)

CLIP$9.49$7.4010+ In-Stock
2090480-15001-00GROMMET$9.49$8.545 In-Stock
2190480-15014-00GROMMET$4.60$4.14Usually ships in 7-10 business days
2290387-06300-00COLLAR$8.49$7.645 In-Stock
2395817-06025-00BOLT, FLANGE$5.49$4.2810+ In-Stock
2490201-064K6-00WASHER, PLATE$10.49$8.1810+ In-Stock
25BLW-11166-00-00PIPE, BREATHER 1$35.99$29.51Usually ships in 7-10 business days
2690467-17128-00CLIP$9.49$7.4010+ In-Stock
2790467-160A2-00CLIP$6.49$5.062 In-Stock
28BAT-21686-00-00PLATE, ROUTING 2 | FOR CAL$9.49$8.54Usually ships in 7-10 business days
2934B-21684-01-00PLATE, ROUTING | FOR CAL$4.35$3.92Usually ships in 7-10 business days
