2026 Yamaha MT-09 SP Rear Suspension OEM Parts Diagram

Submodel MT09 SP - MT09SPTCS - 2026

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

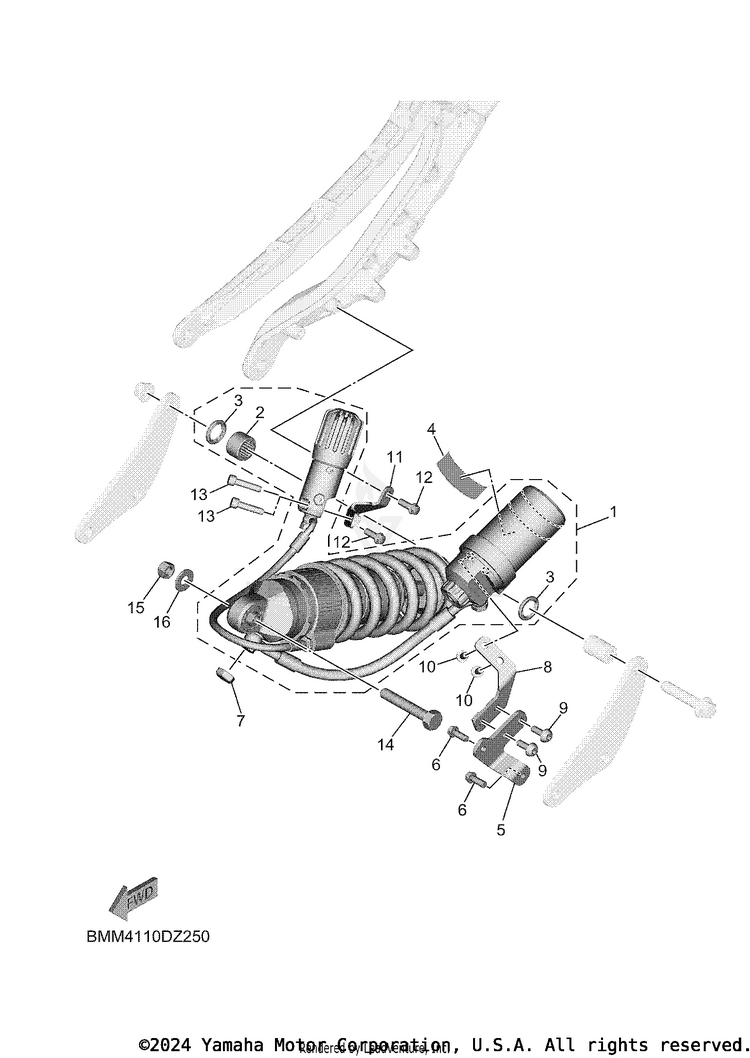

REAR SUSPENSION

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1BMM-22210-01-00SHOCK ABSORBER ASSY, REAR$2,016.99$1,762.81Usually ships in 7-10 business days
293315-31758-00BEARING$44.99$35.0910+ In-Stock
393109-17071-00OIL SEAL$8.49$6.6210+ In-Stock
44AA-22259-80-00LABEL, WARNING$14.49$11.30
5BAM-2216C-00-00BRACKET 2$11.49$9.42Usually ships in 7-10 business days
690105-06696-00

(replaces part #
95027-06016-00)

BOLT, FLANGE$10.49$8.1810+ In-Stock
7BMM-22117-00-00CAP$7.99$7.19Usually ships in 7-10 business days
8BMM-2216B-00-00BRKT., 1$22.99$18.85Usually ships in 7-10 business days
990111-06029-00BOLT, HEX. SOCKET BUTTON$6.49$5.0610+ In-Stock
1095027-06012-00

(replaces part #
90105-06050-00)

BOLT, FLANGE$4.20$3.6110+ In-Stock
11BMM-22163-00-00BRACKET$16.49$13.52Usually ships in 7-10 business days
1290105-06696-00

(replaces part #
95027-06016-00)

BOLT, FLANGE$10.49$8.1810+ In-Stock
1391314-06025-00BOLT, HEXAGON SOCKET HEAD$9.49$7.407 In-Stock
1490101-10042-00BOLT$4.40$3.96Usually ships in 7-10 business days
1595602-10100-00NUT, U$8.49$7.644 In-Stock
1690201-101J1-00WASHER, PLATE$9.49$7.4010+ In-Stock
