2026 Yamaha MT-10 SP Front Fork OEM Parts Diagram

Submodel MT10 SP - MT10SPTCS - 2026

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT FORK

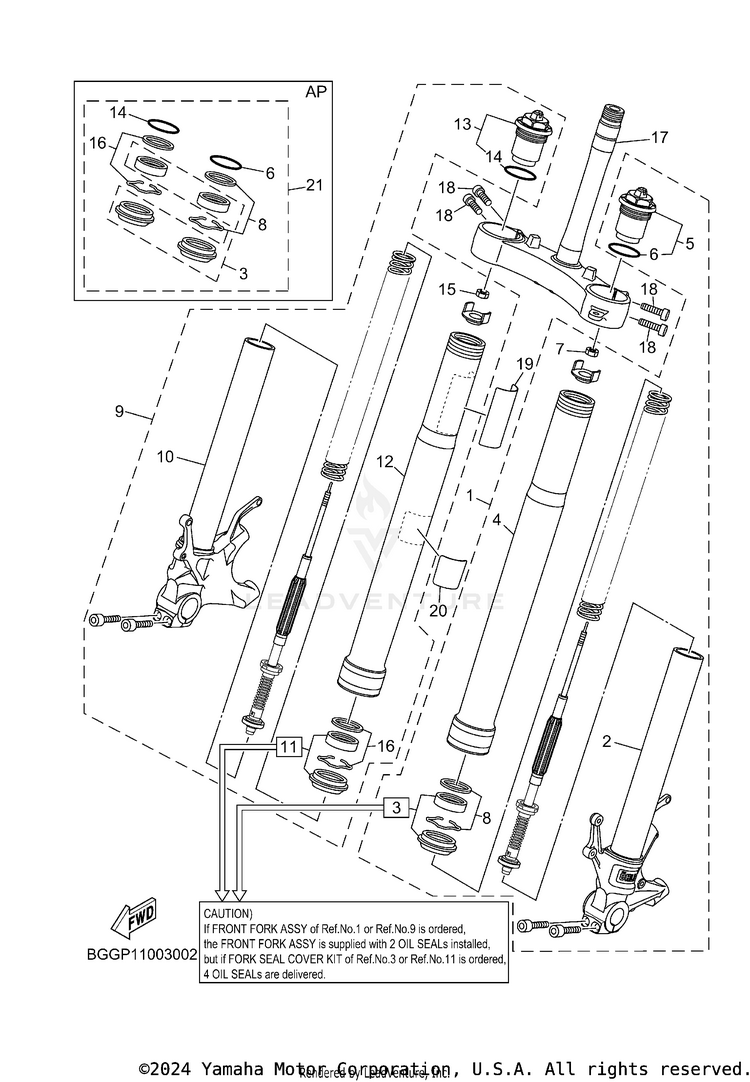

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1BGG-23102-00-00FRONT FORK ASSY (L.H) | REFER TO THE CAUTION$1,555.99$1,358.34Usually ships in 7-10 business days
2BGG-23110-00-00. .INNER TUBE COMP.1$817.99$684.81Usually ships in 7-10 business days
32KS-231E0-00-00FORK SEAL COVER KIT | REFER TO THE CAUTION$143.99$112.31Usually ships in 7-10 business days
42KS-23106-00-00OUTER TUBE COMP.$736.99$602.00Usually ships in 7-10 business days
52KS-23111-00-00BOLT, CAP$463.99$383.88Usually ships in 7-10 business days
693210-41N50-00O-RING$9.49$8.54Usually ships in 7-10 business days
790170-12060-00NUT$10.49$8.186 In-Stock
82KS-231M0-00-00. .FORK WASHER CIRCLIP KIT$149.99$123.99Usually ships in 7-10 business days
9BGG-23103-00-00FRONT FORK ASSY (R.H) | REFER TO THE CAUTION$1,555.99$1,358.34Usually ships in 7-10 business days
10BGG-23120-00-00. .INNER TUBE COMP.2$817.99$684.81Usually ships in 7-10 business days
112KS-231E0-00-00FORK SEAL COVER KIT | REFER TO THE CAUTION$143.99$112.31Usually ships in 7-10 business days
122KS-23106-00-00OUTER TUBE COMP.$736.99$602.00Usually ships in 7-10 business days
132KS-23111-00-00BOLT, CAP$463.99$383.88Usually ships in 7-10 business days
1493210-41N50-00O-RING$9.49$8.54Usually ships in 7-10 business days
1590170-12060-00NUT$10.49$8.186 In-Stock
162KS-231M0-00-00. .FORK WASHER CIRCLIP KIT$149.99$123.99Usually ships in 7-10 business days
17B5Y-23340-00-00UNDER BRACKET COMP.$632.99$512.56Usually ships in 7-10 business days
1891314-08030-00BOLT, HEXAGON SOCKET HEAD$2.55$2.199 In-Stock
19BEB-23472-00-00PROTECTOR$15.49$12.70Usually ships in 7-10 business days
205PX-21669-01-00SEAL$12.99$10.65Usually ships in 7-10 business days
21BW8-W003B-01-00FORK SEALS KIT | AP$329.99$282.20Usually ships in 7-10 business days
