2026 Yamaha MT-10 SP Intake 2 OEM Parts Diagram

Submodel MT10 SP - MT10SPTCS - 2026

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

INTAKE 2

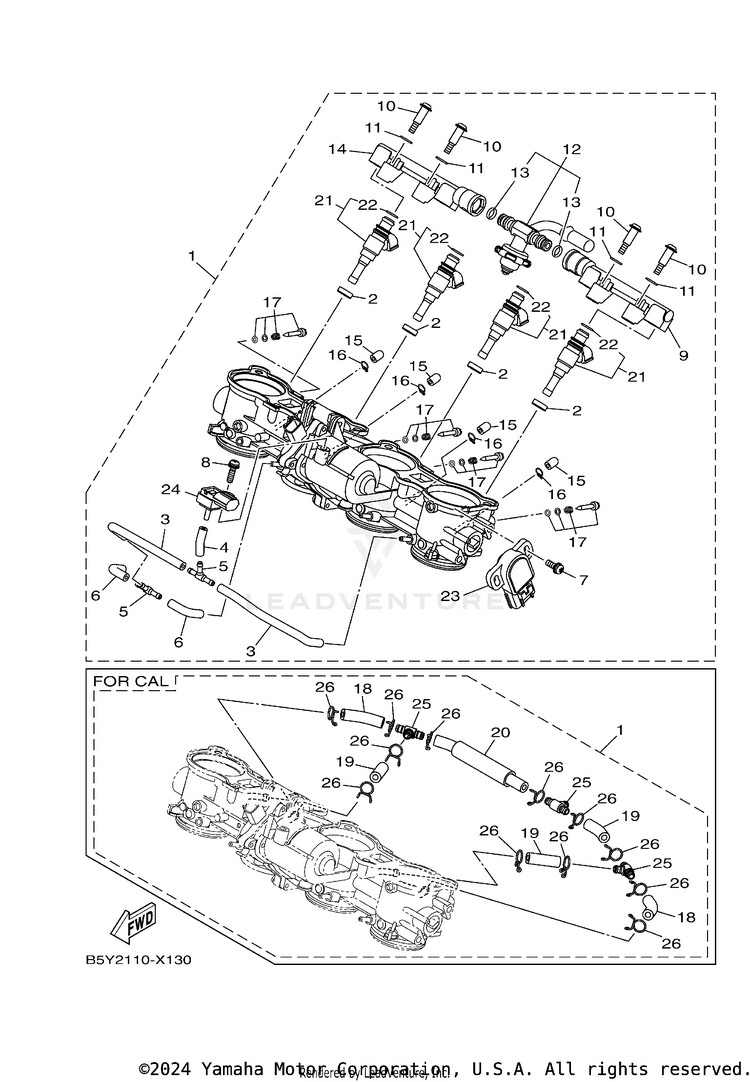

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1B5Y-13750-10-00THROTTLE BODY ASSY | FOR U49$2,104.99$1,838.90Usually ships in 7-10 business days
1B5Y-13750-00-00THROTTLE BODY ASSY | FOR CAL$1,649.99$1,443.65Usually ships in 7-10 business days
28FP-13556-00-00RUBBER, INJECTOR$15.49$12.0810+ In-Stock
35JW-14987-00-00HOSE$17.99$14.75Usually ships in 7-10 business days
45FL-14348-10-00PIPE 1$6.49$5.84Usually ships in 7-10 business days
568V-24376-00-00PIPE, JOINT 1$18.99$16.19Usually ships in 7-10 business days
68FP-14349-00-00PIPE$14.49$11.88Usually ships in 7-10 business days
78CC-14216-10-00SCREW$8.99$7.019 In-Stock
82C0-14216-00-00SCREW$4.20$3.613 In-Stock
92CR-1393A-00-00PIPE, INLET$69.99$54.59Usually ships in 7-10 business days
1014B-13573-00-00BOLT 1$7.49$6.74Usually ships in 7-10 business days
11363-14198-00-00GASKET$12.49$9.7410+ In-Stock
12B67-13795-00-00JOINT, THROTTLE BO$195.99$155.25Usually ships in 7-10 business days
1339P-14147-00-00O-RING$8.49$7.64Usually ships in 7-10 business days
142CR-1393B-00-00PIPE, INLET 2$77.99$60.83Usually ships in 7-10 business days
15895-14169-00-00CAP$5.99$4.676 In-Stock
168A7-14139-00-00CLIP, PIPE$9.49$7.403 In-Stock
172C0-14105-00-00PILOT SCREW SET$37.99$31.15Usually ships in 7-10 business days
1814B-14466-00-00PIPE | FOR CAL$27.99$22.95Usually ships in 7-10 business days
1914B-14465-00-00PIPE | FOR CAL$19.49$15.98Usually ships in 7-10 business days
202CR-1443J-00-00PIPE | FOR CAL$41.99$34.43Usually ships in 7-10 business days
214C8-13761-00-00INJECTOR$185.99$157.1310+ In-Stock
225PS-14147-00-00O-RING$14.49$11.3010+ In-Stock
23B3L-85885-01-00. .THROTTLE SENSOR ASSY$118.99$92.81Usually ships in 7-10 business days
241WS-82380-00-00SENSOR, PRESSURE$209.99$163.798 In-Stock
2590413-06031-00WAY 3 | FOR CAL$9.49$8.54Usually ships in 7-10 business days
2690467-100A1-00CLIP | FOR CAL$8.49$6.6210+ In-Stock
