2026 Yamaha TENERE 700 World Raid Shift Shaft OEM Parts Diagram

Submodel TENERE 700 WORLD RAI - XTZ7WRTCB - 2026

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

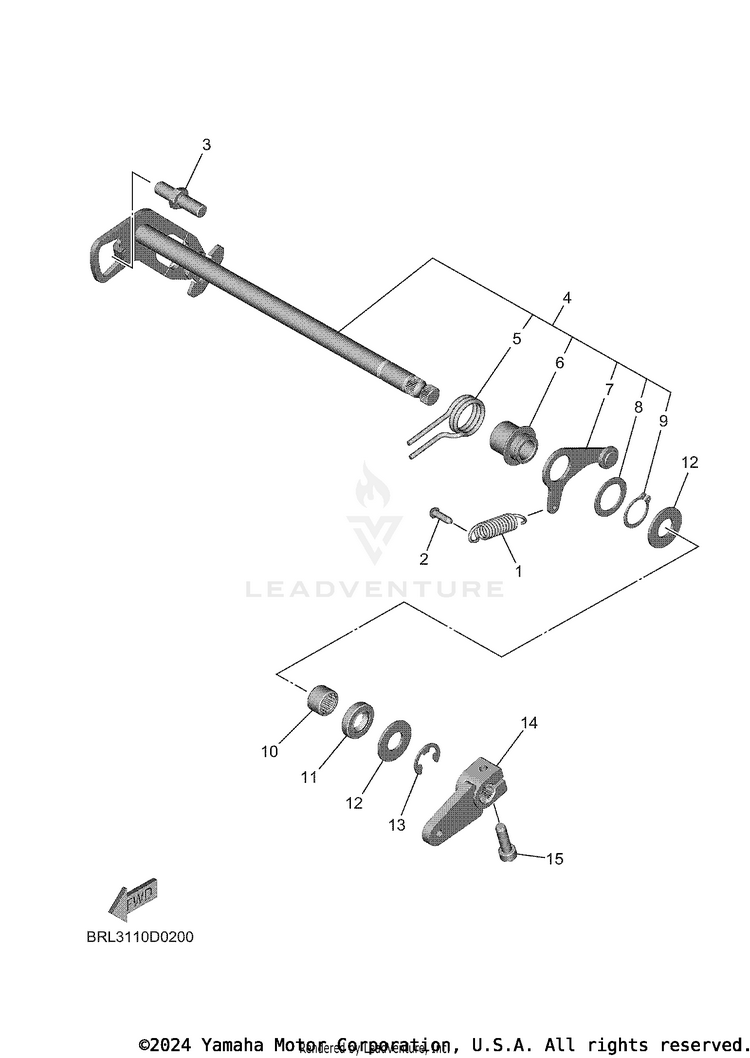

SHIFT SHAFT

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
190506-18021-00SPRING, TENSION$9.49$8.54Usually ships in 7-10 business days
2132-16346-00-00HOOK, SPRING$10.99$8.578 In-Stock
3BU3-E8127-00-00STOPPER, SCREW$0.00$0.00Not Shipping
4BU3-E8101-00-00SHIFT SHAFT ASSY$0.00$0.00Not Shipping
590508-29040-00SPRING, TORSION$14.49$11.88Usually ships in 7-10 business days
6BU3-E8175-00-00. .SPACER$0.00$0.00Not Shipping
7BU3-E8140-00-00. .STOPPER LEVER ASSY$0.00$0.00Not Shipping
890201-177G4-00WASHER, PLATE$10.49$8.183 In-Stock
999009-17400-00CIRCLIP$5.49$4.2810+ In-Stock
1093317-11295-00BEARING$50.99$39.774 In-Stock
1193102-12106-00

(replaces part #
93102-12891-00)

OIL SEAL (SD 12-22-5 HS)$12.49$9.7410+ In-Stock
1290201-12575-00WASHER, PLATE$9.49$7.4010+ In-Stock
1399002-10600-00CIRCLIP$9.49$7.403 In-Stock
141WS-18112-00-00ARM, SHIFT$39.99$31.192 In-Stock
1591317-06020-00BOLT, HEX. SOCKET HEAD$2.75$2.3610+ In-Stock
