2026 Yamaha TENERE 700 World Raid Taillight OEM Parts Diagram

Submodel TENERE 700 WORLD RAI - XTZ7WRTCB - 2026

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

TAILLIGHT

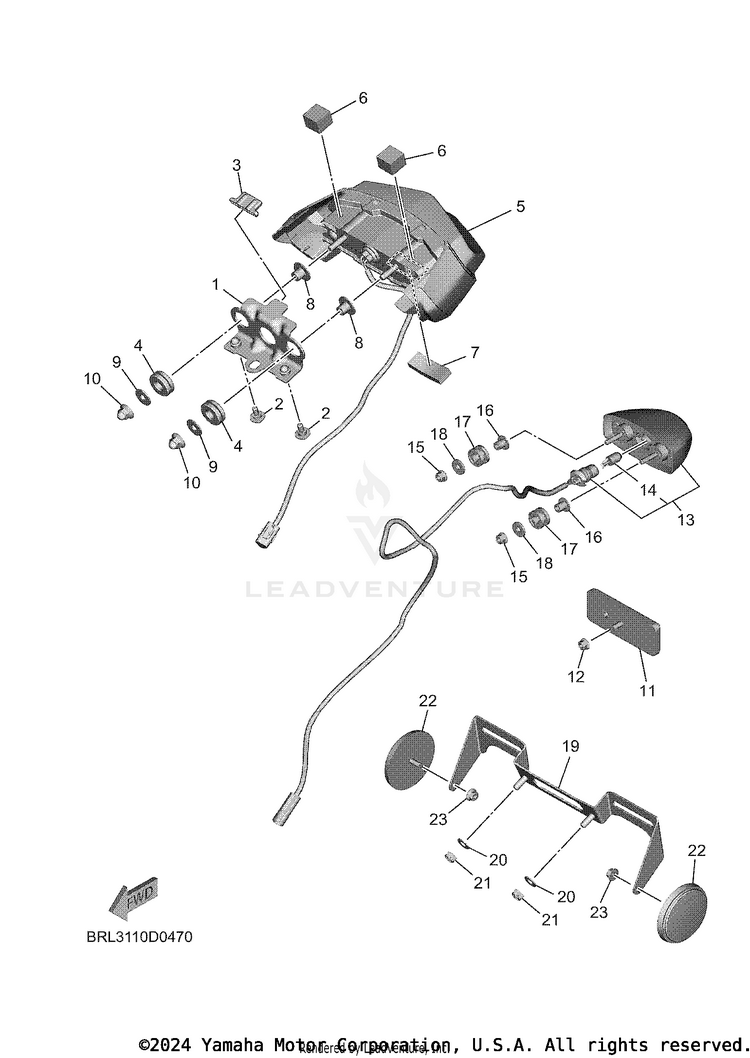

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1BW3-F117E-00-00BRACKET, TAILLIGHT$50.99$39.77Usually ships in 7-10 business days
290149-05042-00SCREW$3.75$3.2210+ In-Stock
32N4-21717-00-00DAMPER$8.49$6.627 In-Stock
490480-18276-00GROMMET$9.49$7.408 In-Stock
5BW3-H4700-01-00TAILLIGHT ASSY$241.99$190.48Usually ships in 7-10 business days
690520-15X03-00DAMPER, PLATE$1.90$1.71Usually ships in 7-10 business days
790520-07X00-00DAMPER, PLATE$16.49$13.52Usually ships in 7-10 business days
890387-06150-00COLLAR$6.49$5.067 In-Stock
990201-06057-00

(replaces part #
90201-06023-00)

WASHER, PLATE$6.49$5.067 In-Stock
1090176-06008-00NUT, CROWN-$3.9810+ In-Stock
113C1-H5130-00-00REAR REFLECTOR ASSY$4.20$3.78Usually ships in 7-10 business days
1295607-05200-00

(replaces part #
95602-05200-00)

NUT, U FLANGE$10.49$8.183 In-Stock
13BEE-H4740-01-00LICENSE LIGHT ASSY$68.99$53.81Usually ships in 7-10 business days
141TP-84347-00-00BULB (12V-5W)$7.49$5.841 In-Stock
1595607-05200-00

(replaces part #
95602-05200-00)

NUT, U FLANGE$10.49$8.183 In-Stock
1690387-05042-00COLLAR$6.49$5.844 In-Stock
1790480-12023-00GROMMET$9.49$7.403 In-Stock
1890201-05556-00

(replaces part #
90201-054K4-00)

WASHER, PLATE$10.49$8.603 In-Stock
191RC-84751-10-00BRACKET, LICENSE$45.99$37.71Usually ships in 7-10 business days
2092990-06200-00

(replaces part #
92902-06200-00)

WASHER, PLAIN-$1.2810+ In-Stock
2195617-06100-00

(replaces part #
95602-06100-00)

NUT, U$2.90$2.4910+ In-Stock
22449-85131-02-00REFLECTOR, REAR 1$33.99$26.514 In-Stock
2395702-05500-00NUT, WITH WASHER-$1.118 In-Stock
