2026 Yamaha WR450F Crankcase OEM Parts Diagram

Submodel WR450F - WR450FT1 - 2026

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

CRANKCASE

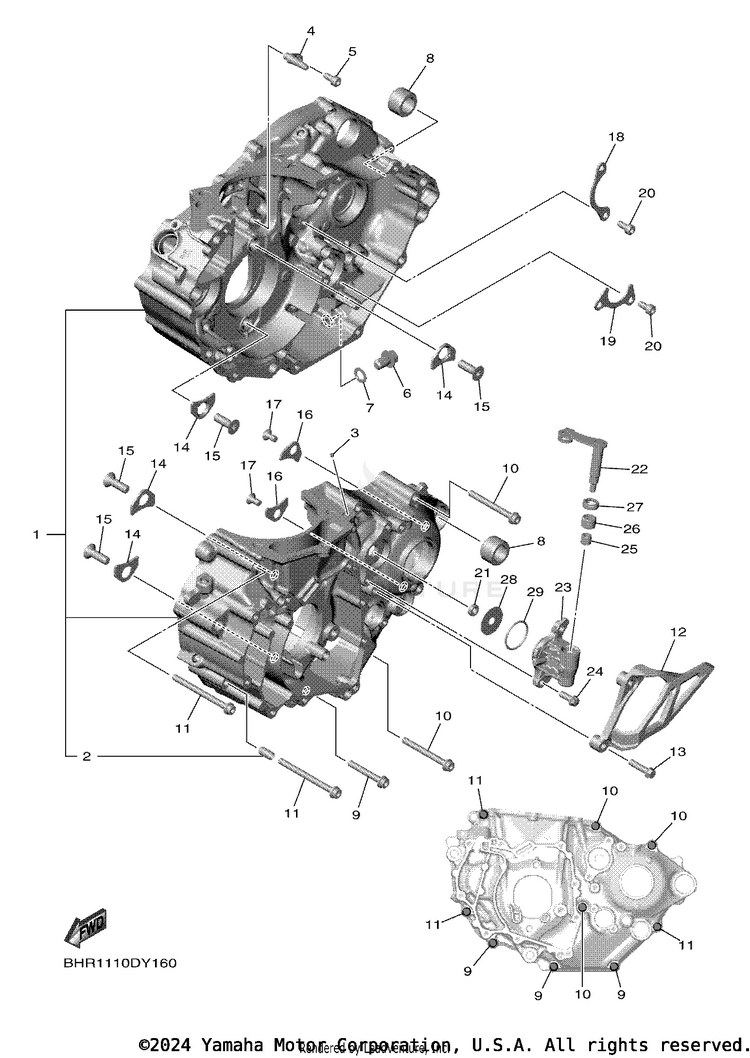

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1BHR-15100-07-00CRANKCASE ASSY$1,652.99$1,439.60Usually ships in 7-10 business days
291808-16023-00

(replaces part #
99530-08016-00)

PIN, DOWEL$7.99$6.2310+ In-Stock
3BHR-15148-00-00NOZZLE 2$6.49$5.84Usually ships in 7-10 business days
4BHR-15155-00-00NOZZLE 3$31.99$26.23Usually ships in 7-10 business days
591317-06012-00

(replaces part #
90110-06182-00)

BOLT, HEXAGON SOCKET HEAD$9.49$7.4010+ In-Stock
695E32-10016-00BOLT, FLANGE DEEP RE$1.60$1.5810+ In-Stock
790430-10188-00GASKET$3.45$2.9710+ In-Stock
890387-17020-00COLLAR$19.49$15.98Usually ships in 7-10 business days
990110-06391-00BOLT, HEXAGON SOCKET HEAD$2.55$2.499 In-Stock
1090110-06363-00BOLT, HEXAGON SOCKET HEAD$3.60$3.105 In-Stock
1190110-06392-00BOLT, HEXAGON SOCKET HEAD$4.05$3.486 In-Stock
12BHR-15421-01-00COVER, CRANKCASE 2$25.99$21.3110+ In-Stock
1390105-06189-00BOLT, FLANGE$9.49$7.4010+ In-Stock
1418P-15383-00-00PLATE, BEARING COVER$8.49$6.6210+ In-Stock
1590151-08003-00

(replaces part #
90151-08009-00)

SCREW, COUNTERSUNK$8.49$6.6210+ In-Stock
164JT-15381-01-00PLATE, BEARING COVER$14.49$11.3010+ In-Stock
1790151-06052-00

(replaces part #
90151-06053-00)

SCREW$9.49$7.4010+ In-Stock
18D03-15388-00-00PLATE, BEARING COVER$5.49$4.94Usually ships in 7-10 business days
1933D-18562-00-00PLATE, STOPPER 2$4.75$4.28Usually ships in 7-10 business days
2091317-06012-00

(replaces part #
90110-06182-00)

BOLT, HEXAGON SOCKET HEAD$9.49$7.4010+ In-Stock
2193104-06033-00OIL SEAL, SO-TYPE-$7.133 In-Stock
22BHR-16381-00-00PUSH LEVER COMP.$80.99$63.17Usually ships in 7-10 business days
23BHR-16386-00-00PIECE, CLUTH PUSH$93.99$73.315 In-Stock
2495022-06016-00

(replaces part #
90105-06187-00)

BOLT, FLANGE$3.90$3.3510+ In-Stock
2593317-106B4-00BEARING$8.49$6.6210+ In-Stock
2693317-11096-00BEARING$25.99$20.2710+ In-Stock
2793102-10008-00OIL SEAL$6.49$5.0610+ In-Stock
2890201-08037-00WASHER, PLATE$5.00$4.50Usually ships in 7-10 business days
2993210-28543-00O-RING$3.30$2.903 In-Stock
