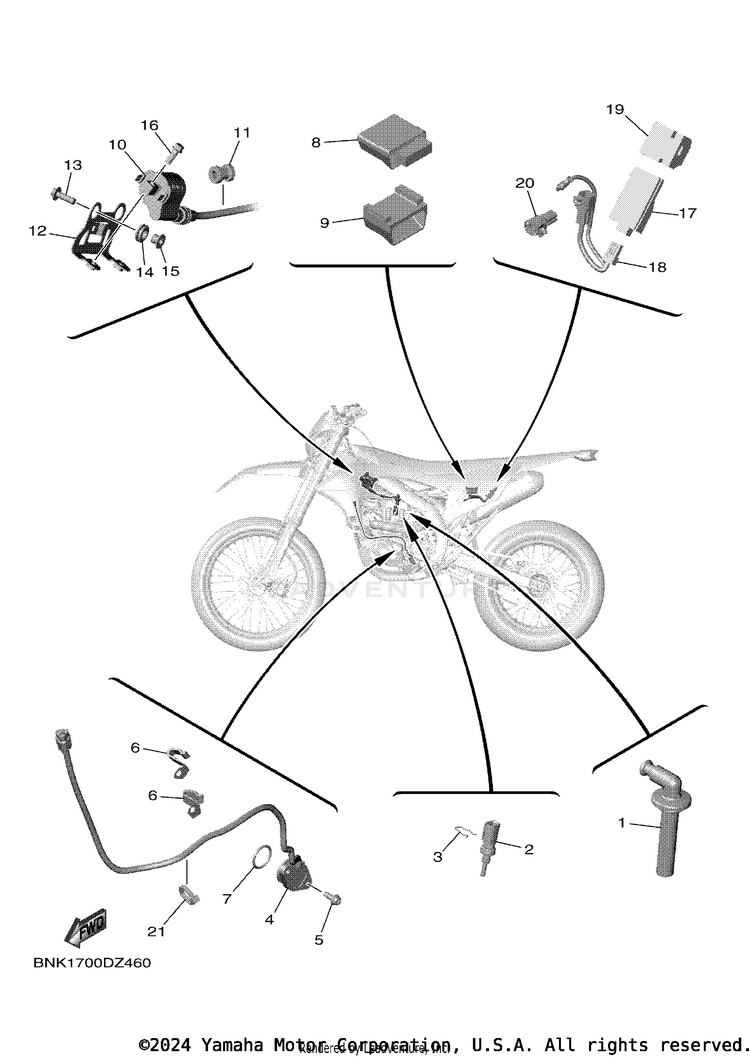

2026 Yamaha WR450F Electrical 1 OEM Parts Diagram

Tag	Part #	Description	MSRP	Our Price	Stock Status
1	B2W-82370-00-00	PLUG CAP ASSY	$150.99	$117.77	4 In-Stock
2	BHR-83591-00-00	THERMO UNIT	$35.99	$28.07	8 In-Stock
3	BHR-83525-00-00	CLIP	$2.40	$2.16	Usually ships in 7-10 business days
4	BHR-82540-01-00	NEUTRAL SWITCH ASSY	$80.99	$63.17	2 In-Stock
5	90110-05028-00 (replaces part # 90110-05062-00)	BOLT, HEXAGON SOCKET HEAD	$9.49	$7.40	10+ In-Stock
6	BHR-15484-00-00	CLAMP 2	$16.49	$13.52	Usually ships in 7-10 business days
7	93210-21001-00	O-RING	$6.49	$5.06	10+ In-Stock
8	DP0-8591A-10-00	ENGINE CONTROL UNIT ASSY	$471.99	$392.09	Usually ships in 7-10 business days
9	BHR-82155-00-00	BAND	$34.99	$28.69	Usually ships in 7-10 business days
10	BHR-82310-00-00	IGNITION COIL ASSY	$86.99	$67.85	6 In-Stock
11	90480-11015-00	GROMMET	$3.95	$3.40	3 In-Stock
12	BHR-2194U-00-00	STAY, IGNITION COIL	$25.99	$21.31	Usually ships in 7-10 business days
13	90105-06219-00	BOLT, FLANGE	$2.30	$1.98	5 In-Stock
14	90480-14477-00	GROMMET	$4.05	$3.48	5 In-Stock
15	90387-06M79-00	COLLAR	$10.99	$9.44	Usually ships in 7-10 business days
16	95E32-06016-00	BOLT, FLANGE DEEP RECESS	-	$0.85	10+ In-Stock
17	D03-85810-00-00	COMMUNICATION CONT. UNIT ASSY	$886.99	$774.78	Usually ships in 7-10 business days
18	BNK-85721-00-00	WIRE, LEAD	$71.99	$56.15	Usually ships in 7-10 business days
19	BHR-85546-00-00	BAND	$18.49	$15.16	Usually ships in 7-10 business days
20	BHR-82378-00-00	CONNECTOR	$16.99	$13.93	Usually ships in 7-10 business days
21	90465-10098-00	CLAMP	$2.80	$2.41	7 In-Stock
