FLASHER LIGHT

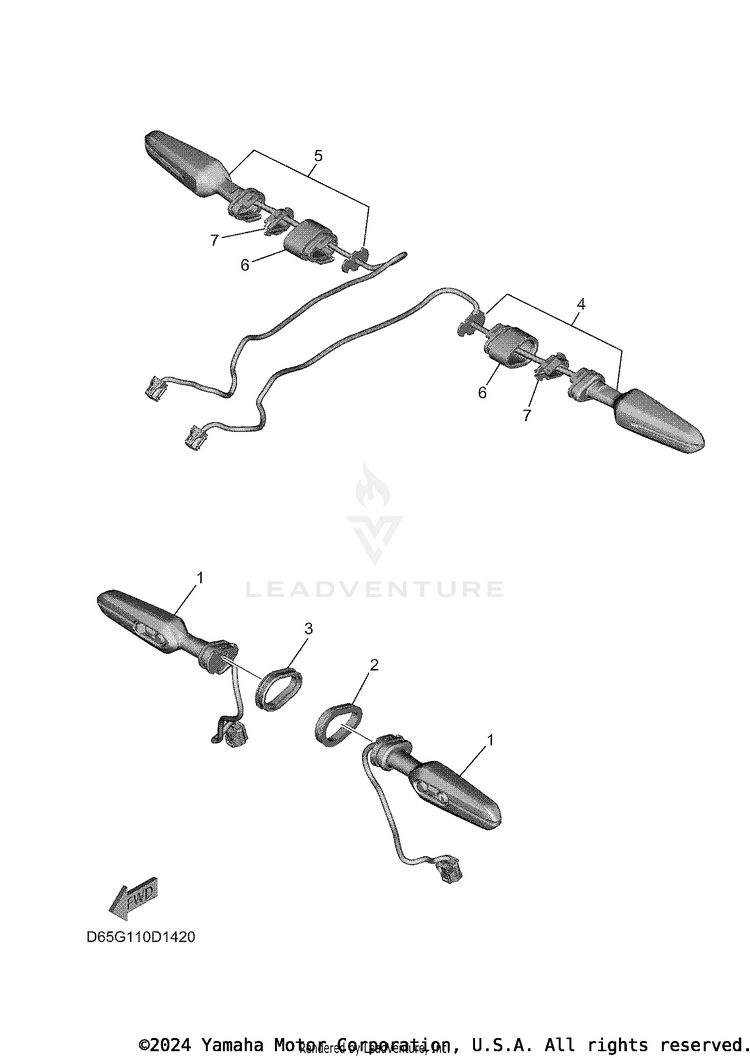

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1B7N-83310-10-00FRONT FLASHER LIGH$93.99$73.312 In-Stock
2B7N-83321-00-00DAMPER, FLASHER 1$4.65$4.004 In-Stock
3B7N-83321-00-00DAMPER, FLASHER 1$4.65$4.004 In-Stock
4BAT-83330-10-00REAR FLASHER LIGHT$74.99$58.49Usually ships in 7-10 business days
5D65-H3340-10-00REAR FLASHER LIGHT ASSY 2$66.99$52.25Usually ships in 7-10 business days
6B7N-8338V-00-00DAMPER$11.49$8.966 In-Stock
7B7N-83318-00-00STAY, FLASHER 1$4.30$3.708 In-Stock
