2026 Yamaha XSR900 Handle Switch & Lever OEM Parts Diagram

Submodel XSR900 - XSR900TCB - 2026

Shop Aftermarket Parts

TO VIEW YAMAHA OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

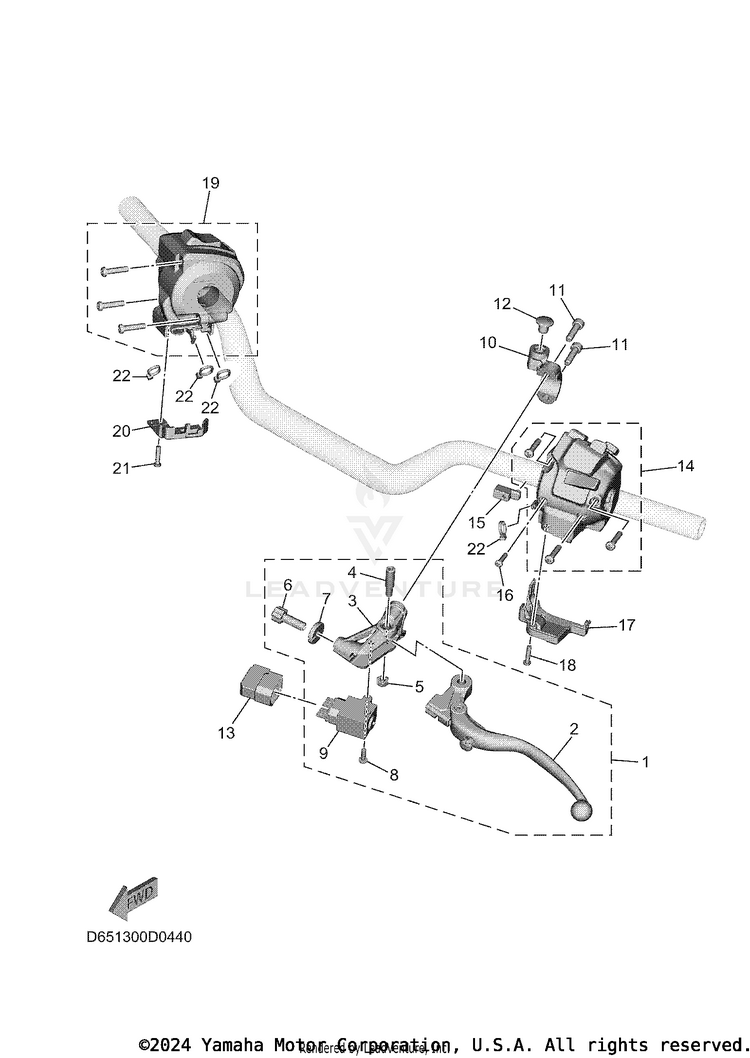

HANDLE SWITCH & LEVER

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
1BME-82910-20-00LEVER HOLDER ASSY (LEFT)$170.99$133.37Usually ships in 7-10 business days
2BME-83922-10-00. .LEVER 2$43.99$38.02Usually ships in 7-10 business days
3BME-82911-10-00HOLDER, LEVER 1$31.99$26.231 In-Stock
4BME-2589F-00-00BOLT, LEVER$6.49$5.84Usually ships in 7-10 business days
595617-06100-00NUT, U$2.90$2.4910+ In-Stock
6BME-26382-00-00BOLT, AJUSTING$23.99$19.671 In-Stock
790179-08030-00

(replaces part #
90179-08148-00)

NUT$10.49$8.1810+ In-Stock
8BME-2632G-00-00SCREW$6.49$5.84Usually ships in 7-10 business days
9BME-82917-00-00SWITCH$75.99$59.27Usually ships in 7-10 business days
10BME-2629N-10-00BRACKET, MIRROR 1$28.99$23.77Usually ships in 7-10 business days
1191314-06020-00BOLT, HEXAGON SOCKET HEAD$2.65$2.5710+ In-Stock
1290338-09012-00PLUG$10.49$8.186 In-Stock
13BME-8291G-00-00COVER, SWITCH$12.49$10.24Usually ships in 7-10 business days
14BRN-8291L-00-00SW., HANDLE LH$408.99$338.21Usually ships in 7-10 business days
15BME-83525-00-00CLIP$10.49$8.60Usually ships in 7-10 business days
1698517-04016-00

(replaces part #
98507-04016-00)

SCREW, PAN HEAD$9.49$7.4010+ In-Stock
17BME-8246B-00-00COVER 1$13.99$11.47Usually ships in 7-10 business days
1898507-04018-00SCREW, PAN HEAD$2.35$2.029 In-Stock
19BME-8291R-00-00SW., HANDLE RH$384.99$317.98Usually ships in 7-10 business days
20BME-8249A-00-00COVER 2$10.49$8.60Usually ships in 7-10 business days
2198507-04018-00SCREW, PAN HEAD$2.35$2.029 In-Stock
2290465-10098-00CLAMP$2.80$2.417 In-Stock
