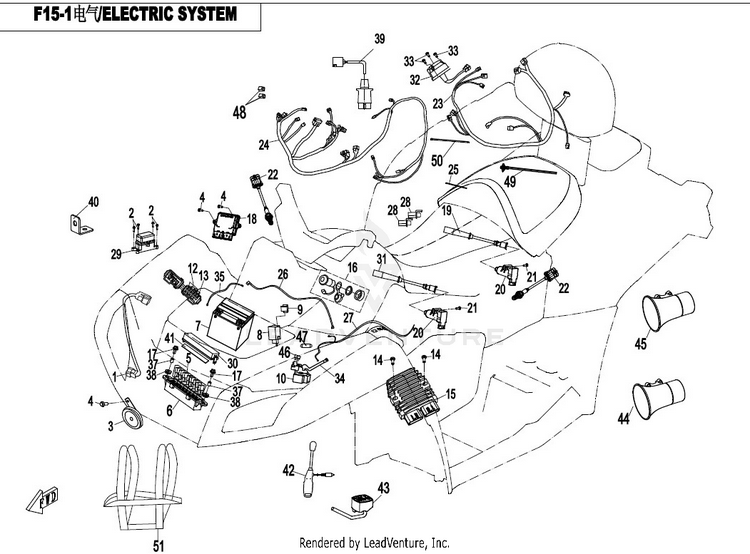

2017 CFMOTO CFORCE 800 Electric System OEM Parts Diagram

Submodel CFORCE 800 CF800-2 2017 Titanium Grey

Shop Aftermarket Parts

ELECTRIC SYSTEM

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
1	7020-150401	LINK WIRE,SPEED SENSOR	Usually ships in 7-10 business days
2	30006-060025810	BOLT	10+ In-Stock
3	5020-150700	ELECTRIC HORN	Usually ships in 7-10 business days
4	30006-060016870	BOLT M6x16	10+ In-Stock
5	9010-150350	AUXILIARY RELAY	Usually ships in 7-10 business days
6	7020-040411	RELAY BOX	Usually ships in 7-10 business days
7	31023004 (replaces part # 31023002)	BATTERY, Dynavolt 12v30ah \| YTX30L-BS YUASA OBTAIN LOCALLY	2 In-Stock
8	8010-151000	FLASHER	Usually ships in 7-10 business days
9	8010-150002	CUSHION, FLASHER	Usually ships in 7-10 business days
10	5270-150500	STARTER RELAY	Usually ships in 7-10 business days
12	806A-151305	FUSE (15A)	Usually ships in 7-10 business days
13	806A-151302	FUSE (10A)	Usually ships in 7-10 business days
14	30006-060030810	BOLT M6Ã—30	Usually ships in 7-10 business days
15	0800-177000-10000	REGULATOR	Usually ships in 7-10 business days
16	7020-150500-1000	POWER SOCKET \| SUMITOMO PLUG	Usually ships in 7-10 business days
17	30006-060016870	BOLT M6x16	10+ In-Stock
18	0800-174000-3000	ECU	Usually ships in 7-10 business days
19	0800-179100-10000 (replaces part # 0800-179100)	HIGH-TENSION CABLE 1	Usually ships in 7-10 business days
20	0800-178000	IGNITION COIL	Usually ships in 7-10 business days
21	30006-060040810	BOLT	Usually ships in 7-10 business days
22	0800-176000	OXYGEN SENSOR	Usually ships in 7-10 business days
23	7020-150300-1000	AUXILIARY CABLE \| SUMITOMO PLUG	Usually ships in 7-10 business days
24	7020-150100-50001	MAIN WIRE HARNESS \| EPS / SUMITOMO	Usually ships in 7-10 business days
25	8010-150003	TIE BAND	Usually ships in 7-10 business days
26	7020-150220	POSITIVE CABLE, STARTER MOTOR	Usually ships in 7-10 business days
27	7020-150210	NEGATIVE CABLE, STARTER MOTOR	Usually ships in 7-10 business days
28	6090-150500	DIODE, STARTER	Usually ships in 7-10 business days
29	9010-150720-4000	CONTROL RELAY \| LIANDA	Usually ships in 7-10 business days
30	7020-040412-10000	COVER,RELAY BOX	Usually ships in 7-10 business days
31	0800-179200-10000	HIGH-TENSION CABLE 2	Usually ships in 7-10 business days
32	9010-151010-1000	POWER SOCKET,TRAILER	Usually ships in 7-10 business days
32	7020-150800-1000	POWER SOCKET,TRAILER \| SUMITOMO PLUG	Usually ships in 7-10 business days
33	30105-050030410	SCREW M5x30 \| M5Ã—30	Usually ships in 7-10 business days
34	7020-150230	POSITIVE CABLE, BATTERY	Usually ships in 7-10 business days
35	7020-150240	NEGATIVE CABLE, BATTERY	Usually ships in 7-10 business days
37	6090-040303	BUSHING	10+ In-Stock
38	0180-015003	RUBBER COLLAR	Usually ships in 7-10 business days
39	9010-151020-20000	ADAPTER, TRAILER POWER	Usually ships in 7-10 business days
40	7020-038002	BRACKET,FUSE BOX	Usually ships in 7-10 business days
41	7020-040414	RUBBER MAT,RELAY BOX COVER	Usually ships in 7-10 business days
42	8030-151610	SPEAKER	Usually ships in 7-10 business days
44	8030-151640	SPEAKER	Usually ships in 7-10 business days
45	8030-151650	SPEAKER	Usually ships in 7-10 business days
46	7020-150111	CHIP-TYPE FUSE(30A)	Usually ships in 7-10 business days
47	7030-150111	FUSE 25A	Usually ships in 7-10 business days
48	905B-150103	PLUG, PDA	Usually ships in 7-10 business days
49	801F-100101	TIE BAND	Usually ships in 7-10 business days
50	9010-150004	TIE BAND	Usually ships in 7-10 business days
51	9060-152100	BATTERY STRAP	Usually ships in 7-10 business days
