2017 CFMOTO CFORCE 800 Middle Plastics OEM Parts Diagram

Submodel CFORCE 800 CF800-2 2017 Titanium Grey

Shop Aftermarket Parts

TO VIEW CFMOTO OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

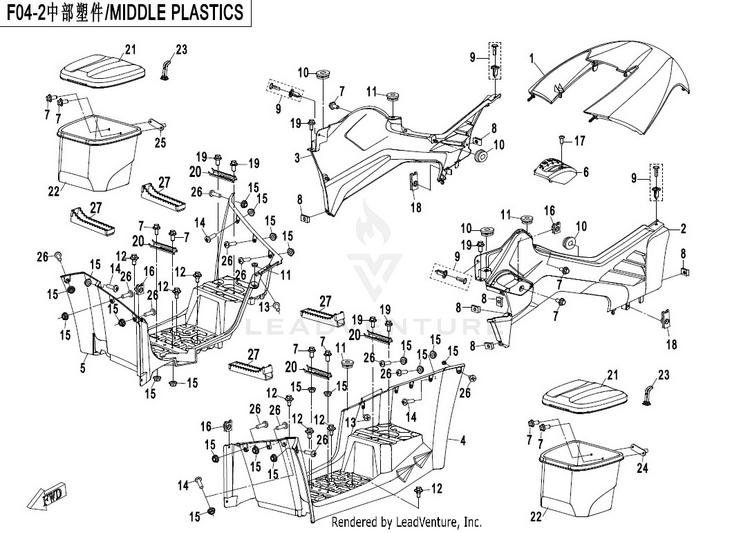

MIDDLE PLASTICS

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
17020-040202-0Y60TOP COVER,AIR FILTER | CRYSTAL ORANGE
Usually ships in 7-10 business days
27020-040203-0Y60LEFT SIDE PANEL | CRYSTAL ORANGE
Usually ships in 7-10 business days
37020-040204-0Y60RIGHT SIDE PANEL | CRYSTAL ORANGE
Usually ships in 7-10 business days
47020-040205-20000FOOTREST BOARD, LH
Usually ships in 7-10 business days
57020-040206-10000FOOTREST BOARD, RH
Usually ships in 7-10 business days
67020-040208-0V10INDICATOR COVER, GEARSHIFT
Usually ships in 7-10 business days
730006-060012870BOLT M6x12
10+ In-Stock
85020-040049CLAMP ST4.8
10+ In-Stock
99060-040310PUSH RIVET
10+ In-Stock
107020-040209FIXING RUBBER BUSH
Usually ships in 7-10 business days
110180-015003RUBBER COLLAR
Usually ships in 7-10 business days
128010-000004BOLT M6×14
10+ In-Stock
1330112-060016410SCREW
Usually ships in 7-10 business days
148010-000005-2000BOLT M6X12
Usually ships in 7-10 business days
1530204-060810NUT M6
10+ In-Stock
168030-040800-00001NUT CLIP M6
10+ In-Stock
17A000-060002SCREW
Usually ships in 7-10 business days
188030-040800-00001NUT CLIP M6
10+ In-Stock
1930006-060020870BOLT M6x20
Usually ships in 7-10 business days
207020-030007JAG, FOOTREST BOARD
Usually ships in 7-10 business days
217020-040271COVER, SIDE BOX
Usually ships in 7-10 business days
227020-040272SIDE BOX
Usually ships in 7-10 business days
237020-040315RUBBER STRAP
Usually ships in 7-10 business days
247020-040280LEFT BRACKET, SIDE BOX
Usually ships in 7-10 business days
257020-040290RIGHT BRACKET, SIDE BOX
Usually ships in 7-10 business days
268010-000005-2000BOLT M6X12
Usually ships in 7-10 business days
279CR6-042040-20000ANTI SKID ASSY
Usually ships in 7-10 business days
452927020-040202-0RE00AIR FILTER COVER | TRUE TIMBER CAMO
Usually ships in 7-10 business days
452937020-040202-0B50TOP COVER,AIR FILTER | TITANIUM GREY
Usually ships in 7-10 business days
453237020-040203-0RE00LH PROTECTION PLATE | TRUE TIMBER CAMO
Usually ships in 7-10 business days
453247020-040203-0B50LEFT SIDE PANEL | TITANIUM GREY
Usually ships in 7-10 business days
453527020-040204-0RE00RH PROTECTION PLATE | TRUE TIMBER CAMO
Usually ships in 7-10 business days
453537020-040204-0B50RIGHT SIDE PANEL | TITANIUM GREY
Usually ships in 7-10 business days
