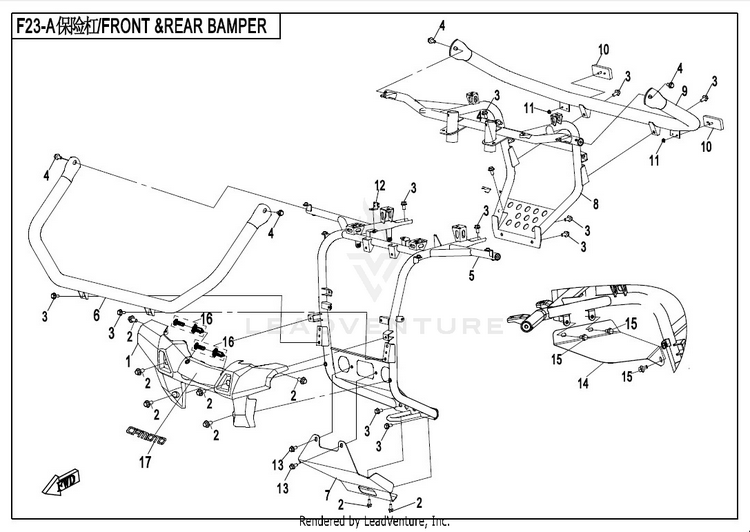

2017 CFMOTO CFORCE 800 Front & Rear Bumper OEM Parts Diagram

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
1	7020-230001	COVER, FRONT BUMPER	Usually ships in 7-10 business days
2	30006-060016870	BOLT M6x16	10+ In-Stock
3	30006-080016810	BOLT M8X16	10+ In-Stock
4	30006-080020810	BOLT M8Ã—20	10+ In-Stock
5	7020-233000-2000	FRONT BRACKET, BUMPER	Usually ships in 7-10 business days
6	7020-231500-10000	FRONT BUMPER	Usually ships in 7-10 business days
7	7020-230002-1000	FRONT SKID PLATE	Usually ships in 7-10 business days
9	7020-232100-20000	REAR BUMPER	Usually ships in 7-10 business days
10	5190-160230-00002	REAR REFLECTOR \| RECTANGLE,RED	Usually ships in 7-10 business days
11	30202-050110	NUT	Usually ships in 7-10 business days
12	7020-230003	BRACKET, FLASHER	Usually ships in 7-10 business days
13	30006-102020810	BOLT M10Ã—1.25Ã—20	10+ In-Stock
14	7020-000406	HEAT INSULATOR, REAR MUFFLER PIPE	Usually ships in 7-10 business days
15	30006-060012870	BOLT M6x12	10+ In-Stock
16	9060-040310	PUSH RIVET	10+ In-Stock
17	7020-190220	CFMOTO LETTER DECAL SET	Usually ships in 7-10 business days
