2017 CFMOTO CFORCE 800 Front Plastics (Facelift) OEM Parts Diagram

Submodel CFORCE 800 CF800-2 2017 True Timber Camo

Shop Aftermarket Parts

TO VIEW CFMOTO OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

FRONT PLASTICS (FACELIFT)

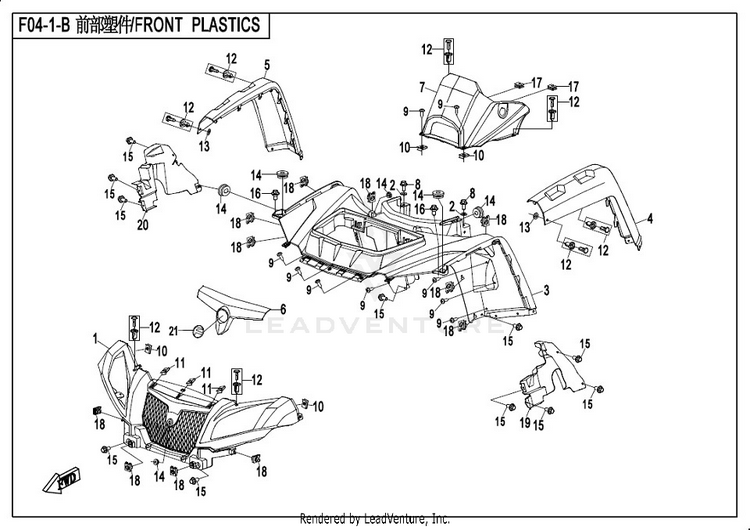

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
17020-040111-20000FRONT GRILLE
Usually ships in 7-10 business days
230306-060112WASHER, PLAIN
Usually ships in 7-10 business days
37020-040101-0Y60FRONT FENDER | CRYSTAL ORANGE
Usually ships in 7-10 business days
47020-040102FRONT EDGING, LH
Usually ships in 7-10 business days
57020-040103FRONT EDGING, RH
Usually ships in 7-10 business days
67020-040104-1Y600FRONT DECO PLATE, CRYSTAL ORANGE | CRYSTAL ORANGE
Usually ships in 7-10 business days
77020-040201COVER, DASHBOARD
Usually ships in 7-10 business days
830006-060020870BOLT M6x20
Usually ships in 7-10 business days
930110-480160010TAPPING SCREW ST4.8X16
10+ In-Stock
108010-000002CLAMP ST4.2
10+ In-Stock
115020-040049CLAMP ST4.8
10+ In-Stock
129060-040310PUSH RIVET
10+ In-Stock
1330306-080112WASHER
6 In-Stock
140180-015003RUBBER COLLAR
Usually ships in 7-10 business days
1530006-060012870BOLT M6x12
10+ In-Stock
168010-000004BOLT M6×14
10+ In-Stock
177020-040207RUBBER AIR FILTER
Usually ships in 7-10 business days
188030-040800-00001NUT CLIP M6
10+ In-Stock
197020-040501FRONT INNER FENDER (LH)
Usually ships in 7-10 business days
207020-040502FRONT INNER FENDER(RH)
Usually ships in 7-10 business days
453527020-040101-0RE00FRONT FENDER | TRUE TIMBER CAMO
Usually ships in 7-10 business days
453537020-040101-0B50FRONT FENDER | TITANIUM GREY
Usually ships in 7-10 business days
454447020-040104-1RE00FRONT DECO PLATE, TRUE TIMBER CAMO | TRUE TIMBER CAMO
Usually ships in 7-10 business days
454457020-040104-1B500FRONT DECO PLATE, TITANIUM GREY | TITANIUM GREY
Usually ships in 7-10 business days
