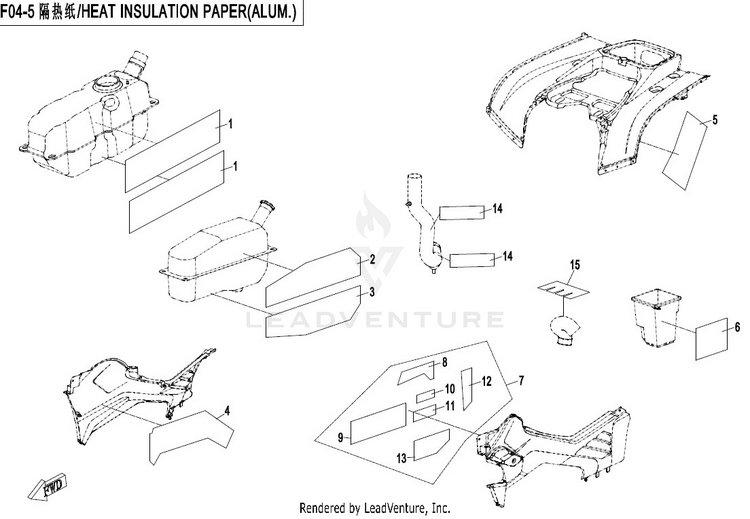

2017 CFMOTO CFORCE 800 Heat Insulation Paper(Alum.) OEM Parts Diagram

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
1	7020-120151	HEAT INSULATION PAPER, FUEL TANK, PLASTIC	Usually ships in 7-10 business days
2	7020-120251	UPPER INSULATION PAPER, FUEL TANK	Usually ships in 7-10 business days
3	7020-120252	LOWER INSULATION PAPER, FUEL TANK	Usually ships in 7-10 business days
4	7020-040220	HEAT INSULATION PAPER, RIGHT SIDE PANEL	Usually ships in 7-10 business days
5	7020-040307	HEAT INSULATION PAPER, REAR FENDER	Usually ships in 7-10 business days
6	7020-040407-10000 (replaces part # 7020-040407)	HEAT INSULATION PAPER, TOOL CASE	Usually ships in 7-10 business days
7	7020-040210	HEAT INSULATION PAPER, LEFT SIDE PANEL	Usually ships in 7-10 business days
8	7020-040211	UPPER INSULATION PAPER, LEFT SIDE PANEL	Usually ships in 7-10 business days
9	7020-040212	FRONT INSULATION PAPER, LEFT SIDE COVER	Usually ships in 7-10 business days
10	7020-040213	SMALL INSULATION PAPER, LEFT SIDE PANEL	Usually ships in 7-10 business days
11	7020-040214	MIDDLE INSULATION PAPER, LEFT SIDE PANEL	Usually ships in 7-10 business days
12	7020-040215	REAR INSULATION PAPER, LEFT SIDE PANEL	Usually ships in 7-10 business days
13	7020-040216	LOWER INSULATION PAPER, LEFT SIDE PANEL	Usually ships in 7-10 business days
14	TFQ004	SCROLL PAPER, HEAT INSULATION 3'	Usually ships in 7-10 business days
15	401B-000002	HEAT INSULATION PAPER, AIR OUTLET PIPE	Usually ships in 7-10 business days
