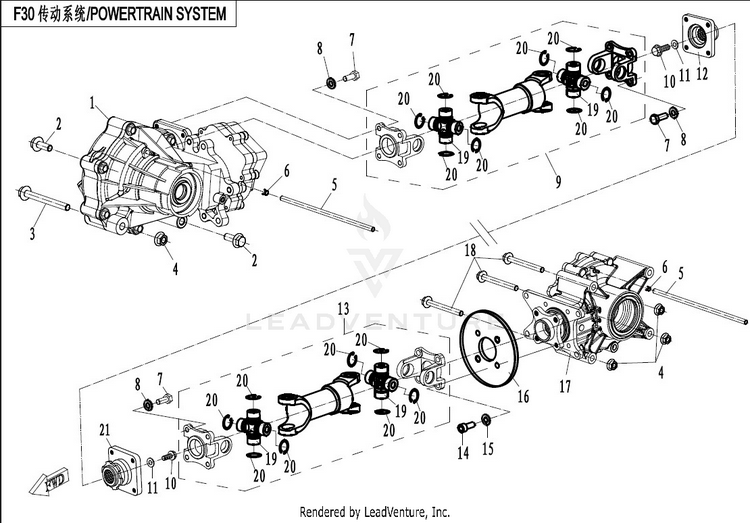

2017 CFMOTO CFORCE 800 Powertrain System OEM Parts Diagram

Live chat hours:7am-7pm Mon-Fri 8am-4pm Sat (MT)

Click and drag to reposition image. Use mouse wheel to zoom in and out.

WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click

Tag	Part #	Description	Stock Status
1	Q800-310000-00001	QDSO FRONT DIFFERENTIAL	Usually ships in 7-10 business days
2	30006-102025810	BOLT M10X1.25X25	2 In-Stock
3	30006-102090810	BOLT M10X1.25X90	Usually ships in 7-10 business days
4	30204-102810	NUT M10x1.25	10+ In-Stock
5	9010-310001	BREATHER HOSE,FRONT DIFFERENTIAL	Usually ships in 7-10 business days
6	30601-108010	CLAMP A8	Usually ships in 7-10 business days
7	9010-290001	BOLT M8Ã—1Ã—22	Usually ships in 7-10 business days
8	30306-080112	WASHER	6 In-Stock
9	7020-290100-00001	FRONT DRIVE SHAFT	Usually ships in 7-10 business days
10	30006-102030810	BOLT M10X30	Usually ships in 7-10 business days
11	7020-290002	WASHER 10.2Ã—30Ã—5	Usually ships in 7-10 business days
12	7020-290001	COUPLER,OUTPUT SHAFT	Usually ships in 7-10 business days
13	7020-300200-00001	REAR DRIVE SHAFT	Usually ships in 7-10 business days
14	9010-300001	BOLT M10Ã—1.25Ã—30	Usually ships in 7-10 business days
15	9010-300002	WASHER F10	Usually ships in 7-10 business days
16	7020-080002	REAR BRAKE DISC	Usually ships in 7-10 business days
17	Q520-330000-00001	Q520 REAR DIFFERENTIAL	Usually ships in 7-10 business days
18	30006-102110840	BOLT M10Ã—1.25Ã—110	Usually ships in 7-10 business days
19	7020-290130-10000	UNIVERSAL JOINT	Usually ships in 7-10 business days
20	30800-02505	CIRCLIP D25	Usually ships in 7-10 business days
21	7020-300010	COUPLER, COUNTER	Usually ships in 7-10 business days
