2022 CFMOTO CFORCE 600 Front Plastics OEM Parts Diagram

Submodel CF600AU-3S CFORCE 600 2022 True Timber Camo

Shop Aftermarket Parts

TO VIEW CFMOTO OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

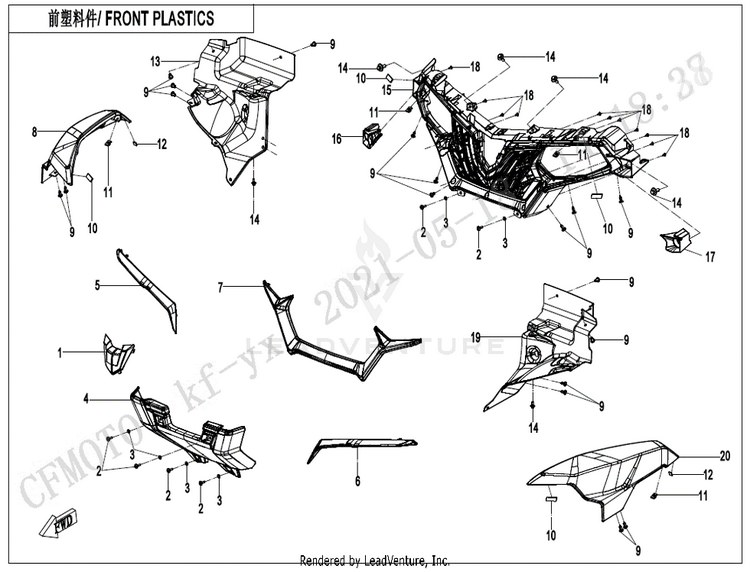

FRONT PLASTICS

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
15ASV-190001-6000CFMOTO LOGO
Usually ships in 7-10 business days
19DS#-041019-6001FRONT SERVICE COVER
Usually ships in 7-10 business days
29DSV-041024-6K00-0RH00FRONT TOP COVER, Force Red | FROCE RED
Usually ships in 7-10 business days
29DSV-041024-6K00-0VE00FRONT TOP COVER, Pearl white | NEBULA WHITE
Usually ships in 7-10 business days
29DSV-041024-6K00-0HC00FRONT TOP COVER, Velocity Grey | VELOCITY GREY
Usually ships in 7-10 business days
26NQ#-000205-6001MOUNTING SCREW, CHAIN GUARD
10+ In-Stock
29DSV-041024-6K00-0RE00FRONT TOP COVER, TT Camo | TRUE TIMBER CAMO
Usually ships in 7-10 business days
39DSV-041021-6K00-0RH00FRONT FENDER, Force Red | FROCE RED
Usually ships in 7-10 business days
39DSV-041021-6K00-0RE00FRONT FENDER, TT Camo | TRUE TIMBER CAMO
Usually ships in 7-10 business days
39DSV-041021-6K00-0HC00FRONT FENDER, Velocity Grey | VELOCITY GREY
Usually ships in 7-10 business days
39DSV-041021-6K00-0VE00FRONT FENDER, Pearl White | NEBULA WHITE
Usually ships in 7-10 business days
36NTG-050002NYLON GASKET Dia 8
10+ In-Stock
49060-040310PUSH RIVET
10+ In-Stock
49DS#-041041-6001FRONT LOWER FENDER
Usually ships in 7-10 business days
530006-060016870BOLT M6x16 | M6x16
10+ In-Stock
59DS#-041016-6000-0BM00FRONT RH DECO STRIP, Nebula Black
Usually ships in 7-10 business days
630110-421130010SELF TAPPING SCREW | ST4.2x13
10+ In-Stock
69DS#-041015-6000-0BM00FRONT LH DECO STRIP, Nebula Black
Usually ships in 7-10 business days
79DS#-041012-6000-0RH00FRONT DECO PLATE, Force Red | FROCE RED
Usually ships in 7-10 business days
79DS#-041012-6000-0HC00FRONT DECO PLATE, Velocity Grey | VELOCITY GREY
Usually ships in 7-10 business days
79DS#-041012-6000-0VE00FRONT DECO PLATE, Pearl White | NEBULA WHITE
Usually ships in 7-10 business days
78010-000002CLAMP ST4.2 | ST4.2
10+ In-Stock
79DS#-041012-6000-0RE00FRONT DECO PLATE, TT Camo | TRUE TIMBER CAMO
Usually ships in 7-10 business days
8A000-040302RUBBER DAMPER
Usually ships in 7-10 business days
89DS#-041032-6001FRONT RH SIDE STRIP
Usually ships in 7-10 business days
98030-040800-00001NUT CLIP M6 | M6
10+ In-Stock
99060-040310PUSH RIVET
10+ In-Stock
109DS#-041510-6000CLASP ASSY.
Usually ships in 7-10 business days
1030006-060070810BOLT M6x70 | M6x70
5 In-Stock
118030-040800-00001NUT CLIP M6 | M6
10+ In-Stock
119DS#-041023-6001DECO PLATE, DASHBOARD COVER
Usually ships in 7-10 business days
126NT1-041510BUCKLE
Usually ships in 7-10 business days
129DSV-041022-6003

(replaces part #
9DSV-041022-6002)

COVER, DASHBOARD
Usually ships in 7-10 business days
136090-040303BUSHING
10+ In-Stock
139DSV-041014-6K01

(replaces part #
9DSV-041014-6K00)

GUARD, RH HEADLIGHT
Usually ships in 7-10 business days
148010-000004BOLT M6×14 | M6x14
10+ In-Stock
146090-040302RUBBER DAMPER
10+ In-Stock
1530204-060810NUT M6 | M6
10+ In-Stock
159DS#-041011-6001HEADLIGHT PANEL
Usually ships in 7-10 business days
166NT1-041510BUCKLE
Usually ships in 7-10 business days
169DS#-042084-6000RH DECO PLUG, FRONT BUMPER
Usually ships in 7-10 business days
1730110-481130070

(replaces part #
30110-480130010)

SELF-TAPPING SCREW | ST4.8x13
10+ In-Stock
179DS#-042083-6000LH DECO PLUG, FRONT BUMPER
Usually ships in 7-10 business days
1830110-421130010SELF TAPPING SCREW | ST4.2x13
10+ In-Stock
186KJ0-030503RUBBER PLUG
Usually ships in 7-10 business days
196KM#-040702-8000INNER HEX SCREW M6x12
5 In-Stock
199DSV-041013-6K01GUARD, LH HEADLIGHT
Usually ships in 7-10 business days
209DS#-041031-6001FRONT LH SIDE STRIP
Usually ships in 7-10 business days
209DS#-041035-6001TRUNK
Usually ships in 7-10 business days
219DS#-043065-6001WATER-PROOF STRAP, FRONT STORAGE CASE
Usually ships in 7-10 business days
229DS#-041033-6002FRONT LH FENDER
Usually ships in 7-10 business days
239030-040013HINGE SHAFT,TRUNK
Usually ships in 7-10 business days
249030-040014COVER,HINGE SHAFT
Usually ships in 7-10 business days
2530110-420160010TAPPING SCREW | ST4.2x16
5 In-Stock
269030-040012HINGE SEAT,TRUNK
Usually ships in 7-10 business days
279DS#-041036-6000COVER, FRONT TRUNK
Usually ships in 7-10 business days
2830303-080112WASHER | 8
5 In-Stock
