2022 CFMOTO CFORCE 600 Steering System(Eps) OEM Parts Diagram

Submodel CF600AU-3S CFORCE 600 2022 True Timber Camo

Shop Aftermarket Parts

TO VIEW CFMOTO OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

STEERING SYSTEM(EPS)

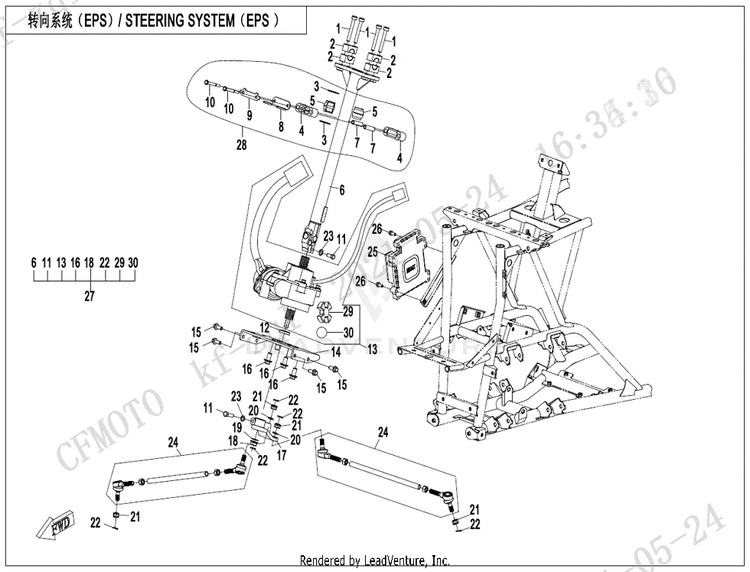

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
130102-080045810SCREW M8x45 | M8x45
Usually ships in 7-10 business days
29DSV-100001-6K01HANDLEBAR BLOCK
Usually ships in 7-10 business days
330502-032800NO-RING | 32x1.8
Usually ships in 7-10 business days
47020-100601-00001OUTER BUSHING, STEERING SHAFT SPHERICAL
Usually ships in 7-10 business days
57020-100602INNER BUSHING,STEERING SHAFT SPHERICAL
Usually ships in 7-10 business days
69DSV-102100-6R01STEERING SHAFT, EPS
Usually ships in 7-10 business days
77020-100604-00001BUSHING
Usually ships in 7-10 business days
87020-100610-10000LINKING PLATE ASSY
Usually ships in 7-10 business days
97020-100603LOCKING PIECE
Usually ships in 7-10 business days
1030003-080075810BOLT | M8x75
Usually ships in 7-10 business days
119CR6-102003BOLT M8X35 | M8x35
Usually ships in 7-10 business days
129CR6-103003SPLINE, SPACER
Usually ships in 7-10 business days
139DSV-150820-A200EPS MOTOR
Usually ships in 7-10 business days
149CR6-102200PLATE, STEERING STEM
Usually ships in 7-10 business days
1530006-080025810BOLT M8X25 | M8x25
Usually ships in 7-10 business days
1630006-103020810BOLT | M10x20
Usually ships in 7-10 business days
179CR6-102001STEERING ARM
Usually ships in 7-10 business days
1830204-122810NUT M12×1.25 | M12x1.25
10+ In-Stock
1930306-120112PLAIN WASHER | 12
Usually ships in 7-10 business days
2030306-100112WASHER | 10
Usually ships in 7-10 business days
219010-100002NUT M10×1.25 | M10x1.25
10+ In-Stock
2230903-0252610PIN 2.5×26 | 2.5x26
10+ In-Stock
2330303-080112WASHER | 8
5 In-Stock
249DS#-104100-6000STEERING TIE ROD
Usually ships in 7-10 business days
259DS#-150810-6100EPS CONTROLLER
Usually ships in 7-10 business days
2630006-060030810BOLT M6×30 | M6x30
Usually ships in 7-10 business days
279CR6-106000-20000EPS KIT
Usually ships in 7-10 business days
287020-1006A0BUSHING,STEERING STEM
Usually ships in 7-10 business days
299CR6-103301DAMPER, EPS
Usually ships in 7-10 business days
3030504-065800NO-RING
Usually ships in 7-10 business days
