2022 CFMOTO CFORCE 600 Left Crankcase Assy OEM Parts Diagram

Submodel CF600AU-3S CFORCE 600 2022 True Timber Camo

Shop Aftermarket Parts

TO VIEW CFMOTO OEM PARTS, PLEASE SIGN IN

Important message:

Please correct the information below:

Existing Account:



Forgot your password? Click Here.

Quick Log In:



Note: Password must be at least 6 characters in length and is case sensitive.


PLEASE SELECT A SUBMODEL

Some OEM parts vary between different machine specifications and paint schemes.
Choose your machine's submodel to help with fitment.

Submodels
Placeholder
SELECT MACHINE

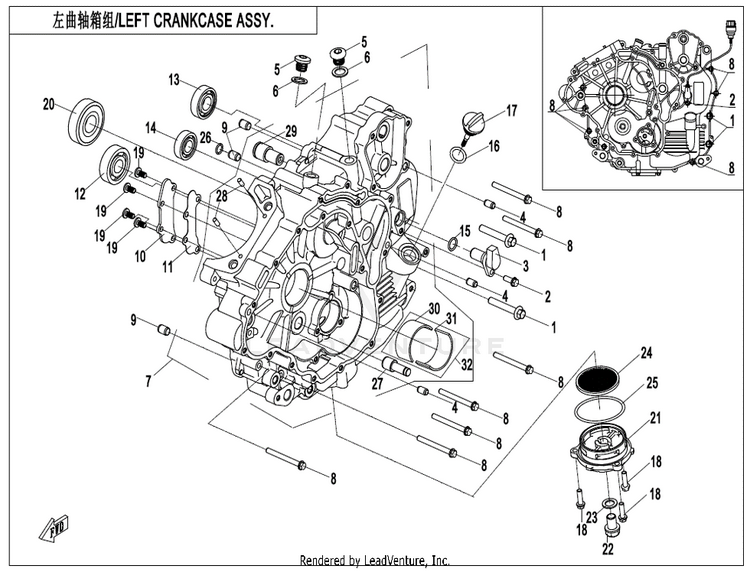

LEFT CRANKCASE ASSY

OEM Assembly Image

Click and drag to reposition image. Use mouse wheel to zoom in and out.

Shipping Notice
⚠ WARNING: Cancer and Reproductive Harm -

Get additional RM Cash on OEM purchases!

Select parts to add, then click
TagPart #DescriptionMSRPOur PriceStock StatusQtyAdd?
10040-012006-0010BOLT M8×50 | M8X50
Usually ships in 7-10 business days
20010-090005-0010BOLT M6×16 | M6x16
Usually ships in 7-10 business days
30GR0-011020SPEED SENSOR
Usually ships in 7-10 business days
40DM0-022201-10000

(replaces part #
0010-080008)

DOWEL PIN | Dia 8x14
Usually ships in 7-10 business days
50GR0-011003-00001

(replaces part #
0GR0-011003)

BOLT M14x1.5x12 | M14x1.5x12
Usually ships in 7-10 business days
60180-011006WASHER 14 | 14
10+ In-Stock
70GR0-011100-00002LH CRANKCASE ASSY
Usually ships in 7-10 business days
80010-011017-0010BOLT M6X60 | M6x60
Usually ships in 7-10 business days
90010-021005DOWEL PIN f 10×14 | Dia 10x14
10+ In-Stock
100GR0-011002OIL COVER PLATE
Usually ships in 7-10 business days
110GR0-011004OIL COVER PLATE GASKET
Usually ships in 7-10 business days
1230499-01700BEARING 6202 | 17
Usually ships in 7-10 business days
1330400-01704BEARING 6203 | 17
Usually ships in 7-10 business days
1430499-01500BEARING 6202 | 6202
Usually ships in 7-10 business days
1501A0-013005O-RING 13x2 | 13x2
Usually ships in 7-10 business days
160110-013030O-RING 18×3.55 | 18x3.55
9 In-Stock
170GR0-011005DIPSTICK, ENGINE OIL
2 In-Stock
180JWV-011107-3000

(replaces part #
0010-023010-0010)

BOLT M6x20 | M6x20
Usually ships in 7-10 business days
1930105-060012410SCREW | M6x12
Usually ships in 7-10 business days
2030400-02201ROLLING BEARING
Usually ships in 7-10 business days
210GR0-011001PLATE,OIL STRAINER
Usually ships in 7-10 business days
220110-013005-00001OIL DRAIN PLUG
9 In-Stock
230010-021014WASHER 12 | 12
10+ In-Stock
240GR0-011010OIL STRAINER
9 In-Stock
250800-014003O-RING 63×2.5 | 63x2.5
10+ In-Stock
2630502-010000NO-RING | 10x1.8
Usually ships in 7-10 business days
270GR0-011102SHAFT,DUALGEAR,OILPUMP
Usually ships in 7-10 business days
2830406-00500ROLLER PIN P 5×11.8 | P5x11.8
Usually ships in 7-10 business days
290GR0-011103INTERMEDIATE GEAR, REVERSE
Usually ships in 7-10 business days
300800-011102-00021PLAIN BEARING 1, Blue | BLUE@THICK
Usually ships in 7-10 business days
300800-011102-00011PLAIN BEARING 1, Red | RED@THIN
Usually ships in 7-10 business days
310800-011103-00011PLAIN BEARING 2, Red | RED@THIN
Usually ships in 7-10 business days
310800-011103-00021PLAIN BEARING 2, Blue | BLUE@THICK
Usually ships in 7-10 business days
320800-0111B0-00001MAIN PLAIN BEARING ASSY, Blue | BLUE
Usually ships in 7-10 business days
320800-0111A0-00001MAIN PLAIN BEARING ASSY, Red | RED
Usually ships in 7-10 business days
